Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light
  • Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light
  • Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light
  • Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light
Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light

Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-S804B
Product Details
Surface:
Polish/Painting/Coating
IP Rate:
68
Controlmethod:
Remote Control / Manual / Automatic Sensor
Moving Body Diamete:
219mm
Material Of Bollard:
304 Or 316 Stainless Steel
Embedded Cylinder Depth:
800mm
Surface Treatment:
Brushed Finishing/ Mirror
Fall Time:
≤2S
Up Time:
≤4S
Highlight:

Hydraulic Rising Bollard

,

LED Light Rising Bollard

,

Automatic Rising Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$250~US$350
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T,Western Union,credit card/Cash/Alipay,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description

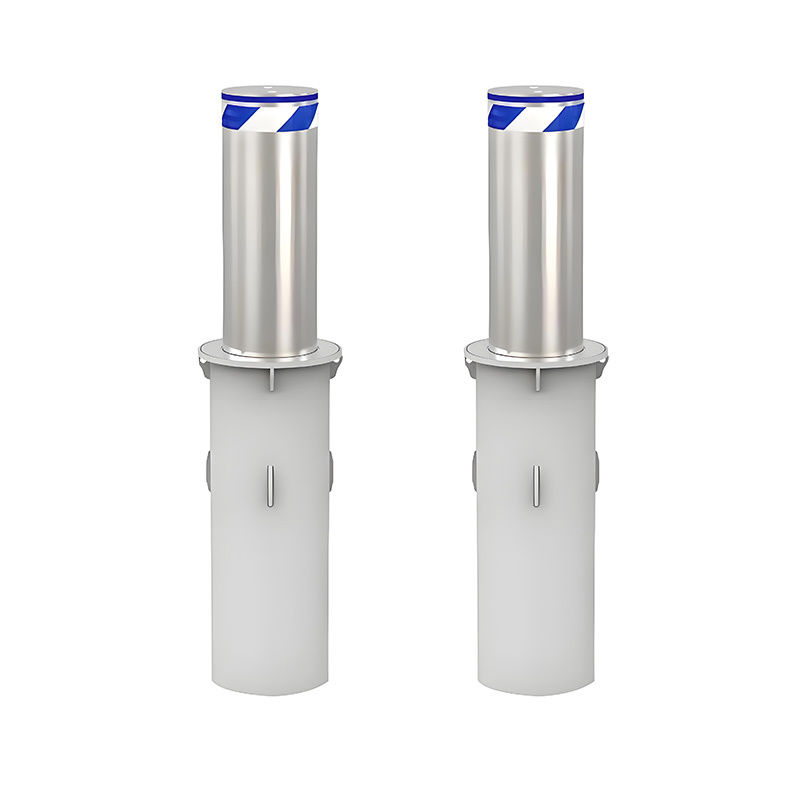

Integrated Hydraulic Automatic Rising Bollard
Featuring 304 Stainless Steel construction and integrated LED lighting, this hydraulic automatic bollard provides superior security and visibility for vehicle access control applications.
Product Overview
The hydraulic automatic bollard system consists of an oil pump unit and robust steel frame construction. Utilizing soil pressure as the driving force, it efficiently raises and lowers the bollard. Typically installed at vehicle entrances and exits, it rises to block unauthorized vehicles and lowers to ground level to permit authorized passage.
Key Features
  • Stainless steel anti-collision design with fully automatic lifting
  • Heavy-duty construction with waterproof design and nighttime reflectivity
  • One-click remote control operation with automatic lifting and lowering
  • Supports multiple linked switching configurations
  • Stable and durable performance with branded motor components
Hydraulic Bollard Advantages
  • Integrated motor and hydraulic pump with 220V power supply, underground installation with minimal surface impact and waterproof functionality
  • Peripheral embedded parts with bottom drainage holes for effective water management
  • Exceptional stability with over 10-year service life, outperforming traditional electric and pneumatic bollards
  • Steel track construction enhances anti-crash capability while stabilizing underground installation
  • Stainless steel material with reinforced hydraulic system, weighing 160kg for maximum impact resistance
Customization & Service Options
  • Multiple steel thickness options available (standard 6mm)
  • Various color customization possibilities
  • Custom sizing to meet specific project requirements
  • Multi functional control system ensures steady and safe operation
  • Rapid rising times with durable hydraulic pressure system
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capabilities
  • Enhanced security with superior anti-collision performance
  • Reflective band and low-energy LED lighting for nighttime visibility
Technical Specifications
Bollard Color Stainless steel original color
Raising/Lowering Speed ≤4S/≤2S
Diameter 219mm (168mm, 273mm, 324mm optional)
Raised Height 600mm(800~1000mm optional)
Material SS304(SS316 optional)
Control Mode Remote control (<50m)
System Control Hydraulic and electric control
Working Temperature -30℃～+75℃
Embedded Cylinder Depth 800mm
Lamp Band LED light (Acrylic light circle)
Power Supply 220V
Thickness 6mm (8mm/10mm/15mm/20mm optional)
Weight 60kg
Service Life More than 5 million cycles
Drainage Mode Natural drainage + External drainage system
Additional Features
High Security: Pneumatic air pump in control cabinet provides sustained high-power operation with electronic control for automatic rise/fall functionality and high system independence.
Reflective Band: Multiple color options available for Glossee aveolate reflective band; requires minimal light for clear nighttime visibility.
Material Options: Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Flange Design: Anti-skid flange with unique pattern design compatible with various road surfaces and built-in PA orientation.
Top Cap: Simple integration design compatible with various architectural styles, featuring excellent workmanship resistant to close attacks.
Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light 0
About SINOMATIC
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, our product range includes access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks, suitable for vehicle and personnel management in government buildings, commercial plazas, residential areas, stations, and customs checkpoints.
SINOMATIC maintains strong innovation and R&D capabilities with advanced technology and craftsmanship, leading the industry into the intelligent variable speed interconnection era. Our commitment to building an efficient R&D team drives continuous technological advancement and product innovation.
With global distribution across 150+ countries including United States, Canada, UK, Germany, Russia, and many others, SINOMATIC has established itself as a world-renowned brand in access control products, building trustworthy quality and representing Chinese manufacturing excellence worldwide.
