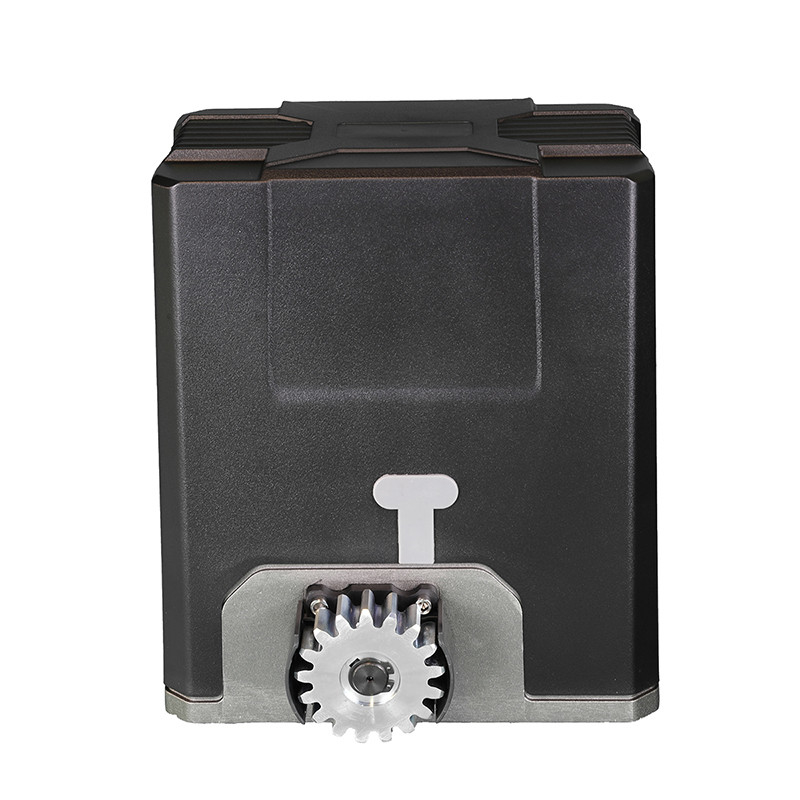

Residential Sliding Gate Opener PY500AC 220V 110V 600kg Automatic Sliding Gate Opener

Product description

PY500AC Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 600kg in weight, up to a length of 12m.

Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack (sold separately) fitted to the moving gate.

The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation. The opener must be fitted within private property, never externally to a property’s boundary.

Technical specifications

Main Features:

AC motor with built-in control unit.
Keypad / single button interface.
Alarm lamp, photo beam & safty beam interface.
User can select auto-close function.
Soft start and slow stop. (Smart version)
Auto-reverse function when hitting obstacle during closing. (Smart version)
Manual key release design for emergency purposes.

Standard Unit:

Gate Motor
Control board & box
2pcs remote controls
Manual release key
User manual
Bolts & nuts

FUNCTIONS AND FEATURES
* Oil lubrication, generous appearance, heavy duty.
* Compact structure, cost-effective.
* Built in control board or separately control box.
* Keypad / single button interface.
* Alarm lamp, Photo beam & safety beam interface.
* User can select auto-close function.
* Optional for spring limit switch and magnetic limit switch
* Manual key release design for emergency purposes.
* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
* Installation accessories

Optional Accessaries

• Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length accordig to your gate length;
• Photo beam sensor;
• Keypad systems;
• Push button;
• Warning light;

About our company

SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, locates in Shenzhen China, is a high-tech enterprise integrating R&D, production and sales. Main product lines include: Pedestrian access control turnstile, Vehicle barrier gate, hydraulic road bollard and blocker, Automatic gate operator etc. Our products are widely used in places wherever access control is needed, such as government organs, army, schools, hospital, airports, terminals, tourist attractions, parking lot. So far, company products have been exported to more than 100 countries, like Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, Kenya etc. Stable function and excellent performance is the product R&D purposes. Offering most affordable price to customers is the product design concept. Our goal is to establish a win-win situation and long-term cooperation relationship with all our customers and partners.

WARNING
Instructions must be read before installation. Please follow these instructions carefully, incorrect installation could affect gate operation.

When mounting and positioning this product please ensure the power cable is unplugged. The motor cover will need to be removed to mount the motor to the mounting plate or directly to the concrete footing. Any changes to the settings on this product can only be made by a licensed electrician. This product is only powered by AC110V/220V power supply; DC backup battery or solar power is not compatible

For more details, please refer to the below user manual

PY500AC User Manual.pdf
