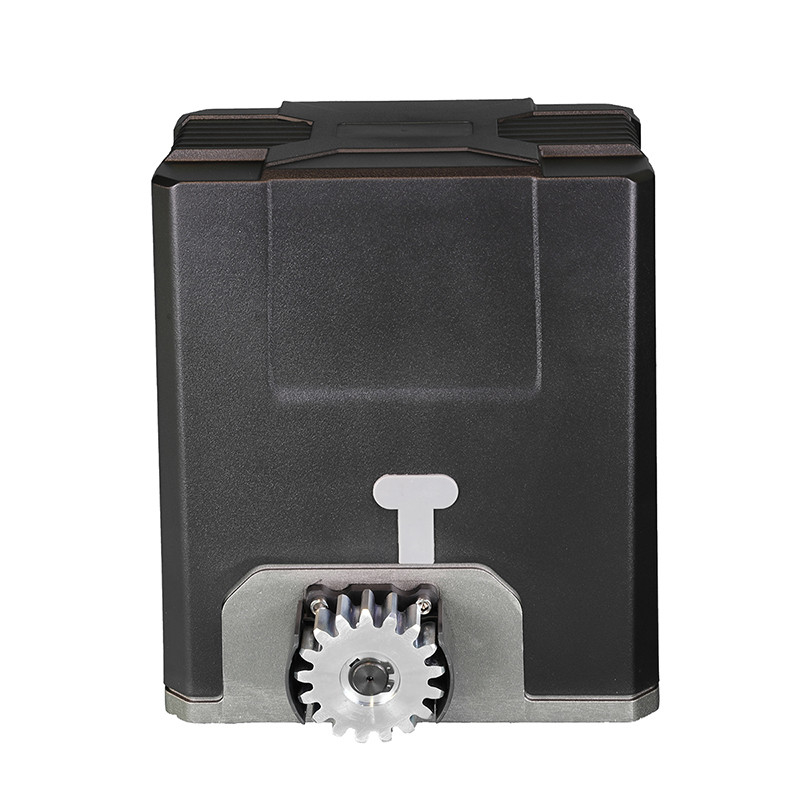

PY500AC 220V 110V 600kg Automatic Sliding Gate Opener The Ultimate Residential Solution
  • PY500AC 220V 110V 600kg Automatic Sliding Gate Opener The Ultimate Residential Solution
  • PY500AC 220V 110V 600kg Automatic Sliding Gate Opener The Ultimate Residential Solution
  • PY500AC 220V 110V 600kg Automatic Sliding Gate Opener The Ultimate Residential Solution

PY500AC 220V 110V 600kg Automatic Sliding Gate Opener The Ultimate Residential Solution

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PY500AC
Product Details
Highlight:

220V Automatic Sliding Gate Opener

,

110V Automatic Sliding Gate Opener

,

600kg Automatic Sliding Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
10,000 pcs per month
Product Description
PY500AC 220V/110V 600kg Automatic Sliding Gate Opener
The ultimate residential solution for automated gate operation
Product Overview
The PY500AC Sliding Gate Automation Kit is engineered to power the opening and closing motion of gates up to 600kg in weight and 12m in length. Gate movement is achieved through the rotating output gear driving the gear rack (sold separately) attached to the moving gate. Operation requires a single press of the remote control to open and another to close, ensuring safe operation. The opener must be installed within private property boundaries.
Technical Specifications
ModelPY500AC
Power Supply220V/50Hz; 110V/60Hz
Max. Gate Weight600KG
Motor Power280W
Gate Moving Speed11-13 m/min
Limit SwitchSpring (mechanical) / magnetic
Recording of up Remotes20 pcs / 44 pcs
Decoding / FrequencyRolling code / 433.92MHz
Work DutyS2 20min
Noise≤58dB
Work Temperature-20°C~70°C
Main Features
  • AC motor with built-in control unit
  • Keypad / single button interface
  • Alarm lamp, photo beam & safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (Smart version)
  • Auto-reverse function when hitting obstacle during closing (Smart version)
  • Manual key release design for emergency purposes
Standard Unit Includes
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
Additional Functions
  • Oil lubrication, heavy-duty construction
  • Compact structure, cost-effective design
  • Built-in control board or separate control box
  • Optional spring limit switch and magnetic limit switch
  • Automatic stop when hitting obstacle during opening
  • Complete installation accessories
PY500AC 220V 110V 600kg Automatic Sliding Gate Opener The Ultimate Residential Solution 0
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
About Our Company
SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen China, is a high-tech enterprise integrating R&D, production and sales. Our main product lines include: Pedestrian access control turnstiles, Vehicle barrier gates, hydraulic road bollards and blockers, and Automatic gate operators. Our products are widely used in locations requiring access control, including government facilities, military installations, schools, hospitals, airports, terminals, tourist attractions, and parking lots. Company products have been exported to over 100 countries worldwide, including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, and Kenya. Our product development focuses on stable function and excellent performance, while offering the most affordable prices to customers. Our goal is to establish win-win situations and long-term cooperation relationships with all customers and partners.
Important Safety Notice
Instructions must be read before installation. Please follow these instructions carefully, as incorrect installation could affect gate operation. When mounting and positioning this product, ensure the power cable is unplugged. The motor cover must be removed to mount the motor to the mounting plate or concrete footing. Any changes to product settings must be made by a licensed electrician. This product is only compatible with AC110V/220V power supply; DC backup battery or solar power is not supported.
Documentation
Download PY500AC User Manual (PDF)
