Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates
  • Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates
  • Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates
Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates

Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Ambient Temperature:
-20--60℃
Unlock Time:
0.2s
Product Size:
480*280*990mm
Thickness:
1.5mm
Humidity:
＜95%
Steel Thickness:
1.2mm-1.5mm
Port:
Shenzhen
Work Environment:
Indoor And Outdoor
Rotating Direction:
Double Direction
Passing Mode:
Single Or Bi-directional
Protection Class:
IP54
Arm Turning:
Uni-direction Or Bi-direction
Fire Alarm Interface:
Available
Highlight:

Passage Control Electronic Turnstile Gates

,

Electronic Security Barrier Gate

,

Compact Design Security Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Wechat, Paypal, Cash
Supply Ability
3,000 pcs per month
Product Description

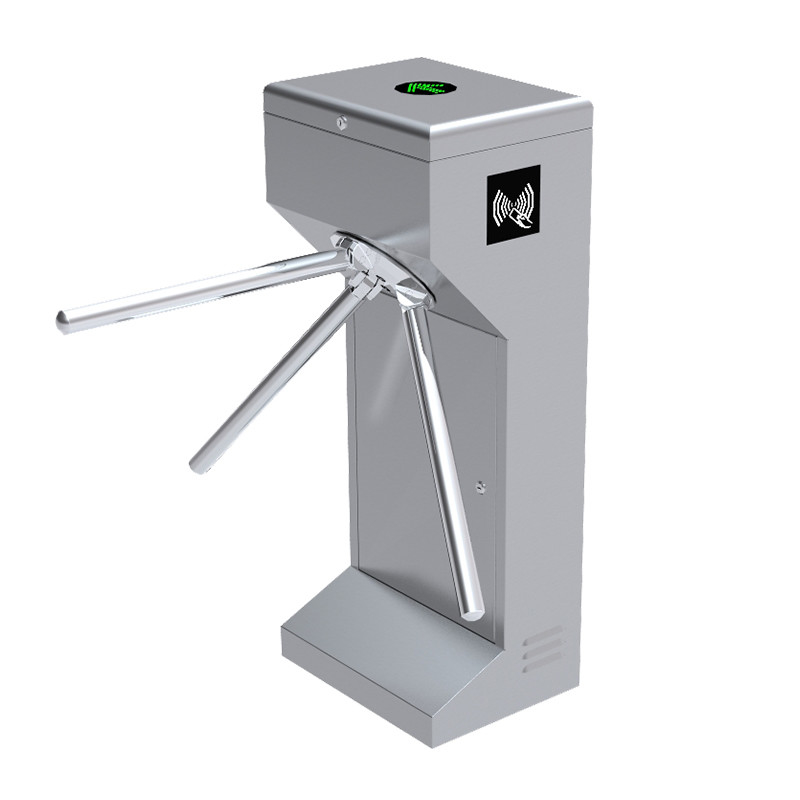

Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates
Our Tripod Turnstiles are engineered to allow only one person to pass at a time, providing efficient security control to prevent unauthorized access and restrict prohibited materials from entering secured premises.
These turnstiles restrict passage exclusively to individuals who insert or scan valid credentials such as tickets, ID cards, or access cards. This makes them ideal for paid access applications in public transport systems and for restricting access to authorized personnel in corporate buildings and facility entrances.
Key Features
  • Space-efficient security barriers with compact dimensions: 480mm x 280mm x 980mm
  • Bi-directional passage control capability
  • Built-in anti-trailing design - automatic locking at 60° rotation prevents reverse movement
  • Exceptional durability with minimal maintenance requirements for millions of trouble-free passages
  • Versatile applications including stadiums, arenas, perimeter security, amusement parks, retail crowd control, transit fare collection, and building lobbies
  • People monitoring and counting functionality
  • Sleek pillar and bridge type tripod turnstile design for smooth pedestrian flow control
  • Easy installation and integration with existing systems
  • Steady and noiseless operation
  • Fail-safe safety solution with automatic arm dropping during emergencies or power failures
  • Housing available in stainless steel 304 and 316 grades
  • Shock absorber feature with heavy 1.2mm housing thickness
  • Available in both automatic and manual versions
Secure Access Control Solutions
Turnstiles provide superior security for controlling pedestrian access to buildings, offices, and public outdoor areas. Whether enhancing building entrance security or managing pedestrian flow, our turnstile systems are designed to meet your specific requirements.
Technical Specifications
Description Parameter
Power Supply Input AC220/110V (± 10%)
Power Voltage 24 V DC
Power Consumption During Idle AC: 0.07 Amp DC: 0.16 Amp
Power Consumption During Operation AC: 0.02 Amp DC: 0.72 Amp
Passage Width 60 cm
Response Time 0.3 second
Pass Speed 30 persons per minute
Housing / Arm 304 Stainless Steel
Internal Mechanism Mild Steel
Arm Disc Alloy chromed
Working Temperature -25℃ to 60℃
Advanced Functionality & Features
  • Mechanical drive unit eliminates expensive electric motors and reduces maintenance costs
  • Heavy-duty solenoid lock mechanism ensures extended lifespan and minimal maintenance
  • Configurable bi-directional or uni-directional operation
  • Built-in acrylic plate for seamless integration with other security devices
  • Intelligent arm rotation system with automatic positioning
  • Adjustable tension spring for optimal auto-rotation force control
  • DC operation with built-in circuit breaker protection against electrical surges
  • Advanced anti-tailgating with smart lock mechanism and configurable time delays (5, 10, 15, 60 seconds)
  • Automatic arm dropping during power failures for emergency free passage
  • Key-locked internal components to prevent tampering
  • Built-in LED direction indicators
  • Light-touch operation suitable for all users including elderly and children
Space Efficient Security Barrier Gate Compact Design Bi-Directional Passage Control Electronic Turnstile Gates 0
Why Choose SINOMATIC
  • Over 20 years of OEM/ODM experience in access control turnstiles, barriers, and road blockers
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders accepted for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options including sea shipment, air cargo, and express delivery
  • Factory visits welcome on working days
