200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
  • 200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
  • 200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
  • 200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz

200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SW200DC
Product Details
Limit Switch:
Stop Block
Safety Clutch:
Electronic Current Sensing
Voltage:
220V / 110V
Control System:
Microprocessor-based
Package Weight:
15KG
Pull Arm:
Open Inside
Work Temperature:
-20°C~70°C
Opening Time:
3~7s / 90°
Remote Control:
Yes
Highlight:

200kg / Leaf Swing Gate Motor

,

433.92MHz Swing Gate Motor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Paypal, Credit card
Supply Ability
10,000 pcs per month
Product Description
200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
Product Overview

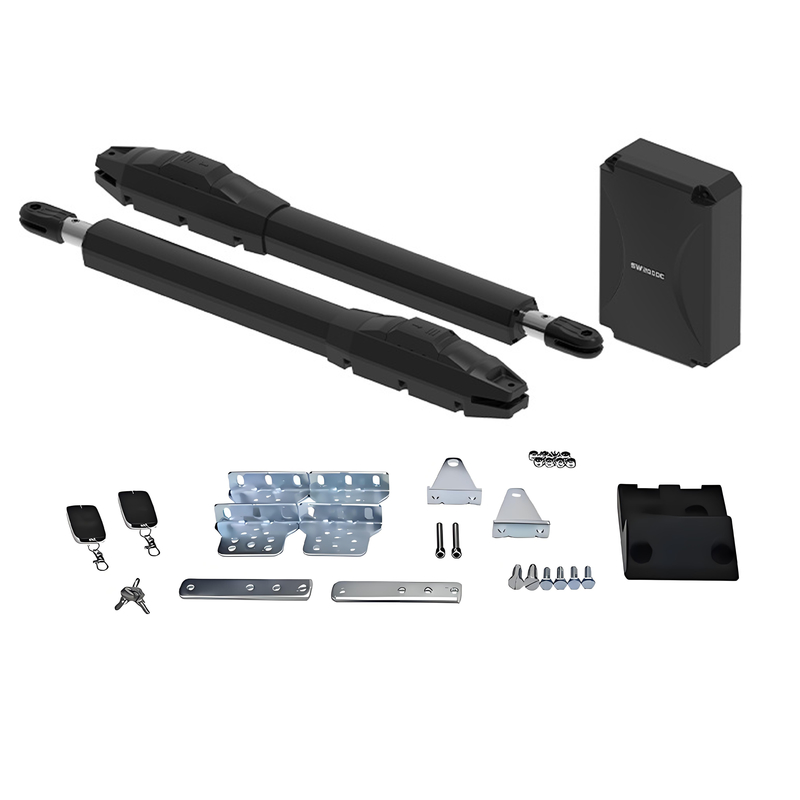

The SW200DC swing gate opener is designed for single-leaf gates weighing less than 200kg with a maximum length of 2 meters. Featuring a combination of planetary transmission and screw rod drive mechanism, this motor must be installed within an enclosure or yard for optimal protection and performance.
Technical Specifications
Model SW200DC
Power Supply 220V/50Hz; 110V/60Hz
Motor Power 30W
Gate Moving Speed 18-22 seconds per 90°
Max Single-Leaf Weight 200kg
Max Single-Leaf Length 2M
Max Force 2200N
Max Piston Stroke 32cm
Remote Control Distance ≥30m
Remote Control Mode Single/Four Button Mode
Storage Battery (Optional) DC24V (4.5Ah or 9Ah)
Noise Level ≤58dB
Remote Control Capacity 32 units
Remote Frequency 433.92 MHz
Working Temperature -20°C to +70°C
Package Weight 15kg
Product Features
  • DC Motor with backup battery support (DC24V 4.5AH/9.0AH)
  • Optional single or double gate operation modes
  • Obstacle detection with automatic reversing and no limit switch requirement
  • Automatic closing function with adjustable timing (0-99 seconds)
  • Smooth operation with soft start and stop technology
  • Emergency manual release mechanism
  • Integrated alarm lamp, photo beam and safety beam interfaces
  • Compatible with access control systems for automated identification
Key Advantages
  • Soft start and slow stop operation with automatic obstacle detection
  • Multiple interface support for GSM, infrared sensors, alarm lights, and wall buttons
  • Backup battery compatibility for uninterrupted operation
  • Solar panel integration capability
  • Durable aluminum shell with stainless steel arm construction
  • Separate control unit for simplified installation
200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz 0
Customer Service & Support
  • 24-hour response time for all inquiries
  • 15+ years of professional automatic door solutions expertise
  • OEM manufacturing services available
  • High quality products with competitive pricing
  • Comprehensive after-sales service including 1-2 year warranty
  • Strict quality control and professional packaging
  • In-stock availability with fast delivery options
Documentation
Download SW200DC User Manual
