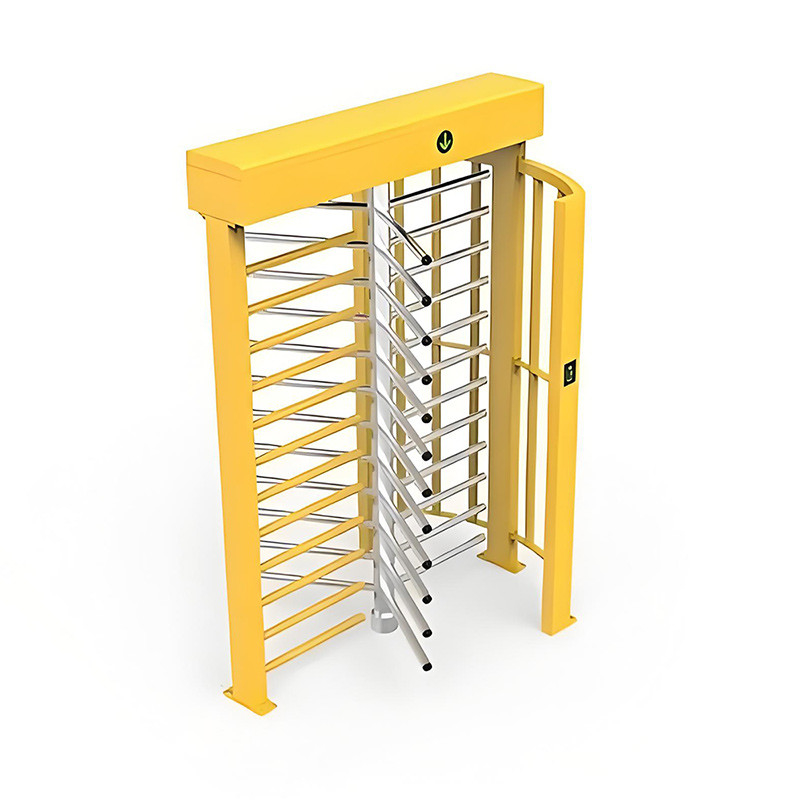

Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management
  • Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management
  • Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management
  • Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management
Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management

Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Surface Treatment:
Brushed/Painting
Driving Method:
Solenoid Mechanism
Anti-Tailgating Function:
Yes
Package:
Wooden Crate
Size:
Standard Or Customized
Temperature:
-20℃ To 60 ℃
Operating Time:
1s
Operational Voltage:
24V(DC)
Transit Speed:
30 Persons/minute
Motor:
120 Or 90 Degree Full Height Movement
Shipment:
Sea, Air
Product Size:
1500*1343*2300mm
Access Control:
RFID/IC/Barcode/Fingerprint
Highlight:

Customized Full Height Turnstile

,

Single Person Entry Full Height Turnstile

,

Maximum Security Full Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union,,Alipay,Visa,Mastercard,PAYPAL,APPLE_PAY,GOOGLE_PAY
Supply Ability
3,00 pcs per month
Product Description
Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management
What are Full Height Turnstiles?
Full height turnstile gates provide the highest level of security by spanning from ceiling to floor, making them extremely difficult to bypass. These robust barriers prevent jumping over or crawling under, ensuring comprehensive access control.
These turnstiles effectively manage single-person entry through rotating metal arms that prevent multiple entries. The automatic locking system activates immediately after each authorized passage, maintaining continuous security.
Full height turnstiles can operate as standalone security gates or integrate seamlessly with comprehensive security systems. When equipped with access control devices, they eliminate the need for security personnel while providing reliable protection.
Benefits of Full Height Turnstiles
Turnstile Design and Operation
Full-height turnstiles feature three or four-arm barrier systems that open for authorized passage and automatically close to prevent unauthorized access, significantly enhancing security levels.
Aesthetics and Durability
Constructed from robust materials with aesthetic designs, these turnstiles combine functionality with visual appeal, seamlessly blending into their installation environments.
Security and Passage Control
Engineered for maximum security, full-height turnstiles prevent unauthorized access while allowing smooth passage for authorized individuals, providing effective access control for businesses and public spaces.
Applications of Full-Height Turnstiles
Ideal for high-traffic environments including stadiums, airports, business centers, shopping malls, and large event venues where robust pedestrian access control is essential.
Why Choose Full Height Turnstiles for Access Control
Full-height turnstiles offer superior security advantages over tripod turnstiles, providing enhanced access control through taller, more robust construction with advanced biometric and RFID integration capabilities.
Built for exceptional durability and reliability, these stainless steel turnstiles withstand harsh weather conditions and heavy usage, significantly outlasting tripod counterparts.
Main Functions and Features
  • High-security access control solution for critical environments
  • Durable construction using mild steel with painting (color optional) or 304 stainless steel for anti-rust protection and high resistance
  • Suitable for both indoor and outdoor installations
  • Automatic unlock (default) or lock (optional) during power failure to meet fire-control passage requirements
  • Anti-reverse function prevents direction reversal
  • High-quality hydraulic damper ensures smooth, quiet operation
  • Self-test function automatically restores gate system when power is activated
  • Superior security compared to other turnstile types
  • Single directional or bi-directional operation options
  • LED directional indicator lights on both entry and exit sides
  • Standard connection interfaces compatible with all third-party access control systems
  • Customizable size and design based on client specifications
  • Optional remote controller and computer management capabilities with access control integration
  • Adjustable configurations to meet specific location requirements
Technical Specifications
ITEM SPECIFICATIONS
Power voltage AC100V~240V
Arm turn degree 120 degree or 90 degree rotation arms
Driving voltage DC24V
Operation condition -20℃~60℃
Material Mild steel /304 drawing stainless steel
Material thickness 1.5mm
Humidity ≤95%; None-condensation
Turn direction Bidirectional or unidirectional (Optional)
Input Open signal or 12V pulse>100ms
Work environment Indoor/Outdoor
Working Current ≤2000mA
IP level IP54
Standard barrier length 550mm
Channel width 600mm
Pass speed ≤35 person/minute
Service life ≥5 million times
Customized Full Height Turnstile for Maximum Security and Single-Person Entry Management 0
Our Factory
SINOMATIC adheres to innovation as we believe that innovation is always the booster for growth. Through investing in product development, we push forward the innovation in design and technology.
Only by being concentrated can we become professional. As a pioneer, SINOMATIC is working conscientiously and stick to the "one single product" strategy.
