Advanced Access Control for Building and Office Security Tripod Turnstile Gate
  • Advanced Access Control for Building and Office Security Tripod Turnstile Gate
  • Advanced Access Control for Building and Office Security Tripod Turnstile Gate

Advanced Access Control for Building and Office Security Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Highlight:

Advanced Access Control Tripod Turnstile Gate

,

Building Security Tripod Turnstile Gate

,

Office Security Tripod Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000 pcs per month
Product Description
Advanced Access Control for Building and Office Security Tripod Turnstile Gate

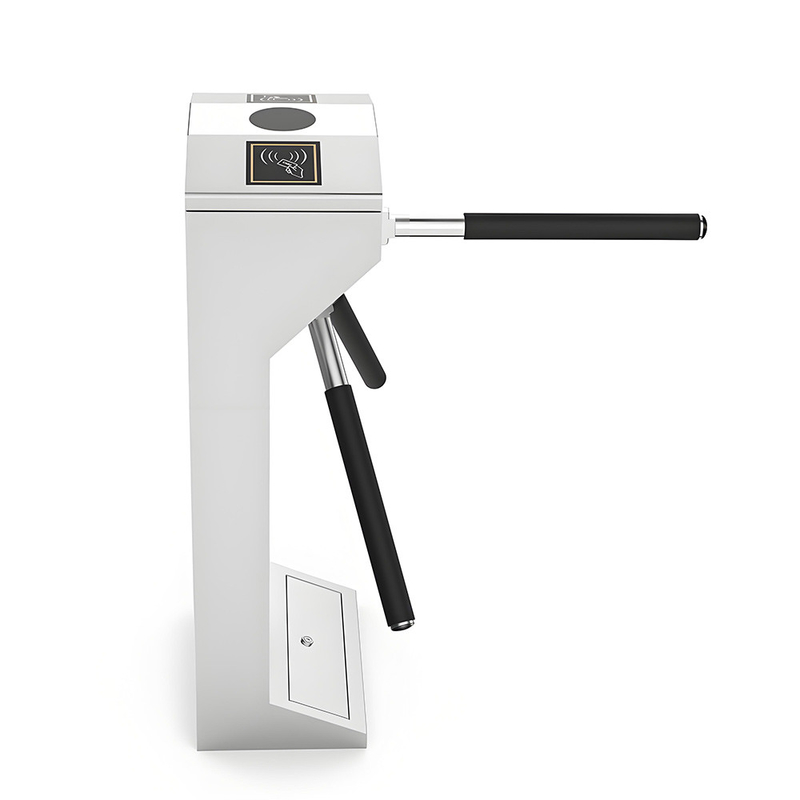

Tripod turnstile consists of a hub and three pods attached to a stable body. Known for ease of use, compactness, and reliability, tripod turnstiles are widely installed in educational institutions, enterprises, office centers, and various facilities. These access control systems are designed to manage and restrict pedestrian access, with customizable control methods including ACS, QR and barcode scanning, face and fingerprint recognition, and more.
Tripod Design Features
The tripod turnstile represents the simplest and most efficient type of turnstile design. Its compact dimensions allow installation in narrow corridors, while exceptional durability and operational reliability make it ideal for high-traffic environments such as schools, universities, factories, and commercial facilities.
Secure Access Control Solutions
Turnstiles provide effective security solutions for controlling pedestrian access to buildings, offices, and public outdoor areas. Whether enhancing building entrance security or managing pedestrian flow, our turnstile systems offer tailored solutions to meet your specific requirements.
Technical Specifications
Description Parameter
Power Supply Input AC220/110V (± 10%)
Power Voltage 24 V DC
Power Consumption During Idle AC: 0.07 Amp DC: 0.16 Amp
Power Consumption During Operation AC: 0.02 Amp DC: 0.72 Amp
Passage Width 60 cm
Response Time 0.3 second
Pass Speed 30 persons per minute
Housing / Arm 304 Stainless Steel
Internal Mechanism Mild Steel
Arm Disc Alloy chromed
Working Temperature -25℃ - 60℃
Main Functions and Features
  • Mechanical drive unit eliminates expensive electric motors and reduces maintenance costs. Heavy-duty solenoid lock mechanism ensures longer lifespan and minimal maintenance.
  • Configurable for bi-directional or uni-directional operation. Built-in acrylic plate facilitates easy integration with other security devices.
  • Smart rotation system: auto-rotates to next idle position if arm rotates more than half, or returns to current position if rotated less than half. Adjustable tension spring controls rotation force.
  • DC operation with built-in circuit breaker protection against electrical surges.
  • Anti-tailgating feature with limit switch detection and configurable time delays (5 sec, 10 sec, 15 sec, 60 sec).
  • Power failure mode: arms drop automatically for free passage. Internal components secured with key-locked housing to prevent tampering.
  • Built-in LED direction indicators. Light push operation suitable for all users including elderly and children.
Advanced Access Control for Building and Office Security Tripod Turnstile Gate 0
