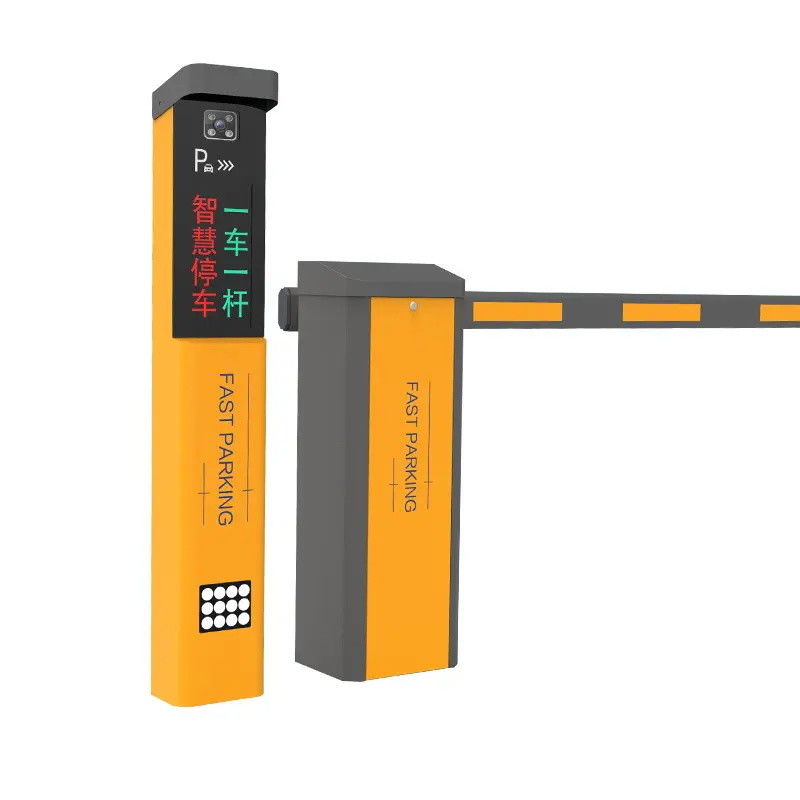

IP54 Protection Grade Automatic Barrier Gate with 3rd Generation Brushless Motor and 3-6m Boom Length

PRODUCT OVERVIEW

Thank you for purchasing the 3rd generation brushless motor barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology and brushless control speed regulation technology. The arm left and right interchangeable quickly. No clutch design is convenient to use. The movement adopts two-stage worm gear drive, curved crank with three-link structure, the speed of opening and closing is fast and stable. Easy maintenance and long service life.

TECHNICAL SPECIFICATIONS

PRODUCT ADVANTAGES

1. Advanced mechatronics side-mounted design concept: structure compact,quickly assembly,easy maintenance.

2. Molding production: high precision, fast efficiency and guaranteed quality.

3. Worm-gear secondary variable speed transmission: high precision, long lifetime, motor wheel design, gate opening by manually when power off, no blocking, no oil leakage, large torque, low noise, can normally operation at the temperature of -35 °C etc.

4. DC brushless motor design:low consumption, high efficiency, no overheat, wide speed adjustment.

5. Hall limit:automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at speed and stable.

6.Curved triple connecting rod structure design concept, makes arm in vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently.

7.Arm direction quickly interchanged: interchanged according to different directions on construction site, reduce inventory and capital pressure.

8.Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply, adapt to global voltage, safe and reliable.

PRODUCT MECHANISM

MAIN FUNCTION AND FEATURES

1. The running speed can be adjusted from 1.5s to 6s

2. Can be quickly interchanged
3. Open the barrier gate by motor wheel when power off ,automatically reset after power on
4. Curved crank arm three- link movement structure, the operation is stable
5. Wireless remote control control open/close
6. Auto reverse function(force adjustable)
7. Infrared photocells connector is available
8. Loop detector connector is available.
9. Well-integrated with car parking system equipment,with wire control(must be switch signal)
10. Connector for traffic light(AC220V, power less than 40W)
11. Offering dry contact signal for car parking system(COM,NC,NO)
12. Auto-delay when closing(adjustable)
13. RS485 or CAN network communication interface(no need to install module)
14. Counting interface
15. 24V backup battery interface(Can be charged by using solar energy)( optional)

OUR SERVICE

1 One year’s free servicing is supplied(not including the arm);

2 Lifetime charged servicing is offered;

3 Technology servicing is supplied.

The following situations are charged for servicing(or changing):

1 Broken by the wrong installation.

2 Broken by improper voltage.

3 The surfaces of the system destroyed by wrong installation or use.

4 Broken by natural disaster.

5 Overdue.

6 Servicing items out of our promises.

PRODUCT MAINTENANCE

1 Keep the barrier gate clean

2 Check the joints ever month in case of any loose parts.

3 Check the spring elasticity after the barrier gate running 3000 times.

4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.

5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
