24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance
  • 24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance
  • 24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance
  • 24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance
24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance

24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-830
Product Details
Highlight:

Easy Installation Automatic Barrier Gate

,

Brushless Motor Automatic Barrier Gate

,

24VDC Automatic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
US$250~US$300
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Paypal, Credict card
Supply Ability
3,000 pcs per month
Product Description
24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate
Designed for easy installation and maintenance, this advanced automatic barrier gate system offers superior performance and reliability for traffic control applications.
Main Functions and Features
  • Adjustable operation speed with customizable slow up and slow down settings
  • Adjustable limit angle with quick left/right direction interchange capability
  • Manual barrier arm operation during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input function
  • Loop detector and radar I/O signal anti-collision input
  • Up, down, and stop I/O signal input functionality
  • Counting (fleet) function for traffic management
  • LED light I/O signal output function
  • Traffic light I/O signal output function
  • Up/down position detection with normally open/closed signal output
  • RS485 communication output for system integration
  • Delay arm drop and automatic reverse functions
  • Automatic lifting during power outages (requires power storage module)
  • 10-port single-key cycle up/down operation
  • Loop detector normally open/closed functionality
  • Anti-collision alarm system (alarm and sensor accessories required)
  • Fire linkage signal input for emergency systems
  • I/O port close signal input function
  • 24V storage battery input compatibility
Technical Specifications
Model DZ-830
Cabinet Size 343 × 300 × 950 (mm)
Working Temperature -35℃ to +65℃
Power Supply DC24V; AC110V/220V, 50/60 Hz
Open/Close Speed 1.5-6 seconds (Adjustable)
Rated Power 160W
Driving Method DC brushless motor
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Motor No-load Speed 1850 rpm
Maximum Boom Length 3-6 meters
Product Advantages
  • Advanced Mechatronics Design: Compact side-mounted structure for quick assembly and easy maintenance
  • Precision Manufacturing: Molding production ensures high precision, fast efficiency, and guaranteed quality
  • Worm-Gear Transmission: Secondary variable speed with high precision, long lifetime, and manual operation capability during power outages
  • DC Brushless Motor: Low power consumption, high efficiency, no overheating, and wide speed adjustment range
  • Hall Limit Technology: Automatic limit detection without debugging, continuous motor speed monitoring for stable operation
  • Curved Triple Connecting Rod: Innovative design maintains arm in vertical/horizontal positions with easy balance adjustment
  • Direction Flexibility: Quick left/right direction interchange to accommodate different construction site requirements
  • Advanced Controller: Integrated chip drive with fast processing, large memory, and 24V low voltage power supply for global compatibility
Product Images

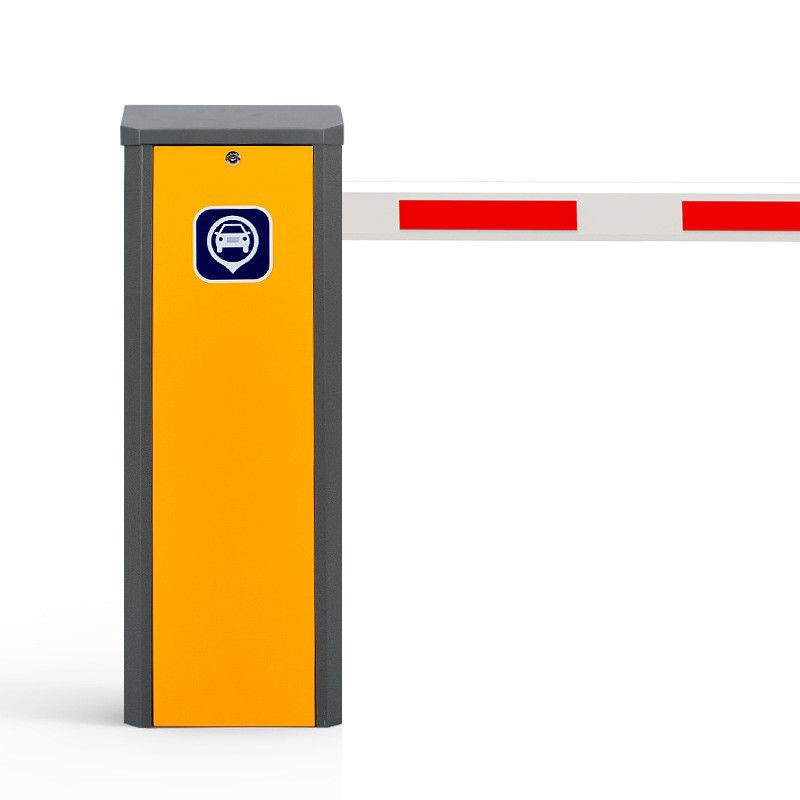

24VDC RS485 Traffic Light Output Brushless Motor Automatic Barrier Gate for Easy Installation and Maintenance 0
