Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate
  • Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate
  • Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate
  • Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate
Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate

Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Material:
SS304
Control Signal:
Dry Contact/Wet Contact DC12V
Power Supply:
AC100V~240V
Packing:
Carton/ Wooden Box
Direction:
Bi-directional
Control Method:
Reader, Fingerprint, Face Reg Etc.
Highlight:

Wet Contact Tripod Turnstile Gate

,

Security Tripod Turnstile Gate

,

Access Control Entrance Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000 pcs per month
Product Description
Security Tripod Turnstile with Access Control
This semi-automatic tripod turnstile integrates mechanical, electrical, and microcontroller systems with various identification technologies. Compatible with IC, ID, barcode, and fingerprint readers, it provides intelligent flow control and management. Designed for durability and corrosion resistance, it ensures orderly pedestrian passage while preventing unauthorized entry or exit. Features smooth operation, low noise levels, and automatic arm drop during emergencies.
Technical Specifications
Framework 304 Stainless Steel
Dimensions 1200 × 280 × 990 mm
Work Voltage AC100V~240V
Core DC24V solenoid valve
Arm Length 500mm
Max Bearing Force 50kg
Rated Power 120W
Operating Temperature -25℃ ~ +60℃, RH ≤90%
Related Humidity ≥90%RH
Communication Interface RS485, distance ≤1200m
Opening Transit Speed 30-40 persons per minute
Emergency Feature Auto drop arm when power off
Main Functions and Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation to next idle position when arm rotates more than half; returns to current position when rotated less than half
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation; light push operation suitable for all ages
  • Configurable bi-directional or uni-directional operation; tamper-resistant housing with special key lock
  • Innovative mounting surface ensures simple and convenient installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint readers (access controller required)
  • Automatic reset function cancels user authority if passage not completed within prescribed time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for noise-free, impact-free operation
  • Auto-reposition function locks turnstile if passengers don't pass within regulated time period after card read
  • Automatic arm drop during power failure for emergency access
Why Choose Our Security Turnstiles
  • OEM/ODM experience in access control turnstile and barrier manufacturing
  • Prompt delivery with standard model inventory maintained for immediate shipment
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery based on client needs
  • Factory visits welcome during working days for client inspection

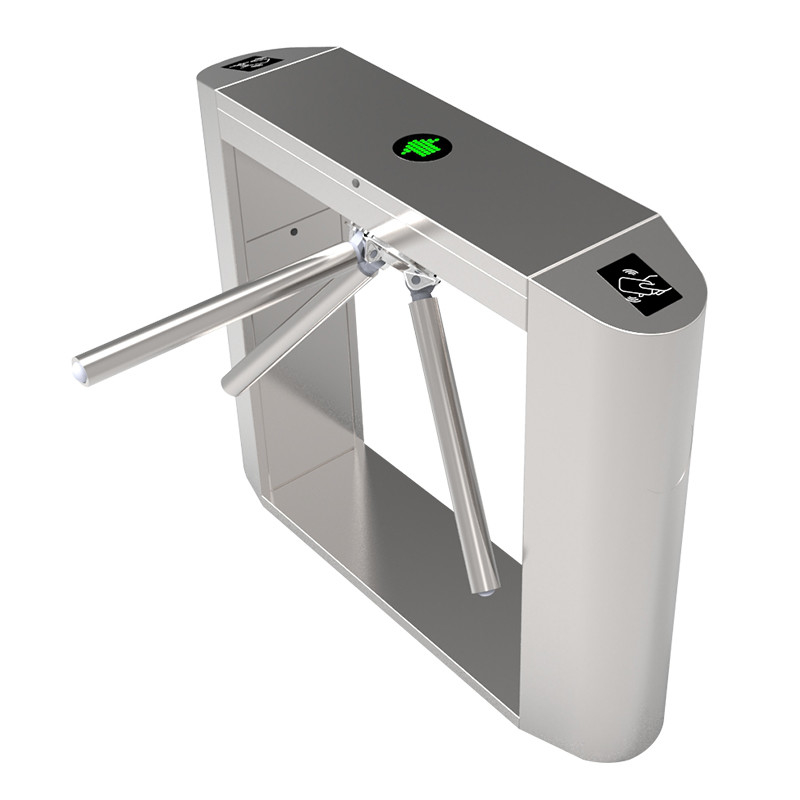

Security Tripod Turnstile Dry Contact Wet Contact Access Control Entrance Barrier Gate 0
