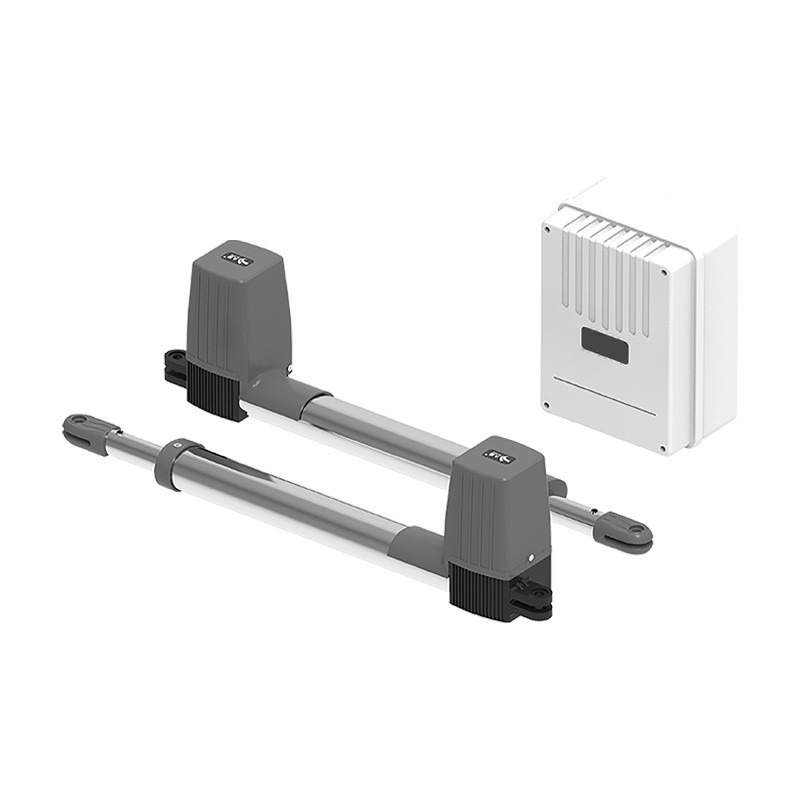

PK300DC/PK350DC Swing Gate Opener Electric Remote Control Tuya Wifi Interface

China Manufacturer 300KG Weight 2.5 Meter Length Per Leaf 80W 24V DC Motor Swing Gate Opener

The PK300DC/PK350DC gate opener is designed for residential courtyard swing gate use, supporting gate leaf weight up to 300 Kg and width up to 2.5m/3m. Features DC motor technology with compact structure, smooth operation and low noise.

• Optional stroke lengths: 29 cm and 49 cm
• Separate control box design
• Keypad / single button interface
• Alarm lamp, photo beam & safety beam interface
• User-selectable auto-close function
• Mechanical stops installed inside opener to eliminate ground stops
• Adjustable fixing limit block
• Manual key release for emergency purposes
• Automatic stop when hitting obstacles during opening
• Auto-reverse when hitting obstacles during closing

• 24V DC electronic swing arm gate opener with push rod mechanism
• Soft start and slow stop function for smooth operation
• Advanced obstacle detection in both opening and closing directions
• Adjustable automatic close function with customizable timing
• Over-current protection meeting European safety requirements
• Safe PCB design to prevent damage from incorrect wiring
• Compatible with GSM, solar systems, photocells, alarm lamps, and electronic locks
• Supports up to 23 additional remote controls
• Manual release bar for power outages and emergencies

Ideal for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, and other facilities. Enables contactless automatic door opening and closing for enhanced security and convenience.

The PK300DC/PK350DC swing gate opener is designed for single leaf gates weighing less than 300kg, with single leaf swing gate length under 2.5m/3m. The drive mechanism utilizes worm and worm gear combined with screw rod transmission. For optimal protection, this gate opener must be installed inside the enclosure or yard.

• Before installing the door opener, confirm proper door installation to ensure smooth manual operation and effective door safety stopper functionality
• For electric lock installation: maintain 40-50mm distance between door bottom and ground
• Without electric lock: maintain ≥20mm distance between door bottom and ground
• Recommended mounting height: 300-800mm from ground level
• Ensure reliable fixed points for mounting brackets

To ensure normal operation and protect cables from damage, use PVC pipes for motor, power cable, and control cables. Separate PVC pipes should be used for motor/power cables and control cables respectively.

For secure installation of PK300DC/PK350DC main engines, use expansion screws to fix the mounting brackets.

FOR MORE DETAILS, PLEASE REFER TO THE ATTACHED USER MANUAL.
