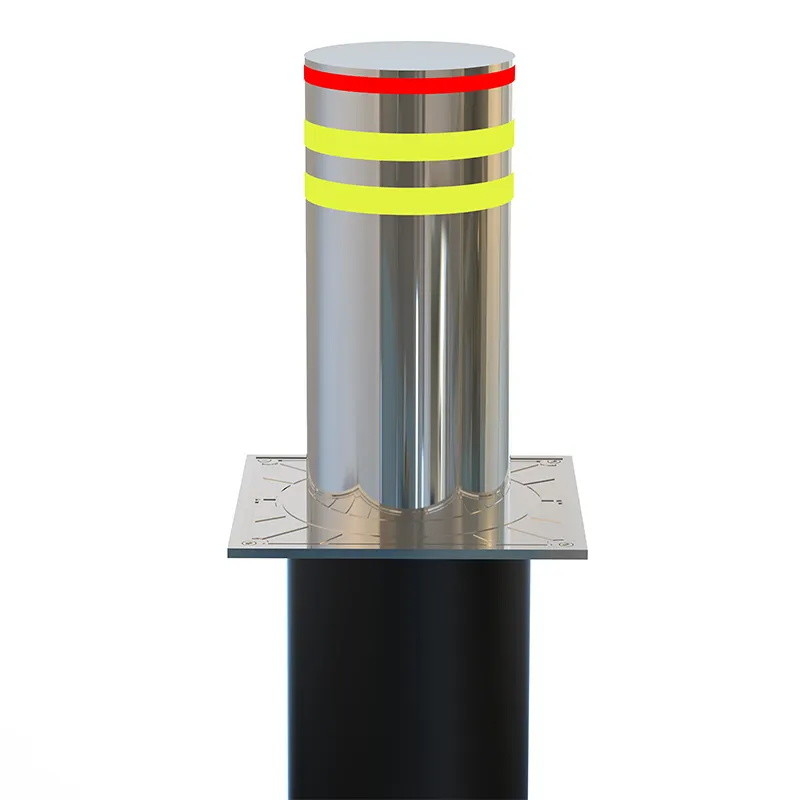

Stainless Steel Electric Rising Pneumatic Bollard
Designed for outdoor crowd control and perimeter security applications, this automatic bollard system provides dynamic vehicle access management with enhanced safety and aesthetic appeal.
Product Overview
The system operates quickly and easily, suitable for both security and access control applications. It enhances perimeter security while maintaining environmental aesthetics and social order without creating an alarming atmosphere.
Engineered to withstand impacts while maintaining operational integrity, these bollards deliver high security levels for all types of sites.
Applications
Ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.
Automatic bollards have gained popularity as dynamic solutions for controlling vehicle access to restricted areas. They can be raised or lowered automatically to manage traffic flow as needed, particularly useful where static bollards are not viable options.
These systems can replace traditional lift gates at rail crossings, parking garages, or toll booths, offering similar functions with enhanced security. They help reduce traffic congestion and improve safety in highly populated areas with mixed vehicle, foot, and cyclist traffic.
Key Advantages
- Multiple material thickness options available (standard 6mm)
- Various color choices to match site requirements
- Custom sizing available for specific applications
- Stable and safe operation with OMRON PLC control system
- Fast rising time and durable quality with hydraulic pressure system
- Durable stainless steel galvanized housing
- Optimized frame structure with high anti-impact and loading capabilities
- Enhanced security with superior anti-collision ability
- Reflective band and low-energy LED lighting for nighttime visibility
Technical Specifications
| Specification |
Details |
| Bollard Color |
Stainless steel original color |
| Raising/Lowering Speed |
≤4.5S / ≤3S |
| Diameter |
219mm (273mm, 324mm optional) |
| Raised Height |
600-800mm (optional) |
| Material |
304 stainless steel (Mild steel, SS316 optional) |
| Control Mode |
Remote control (no less than 50 meters) |
| System Control |
Hydraulic and electric control integrated |
| Working Temperature |
-35℃～+75℃ |
| Embedded Cylinder Depth |
800mm to 1100mm |
| Lamp Band |
LED light (Acrylic light circle) |
| Power Supply |
220V (110V optional) |
| Thickness |
6mm~20mm |
| Weight |
60kg~100kg |
| Anti-collision Levels |
K4/K8/K12 |
| Service Life |
No less than 5 million cycles |
| Drainage Mode |
Natural drainage + External drainage system |
Product Features
High Security & Anti-Collision
Pneumatic air pump in control cabinet provides large power safely for extended operation periods.
Electronic Control System
Features electronic control with automatic rise/fall functionality and high system independence.
Reflective Band
Available in various color options for Glossee aveolate reflective band; requires only minimal light for clear nighttime visibility.
Material Options
304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Anti-Skid Flange
Features unique pattern design compatible with various road surface styles. Built-in PA orientation.
Top Cap Design
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
About SINOMATIC
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, the company offers comprehensive solutions including access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks.
SINOMATIC products are suitable for entry and exit management of vehicles and personnel at government buildings, high-speed toll gates, commercial plazas, residential areas, stations, and customs checkpoints.
The company maintains strong innovation and R&D capabilities with ultra-high technology and craftsmanship, leading the industry into the era of intelligent variable speed interconnection. SINOMATIC focuses on building efficient R&D teams to continuously drive technological and product innovation.
With global distribution spanning over 150 countries including United States, Canada, UK, France, Germany, Russia, India, and many others, SINOMATIC has established itself as a world-renowned brand in access control products through superior quality and comprehensive after-sales service.
