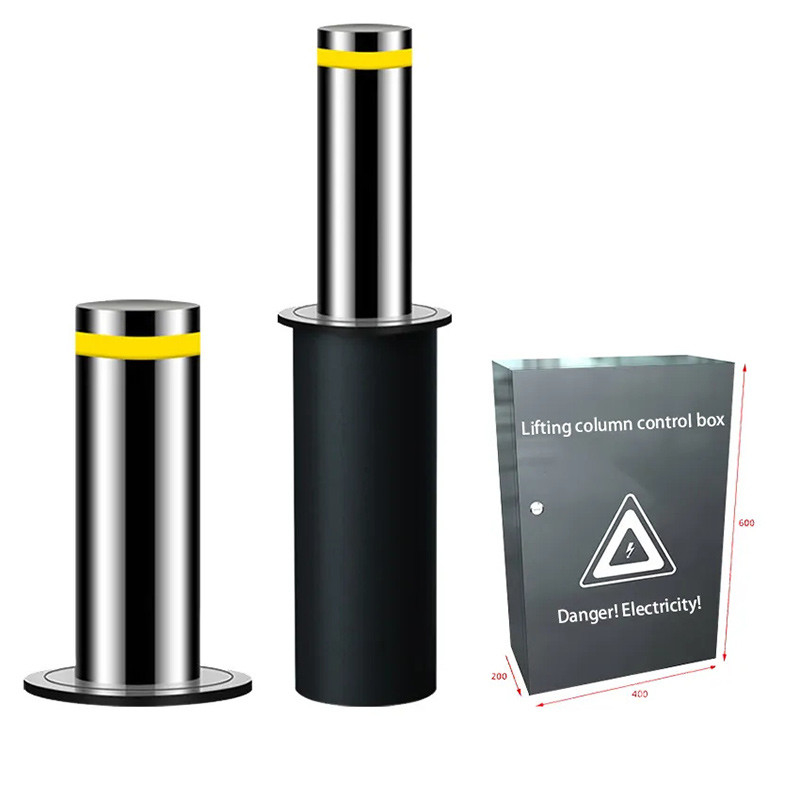

Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply
  • Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply
  • Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply
  • Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply
Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply

Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BO-219
Product Details
Power Supply:
220V(default)/110V Optional
Rising Height:
600mm(default), 800mm Optional
Casing Dimension:
Diameter 350mm，Height 800mm
Bollard Diameter:
219mm (273mm Optional)
IP:
68
Remote Control Distance:
100m
Highlight:

electric retractable driveway bollards

,

telescopic retractable bollards For Driveways

,

telescopic security posts for driveways

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$350~US$450
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description
Automatic Hydraulic Telescopic Retractable Bollards
Designed for driveways with AC 220V/110V power supply options, these bollards provide robust security and access control solutions for various applications.
Product Overview
This system offers quick and easy operation, combining security functionality with environmental and aesthetic enhancements. Engineered to withstand impacts while maintaining operation, it delivers high security levels without creating a sense of social disorder.
Ideal Applications
University campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.
System Benefits
Automatic bollards have gained popularity as dynamic vehicle access control solutions. They automatically raise or lower to manage traffic flow as needed, making them ideal where static bollards aren't viable.
These bollards can replace traditional lift gates at rail crossings, parking garages, or toll booths, offering enhanced security while reducing traffic congestion and improving safety in populated areas.
When installed in front of access gates, they provide additional protection against vehicle impacts to gates or guard booths.
Key Advantages
  • Multiple steel thickness options available (default 6mm)
  • Various color choices to match site requirements
  • Custom sizing available for specific applications
  • Steady and safe operation with OMRON PLC control system
  • Fast rising time and durable quality with hydraulic pressure
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capability
  • Enhanced security and anti-collision performance
  • Reflective band and low-energy LED lighting for nighttime visibility
Technical Specifications
Bollard Color Stainless steel original color
Raising/Lowering Speed ≤4.5S / ≤3S
Diameter 219mm (273mm, 324mm optional)
Raised Height 600-800mm (optional)
Material 304 stainless steel (Mild steel, SS316 optional)
Control Mode Remote control (no less than 50 meters)
System Control Hydraulic and electric control integrated
Working Temperature -35℃～+75℃
Embedded Cylinder Depth 800mm to 1100mm
Lamp Belt LED light (Acrylic light circle)
Power Supply 220V (110V optional)
Thickness 6mm~20mm
Weight 60kg~100kg
Anti-collision Levels K4/K8/K12
Service Life No less than 5 million times
Drainage Mode Natural drainage + External drainage system
Product Features
High Security & Anti-Collision
Pneumatic air pump in control cabinet provides large power safely for extended periods.
Electronic Control System
Features automatic rise/fall functionality with high system independence for reliable operation.
Reflective Band
Various color options for Glossee aveolate reflective band; requires only weak light for clear nighttime visibility.
Material Options
Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Anti-Skid Flange
Unique pattern design compatible with various road surface styles. Built-in PA orientation for enhanced stability.
Top Cap Design
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
Automatic Hydraulic Telescopic Retractable Bollards For Driveways AC 220V 110C Power Supply 0
About SINOMATIC
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, the company offers comprehensive solutions including access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks.
SINOMATIC serves government buildings, high-speed toll gates, commercial plazas, residential areas, stations, and customs checkpoints with innovative access management systems.
The company maintains strong R&D capabilities and leads the industry in intelligent variable speed interconnection technology. SINOMATIC products are distributed globally with agency service outlets in over 150 countries and regions, establishing itself as a world-renowned brand in access control products.
