PLC Controller Driveway Bollard

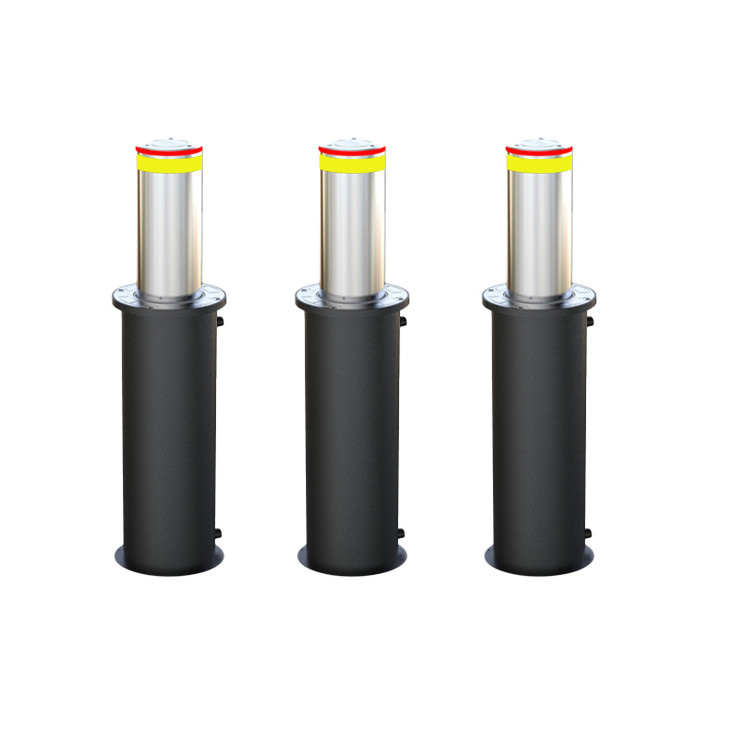

Stainless Steel Powder Coated Galvanised Infrared Sensor Automatic Rising Bollard
Product Overview
Our comprehensive range of automatic rising bollards provides robust, high-security solutions for preventing vehicular access in various applications. These bollards feature built-in flashing lights during operation and can extend to heights of 600mm or 800mm in just 4 seconds, depending on your specific requirements.
Multiple bollards can be installed and operated together or individually, offering flexible access control solutions that eliminate the need for traditional gates while minimizing environmental impact in town centers and historic sites.
Operation & Control
Bollards can be configured to default in either raised or lowered positions. Operation methods include: radio remote control, ANPR (Automatic Number Plate Recognition), vehicle-mounted tag modules, digital keypads, or audio/video intercom systems connected to manned offices worldwide.
Ideal Applications
- Residential & Commercial Bollards
- Traffic Lane Control & Traffic Limitation
- Control of Pedestrianized Areas
Bollard Ranges & Finishes
We offer bollards ranging from 100mm to 400mm diameter in both semi-automatic and full automatic operation configurations.
Available finishes include stainless steel, powder coated, and galvanized bollards, with custom combinations available. For harsh environments, we manufacture powder coated stainless steel bollards providing multiple layers of environmental protection.
Key Advantages
- Multiple steel thickness options available (default 6mm)
- Custom color selection
- Customized sizing capabilities
- Stable and safe operation with OMRON PLC control system
- Fast rising time and durable quality with hydraulic pressure
- Durable stainless galvanization housing
- Optimized frame structure with high anti-impact and loading capability
- Enhanced security and anti-collision ability
- Reflective band with low energy consumption LED lighting for nighttime visibility
Technical Specifications
| Bollard Color | Silver or black |
| Raising/lowering speed | ≤4.5S/ ≤3S |
| Diameter | 219mm |
| Raised height | 600-800mm (optional) |
| Material | 304 stainless steel |
| Control mode | Remote control (<50m) |
| System control | Hydraulic and electric control |
| Working temperature | -30℃~+75℃ |
| Embedded cylinder depth | 800mm |
| Lamp belt | LED light (Acrylic light circle) |
| Power Supply | 220V |
| Thickness | 6mm |
| Weight | 60kg |
| Anti-collision levels | K4, K8, K12 |
| Service life | No less than 5 million times |
| Drainage mode | Natural drainage + External drainage system |
Product Features
Security & Control
High security and anti-collision capability with pneumatic air pump in control cabinet providing sustained power. Electronic control enables automatic rise/fall functionality with high system independence.
Reflective Band
Available in various Glossee aveolate reflective band colors that provide clear nighttime visibility with minimal light exposure.
Material Options
304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Flange Design
Anti-skid flange with unique pattern design compatible with various road surfaces. Built-in PA orientation system.
Top Cap
Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.
About SINOMATIC
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, our product range includes access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks suitable for vehicle and personnel management in government buildings, commercial plazas, residential areas, stations, and customs checkpoints.
SINOMATIC maintains strong innovation and R&D capabilities with ultra-high technology and craftsmanship, leading the industry into the era of intelligent variable speed interconnection. Our commitment to building an efficient R&D team drives continuous technological advancement and product innovation.
With global distribution spanning over 150 countries including the United States, Canada, UK, France, Germany, Russia, India, and many others, SINOMATIC has established itself as a world-renowned brand in access control products through superior quality and comprehensive after-sales service.
