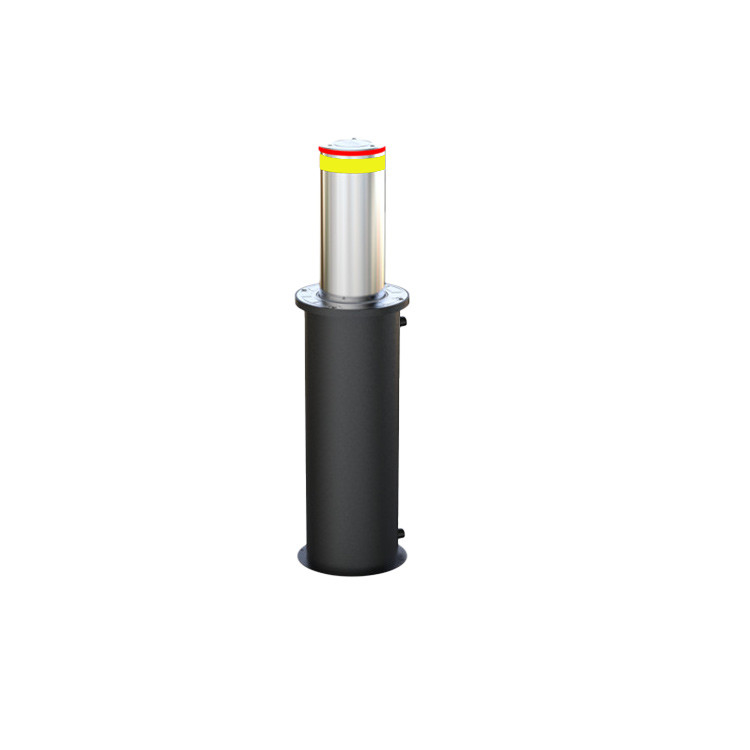

Robust High Security Rising Bollard 220V/110V Power Preventing Unauthorized Vehicular Access
  • Robust High Security Rising Bollard 220V/110V Power Preventing Unauthorized Vehicular Access
  • Robust High Security Rising Bollard 220V/110V Power Preventing Unauthorized Vehicular Access
  • Robust High Security Rising Bollard 220V/110V Power Preventing Unauthorized Vehicular Access

Robust High Security Rising Bollard 220V/110V Power Preventing Unauthorized Vehicular Access

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BO-219
Product Details
Power Supply:
220V(default)/110V Optional
Blocking Height:
600mm(default), 800mm Optional
Housing Dimenstion:
Diameter 350mm,Height 800mm
Bollard Diameter:
219mm (273mm, 324mm Optional)
IP:
68
Color:
Can Be Customized
Highlight:

Robust Rising Bollard

,

220V/110V Rising Bollard

,

High Security Rising Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$350~US$450
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description
Robust High Security Rising Bollard 220V/110V Power
Preventing unauthorized vehicular access with advanced automatic hydraulic bollard systems.
Automatic Hydraulic Bollards
Our comprehensive range of automatic rising bollards offers robust, high-security solutions for preventing vehicular access in various applications. These systems feature built-in flashing LED lights during operation and can extend to heights of 600mm or 800mm in just 4 seconds, depending on your specific requirements.
Multiple bollards can be installed and operated together or individually, providing flexible access control solutions that eliminate the need for traditional gates while minimizing environmental impact in town centers and historic sites.
These aesthetically pleasing traffic control devices disappear flush with ground level when not in use, keeping traffic away from sensitive areas while maintaining visual appeal.
Operation & Control
Bollards can be configured to default in either raised or lowered positions. Multiple operation methods are available including:
  • Radio remote control (up to 50m range)
  • ANPR (Automatic Number Plate Recognition)
  • Vehicle-mounted tag modules
  • Digital keypads
  • Audio/video intercom systems connecting to manned offices worldwide
Key Advantages
  • Multiple steel thickness options available (standard 6mm)
  • Custom color selection
  • Custom sizing capabilities
  • Stable and safe operation with OMRON PLC control system
  • Fast rising times and durable quality through hydraulic pressure
  • Durable stainless galvanized housing
  • Optimized frame structure with high anti-impact and loading capabilities
  • High security and anti-collision performance
  • Reflective bands and low-energy LED lighting for nighttime visibility
Technical Specifications
Specification Details
Bollard Color Stainless steel original color
Raising/Lowering Speed ≤4.5S / ≤3S
Diameter 219mm
Raised Height 600-800mm (optional)
Material 304 stainless steel
Control Mode Remote control (<50m)
System Control Hydraulic and electric control
Working Temperature -30℃~+75℃
Embedded Cylinder Depth 800mm
Lamp System LED light (Acrylic light circle)
Power Supply 220V
Thickness 6mm
Weight 60kg
Anti-collision Levels K4, K8, K12
Service Life No less than 5 million cycles
Drainage Mode Natural drainage + External drainage system
Product Features
High Security & Anti-Collision: Pneumatic air pump in control cabinet provides sustained high-power operation safely.
Electronic Control: Automated rise/fall functionality with high system independence.
Reflective Band: Multiple color options available with Glossee aveolate reflective material, requiring minimal light for clear nighttime visibility.
Material Options: Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Anti-Skid Flange: Unique pattern design compatible with various road surfaces, featuring built-in PA orientation.
Top Cap Design: Simple integration compatible with all architectural styles, featuring excellent workmanship resistant to close attacks.
About SINOMATIC
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, our product portfolio includes access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks suitable for vehicle and personnel management in government buildings, commercial plazas, residential areas, stations, and customs checkpoints.
SINOMATIC maintains strong innovation and R&D capabilities with ultra-high technology and craftsmanship, leading the industry into the era of intelligent variable speed interconnection. Our commitment to building an efficient R&D team continuously drives technological and product innovation, enhancing core competitiveness and market share.
Our products are distributed worldwide with agency service outlets in over 150 countries and regions including the United States, Canada, UK, France, Germany, Russia, India, and throughout Asia, Middle East, and Africa.
With superior product quality and comprehensive after-sales service, "SINOMATIC" has become a world-renowned brand in access control products, building trustworthy quality and representing Chinese national brands globally.
