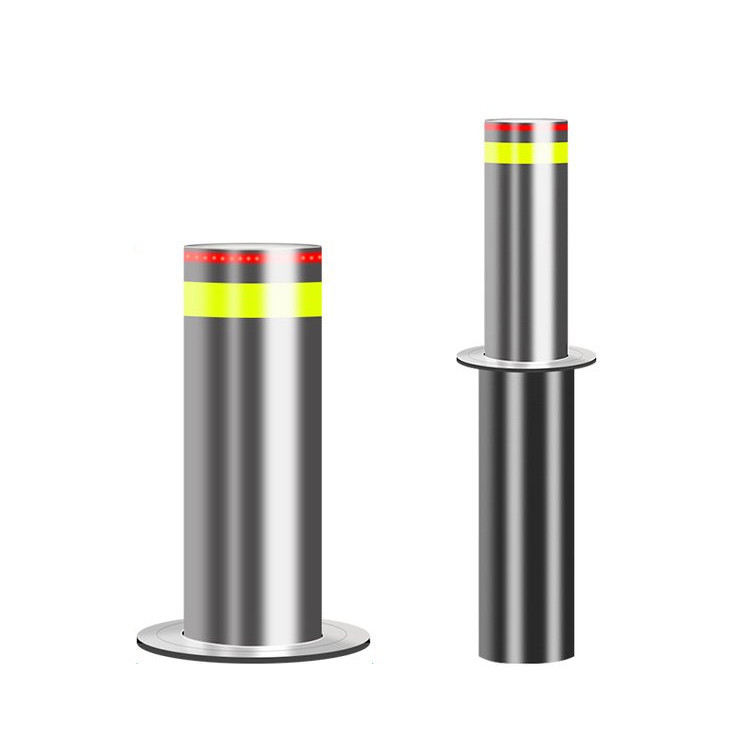

Automatic Hydraulic Bollards for Vehicle Access Control
Automatic hydraulic bollards provide dynamic vehicle access control for restricted areas, offering automated raising and lowering functionality to manage traffic flow as needed. These systems are ideal for locations where static bollards are not practical.
Automatic bollards serve as effective replacements for traditional lift gates at rail crossings, parking garages, and toll booths, delivering enhanced security benefits. They help reduce traffic congestion and improve safety in densely populated urban environments with mixed vehicle, pedestrian, and cyclist traffic. For areas with frequently changing access requirements, automatic bollards provide optimal flexibility.
Installation in front of access gates adds an additional protective layer, preventing vehicle impacts on gates and guard booths.
We install automatic hydraulic bollards in various settings including pedestrian streets, highway toll stations, airports, schools, banks, clubs, and parking facilities. A dedicated control panel regulates bollard movement, effectively preventing unauthorized access.
Product Advantages
- Multiple steel thickness options available (standard 6mm)
- Various color customization options
- Custom sizing capabilities
- Stable and secure operation with OMRON PLC control system
- Fast rising time and durable construction with hydraulic pressure
- Stainless galvanized housing for enhanced durability
- Optimized frame structure with high anti-impact and loading capabilities
- Advanced security features with superior anti-collision performance
- Reflective band and low-energy LED lighting for nighttime visibility
Technical Specifications
| Bollard Color |
Stainless steel original color |
| Raising/Lowering Speed |
≤4.5S / ≤3S |
| Diameter |
219mm |
| Raised Height |
600-800mm (optional) |
| Material |
304 stainless steel |
| Control Mode |
Remote control (<50m) |
| System Control |
Hydraulic and electric control |
| Working Temperature |
-30℃~+75℃ |
| Embedded Cylinder Depth |
800mm |
| Lamp Belt |
LED light (Acrylic light circle) |
| Power Supply |
220V |
| Thickness |
6mm |
| Weight |
60kg |
| Anti-collision Levels |
K6 |
| Service Life |
5 million cycles |
| Drainage Mode |
Natural drainage + External drainage system |
Key Features
Security & Durability
High security rating with exceptional anti-collision capability. Pneumatic air pump in control cabinet provides sustained high-power operation safely.
Electronic Control System
Fully electronic control with automatic rise/fall functionality and high system independence.
Reflective Band
Multiple color options for Glossee aveolate reflective band; requires minimal light for clear nighttime visibility.
Material Options
Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Anti-Skid Flange
Unique pattern design prevents slipping. Compatible with various road surface styles. Built-in PA orientation system.
Top Cap Design
Simple integration design compatible with all architectural styles. Excellent workmanship provides resistance to close attacks.
