Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management
  • Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management
  • Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management
  • Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management
Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management

Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BO-219
Product Details
Application:
Security Access Control Management
Bollard Diameter:
Standard 219mm (168/273/324mm Optional)
Rising Height:
600mm, 800mm, 1000mm
Alert Setting:
LED Light
Bollard Weight:
60kg
Control Box Weight:
15kg
Highlight:

Security Access Control Hydraulic Bollard

,

Automatic Retractable Hydraulic Bollard

,

Rising Hydraulic Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$350~US$450
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description

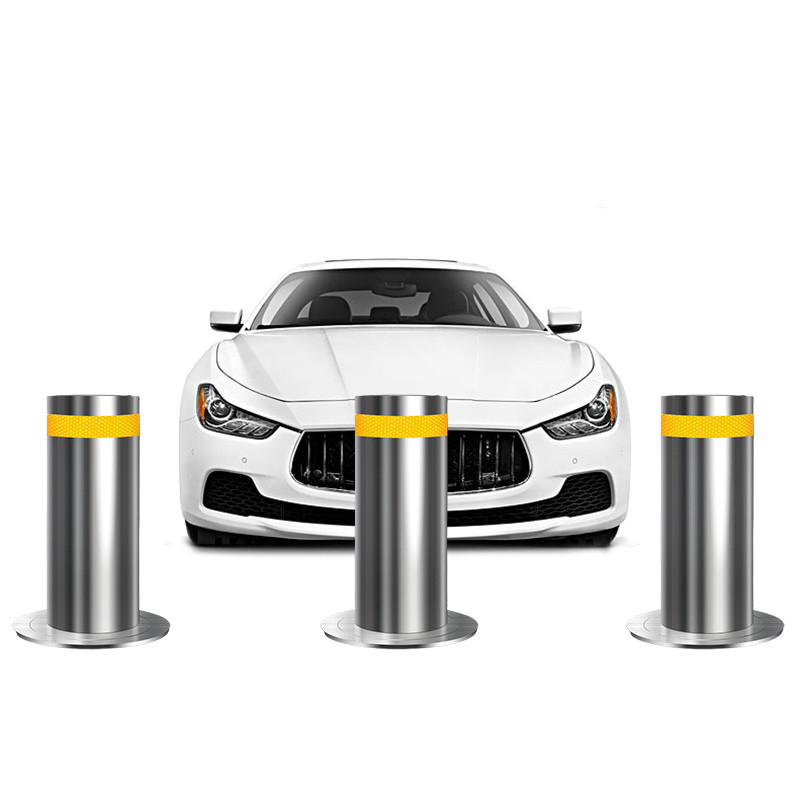

Automatic Retractable Rising Hydraulic Bollard
Advanced security access control solution for regulating vehicle traffic in restricted zones, pedestrian areas, parking lots, and industrial sites.
Product Overview
Our hydraulic bollard systems provide optimal security against unauthorized vehicle entry. SINOMATIC specializes in installation with upgraded products and expanded distribution across India. Features include stainless steel construction and hydraulic technology for heavy-duty usage.
Advanced Features
  • Advanced Anti-Corrosion Design: IP68 protection grade, 304 stainless steel construction, nitriding-treated oil cylinder push rod for enhanced wear and corrosion resistance
  • High Strength Blocking Performance: Withstands impact energy of 1108kj, equivalent to stopping a 6.8-ton vehicle at 65km/h
  • Easy Maintenance: Modular internal design allows simple screw removal and accessory replacement without ground excavation
Technical Specifications
System Electric-hydraulic system
Max Passing Pressure 80T to 120T trucks
Power Supply AC220V 50Hz Integrated (AC110V optional)
Rising Height 600mm standard (Max 1000mm)
Bollard Thickness 6mm standard (8mm, 10mm, 15mm, 20mm optional)
Diameter 219mm Standard (168mm, 273mm, 324mm optional)
Operating Temperature -30℃ to 75℃
IP Rating IP68
Service Life 5 to 10 years
Automatic Retractable Rising Hydraulic Bollard for Security Access Control Management 0
Key Features
Security & Performance
High security and anti-collision capability with pneumatic air pump providing sustained power. Electronic control for automatic rise/fall operation.
Reflective Band
Glossy aveolate reflective band available in various colors, clearly visible at night with minimal light.
Material Options
304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Flange Design
Anti-skid flange with unique pattern design, compatible with various road surfaces and built-in PA orientation.
Top Cap
Simple integration design compatible with all architectural styles, featuring excellent workmanship resistant to close attacks.
Operational Benefits
  • Manual lowering capability during power outages
  • Reversible operation during rising and falling
  • Low noise operation (≤60 decibel)
  • Waterproof integrated hydraulic device drive
  • Double-sealed hydraulic cylinder ensuring waterproof rating
  • PLC programming command control box with encryption system
  • Remote control distance up to 50m
  • Bilingual Chinese/English text display

Tags:

automatic driveway bollards,

automatic retractable bollards,

hydraulic rising bollards
