Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch
  • Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch
  • Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch
  • Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch
Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch

Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PY300DCL
Product Details
Max Loading Weight:
300 Kg
Work Duty:
S2 20min
Limit Switch:
Electronic Limit Switch
Recording Of Up Remotes:
25
Package Weight:
19kg
Battery Specification:
12V 4.5Ah*2pcs
Highlight:

Chain Driven Sliding Gate Operator

,

Automation Sliding Gate Operator

,

300KG Sliding Gate Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
10,000 pcs per month
Product Description
Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch
Product Overview
The PY300DCL Sliding Gate Automation Kit provides reliable automated operation for sliding gates up to 300kg in weight and 12m in length, featuring electronic limit switching and chain-driven motion.
Installation Guidelines
  • Suitable for gates up to 300kg weight and 12m length (standard kit includes 6m chain; extend chain for gates over 5.5m)
  • Gate motion achieved through rotating output sprocket driving chain attached to moving gate
  • Remote control operation: single press to open, single press to close for safety
  • Must be installed within private property boundaries only
Technical Specifications
Unit ModelPY300DCL
Power SupplyAC220V,50Hz; AC110V,60Hz
Max. Gate Weight300KG
Motor PowerDC24V,100W
Gate Moving Speed13 m/min
Limit SwitchElectronic limit switch
Recording of up Remotes25
Decoding / FrequencyRolling code / 433.92MHz
Work DutyS2 20min
Noise≤60dB
Work Temperature-20°C~70°C
Backup battery12V 4.5Ah*2pcs
Package Weight19 KG
Package size30*27*50cm
Key Features & Functions
• Brushed aluminum shell, novel appearance
• DC24V motor with built-in control unit
• Built-in backup battery system
• Solar system compatible
• Keypad / single button interface
• Alarm lamp, photo beam & safety beam interface
• Auto-close function option
• Soft start and slow stop operation
• Manual key release for emergency use

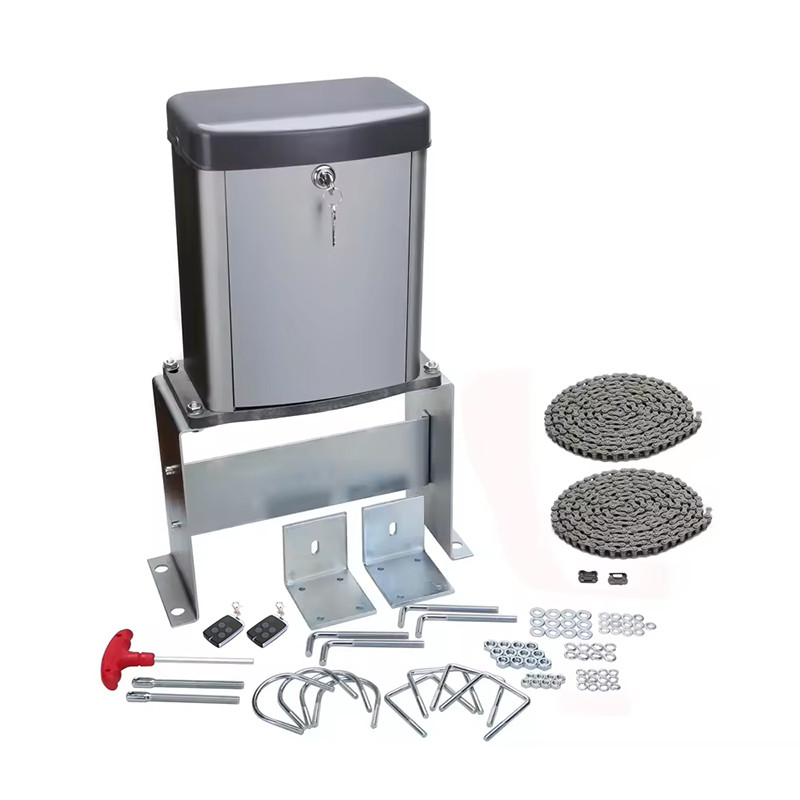

Standard Package Contents
  • Gate motor
  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
  • 6m chain
Automation Sliding Gate Operator Chain Driven 300KG Electronic Limit Switch 0
