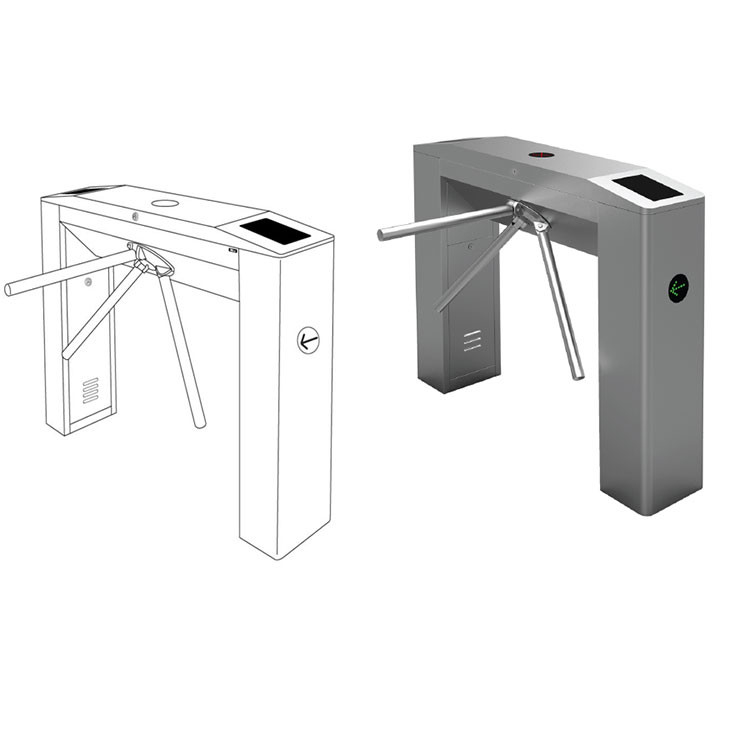

Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material
  • Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material
  • Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material
  • Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material
Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material

Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Power Supply Input:
AC100V~240V; DC24V
Power Voltage:
DC 24V
Pass Speed:
30 Person Per Minute
Housing / Arm:
304 Stainless Steel
Housing Size:
123x28x102cm
Net Weight:
75KG
Highlight:

Anti-Tailgating Tripod Turnstile Barrier

,

Waist Height Tripod Turnstile Barrier

,

304 Stainless Steel Tripod Turnstile Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
1,000 pcs per month
Product Description
Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material
Product Overview
This semi-automatic tripod turnstile is a pedestrian security gate designed for factory entrances. Integrated with access control readers, it effectively restricts unauthorized access while maintaining a professional appearance. This model provides superior anti-tailgating protection compared to other pedestrian gate systems.
Advanced Anti-Tailgating Technology
Traditional turnstiles often suffer from tailgating vulnerabilities where multiple individuals pass through with a single valid credential. This eliminates this security gap through innovative DLAR (Dual Level Anti Reverse) technology and SPT (Single Pass Timer) alarm system, ensuring one person passes per valid authorization.
Key Operational Advantages
  • Motor-Free Operation: Mechanical spring system automatically returns arm to home position without expensive electric motors
  • Easy Operation: Light push required for arm rotation, suitable for all users including elderly and children
  • Emergency Safety: Arms drop automatically during power failures for emergency egress compliance
Technical Specifications
Description Parameter
Power Supply Input AC220/110V (± 10%)
Power Voltage 24 V DC
Power Consumption During Idle AC: 0.07 Amp DC: 0.16 Amp
Power Consumption During Operation AC: 0.02 Amp DC: 0.72 Amp
Passage Width 60 cm
Response Time 0.3 second
Pass Speed 30 persons per minute
Housing / Arm Material 304 Stainless Steel
Internal Mechanism Mild Steel
Arm Disc Material Alloy Chromed
Working Temperature -25℃ to 60℃
Core Features & Capabilities
  • Compact, cost-effective entrance security solution
  • Fully rainproofed 304 stainless steel housing - rust-resistant, solid, and durable
  • Suitable for indoor and outdoor installation with IP54 rating
  • International standard relay output for integration with third-party access control systems (RFID, Fingerprint, Face Recognition, Barcode, IR Thermometer)
  • Semi-automatic operation requiring light push when access is granted
  • Precision mold mechanism for smooth, quiet operation with extended service life
  • Single-person passage enforcement with optional hydraulic damper
  • Supports both single-directional and bi-directional operation
  • LED directional indicator light on housing top
  • Automatic clock function with default 5-second timeout
  • Power-off free passage compliance with fire safety requirements
Maintenance Information
Recommended daily usage capacity: 10,000 rotations. Serviceable internal components include:
  • Solenoid lock
  • Roller bearing and spring
  • Shock absorber
  • Limit switch
Anti-Tailgating Waist Height Tripod Turnstile Barrier with 304 Stainless Steel Material 0
Why Choose Sinomatic
  1. Over 20 years of OEM/ODM experience in access control turnstiles, barriers, and road blockers
  2. Prompt delivery with standard model inventory
  3. Custom OEM/ODM orders to meet specific client requirements
  4. Sample testing available before bulk orders
  5. Comprehensive online technical support
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days
