Entrance Anti-Tailgating Pedestrian Gate Tight-Spaced Semi-Auto Mini Tripod Turnstile
  • Entrance Anti-Tailgating Pedestrian Gate Tight-Spaced Semi-Auto Mini Tripod Turnstile
  • Entrance Anti-Tailgating Pedestrian Gate Tight-Spaced Semi-Auto Mini Tripod Turnstile

Entrance Anti-Tailgating Pedestrian Gate Tight-Spaced Semi-Auto Mini Tripod Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Control Voltage:
DC24V
Pass Speed:
30 Person Per Minute
Housing / Arm:
304 Stainless Steel
Response Time:
0.3S
Housing Thickness:
1.2mm
Net Weight:
30kg
Highlight:

Semi-Auto Tripod Turnstile

,

Anti-Tailgating Tripod Turnstile

,

Anti-Tailgating Pedestrian Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
$300~$350
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union,,Alipay,Paypal
Supply Ability
1,000 pcs per month
Product Description

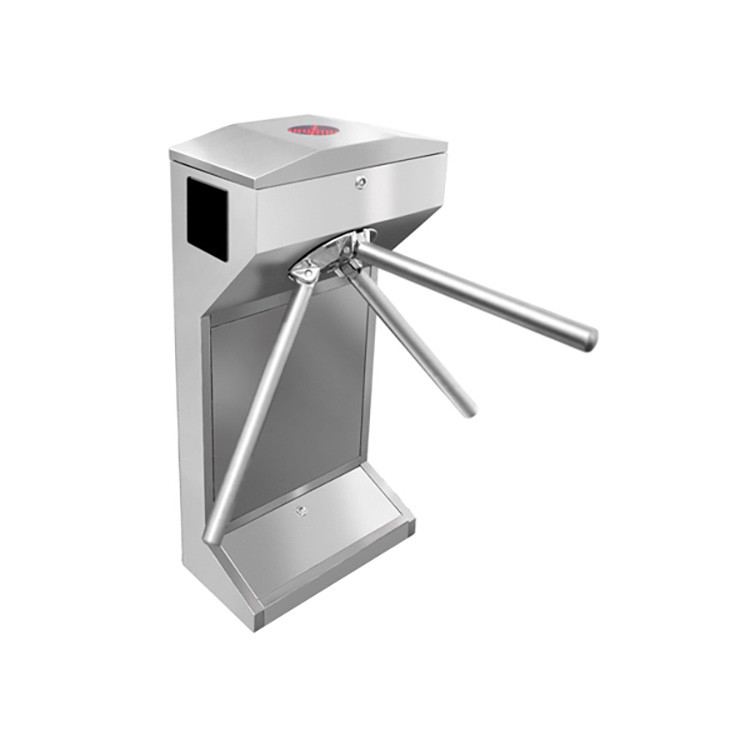

Entrance Anti-Tailgating Pedestrian Gate Tight-Spaced Semi-Auto Mini Tripod Turnstile
This semi-automatic mini tripod turnstile is designed for entrance security applications where space is limited. Integrated with access control readers, it effectively restricts unauthorized access while maintaining an inviting atmosphere. The compact design offers superior anti-tailgating protection among pedestrian gates and prohibits luggage passage.
Security Features
Tailgating, where multiple individuals follow through with a single valid credential, is a common security vulnerability in many turnstile systems. Our turnstile addresses this critical security gap through advanced technologies:
  • DLAR Technology: Dual Level Anti-Reverse system ensures one credential permits only one person to pass
  • SPT Alarm: Single Pass Timer prevents additional time for tailgating attempts
Applications
Suitable for both indoor and outdoor installations, including coastal environments. This economical security solution is ideal for railways, bus stations, factories, colleges, commercial buildings, stadiums, game parks, banks, and similar facilities.
Technical Specifications
Power Supply Input AC220/110V (± 10%)
Power Voltage 24 V DC
Power Consumption During Idle AC: 0.07 Amp DC: 0.16 Amp
Power Consumption During Operation AC: 0.02 Amp DC: 0.72 Amp
Passage Width 60 cm
Response Time 0.3 second
Pass Speed 30 persons per minute
Housing / Arm 304 Stainless Steel
Internal Mechanism Mild Steel
Arm Disc Alloy chromed
Working Temperature -25℃ to 60℃
Key Features
  • Compact, cost-effective entrance security solution
  • Fully rainproofed 304 stainless steel housing - rust-resistant, solid, and durable
  • Suitable for indoor and outdoor installation (IP44 rated)
  • International standard relay output for integration with third-party access control systems (RFID, Fingerprint, Face Recognition, Barcode, IR Thermometer)
  • Semi-automatic operation - push arm slightly when access is granted
  • Precision mold mechanism for smooth, quiet operation with low power consumption
  • Hydraulic damper option available
  • Single-person passage enforcement
  • Supports both single-directional and bi-directional operation
  • LED directional indicator light on housing top
  • Automatic clock function with 5-second default timeout
  • Power-off free passage for fire safety compliance
Maintenance Components
Serviceable internal parts include: Solenoid lock, Roller bearing and spring, Shock absorber, and Limit switch.
Entrance Anti-Tailgating Pedestrian Gate Tight-Spaced Semi-Auto Mini Tripod Turnstile 0
Why Choose Sinomatic
  • 20+ years OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet client requirements
  • Trial orders and sample testing available
  • Comprehensive online technical support
  • Multiple transportation options: sea, air, or express
  • Factory visits welcome on working days
