Indoor Outdoor Usage Gym Turnstile Security Access Control Vandal Resistant
  • Indoor Outdoor Usage Gym Turnstile Security Access Control Vandal Resistant
  • Indoor Outdoor Usage Gym Turnstile Security Access Control Vandal Resistant
  • Indoor Outdoor Usage Gym Turnstile Security Access Control Vandal Resistant

Indoor Outdoor Usage Gym Turnstile Security Access Control Vandal Resistant

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH02
Product Details
Power Supply Input:
AC100V~ 240V; 50Hz/60Hz; DC24V
Power Voltage:
DC 24V / 50W
Passage Width:
≤650mm
Arm Rotation Angle:
120 Degree(90 Degree Optional)
Housing Material:
SS304
Optimal Pass Speed:
30 Person/min Each Lane
Highlight:

Indoor Outdoor Usage Gym Turnstile

,

Access Control Gym Turnstile

,

Vandal Resistance Gym Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
100 pcs per month
Product Description
Indoor Outdoor Usage Gym Turnstile Security Access Control

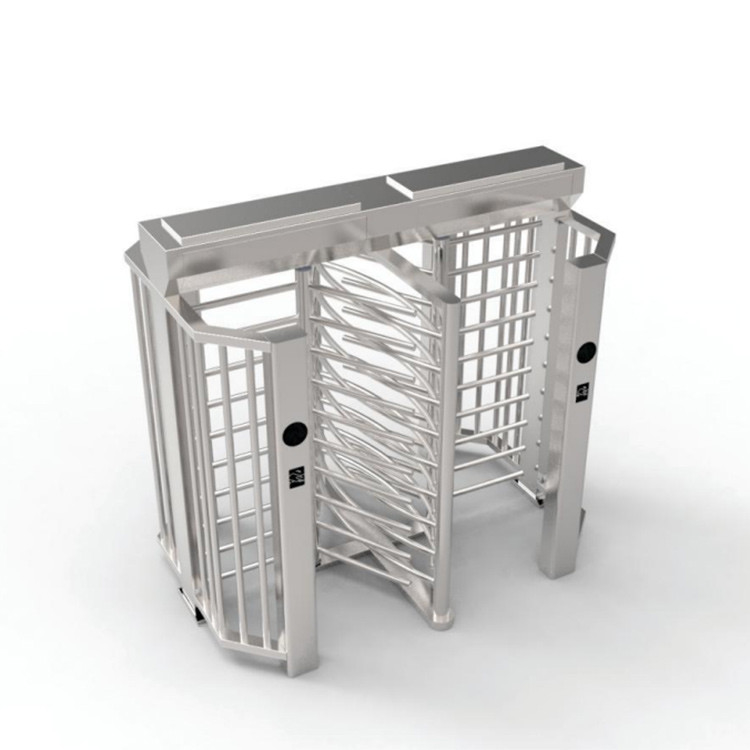

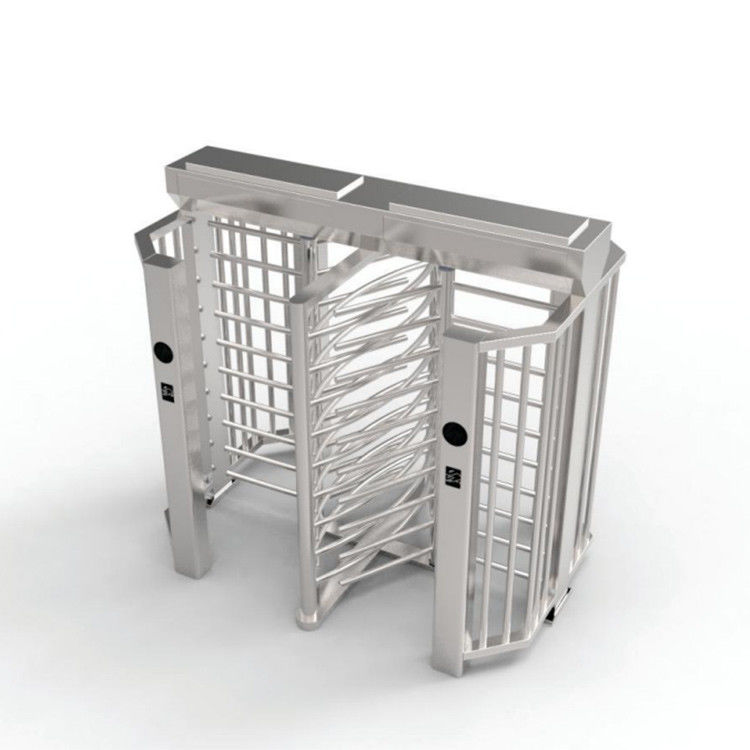

This semi-automatic stainless steel dual lane full-height turnstile provides maximum access security control. Users cannot crawl underneath or climb over to gain unauthorized access. The full-height design ensures single-pass through each time, built with high-quality materials for advanced reliability and vandal resistance. Suitable for outdoor usage in high-traffic environments, it operates using a solenoid lock system that blocks rotation direction.
Applications
Ideal for both indoor and outdoor applications, this turnstile offers an economical security solution for factories, colleges, commercial buildings, stadiums, game parks, prisons, and similar facilities. Not recommended for installation near seaside locations.
Key Features & Benefits
Space-Saving Dual Lane Design
The SN-FHT-M20 model saves valuable space compared to installing two separate SN-FHT-M10 full-height turnstiles.
Advanced Anti-Reverse Security
Features SINOMATIC SLAR (single-level anti-reverse) lock design to prevent unauthorized entry attempts where intruders might reverse rotation after initial authorized access.
Enhanced Durability
Heavy-duty shock absorbers reduce impact and vibration during operation, minimizing mechanical wear and lowering maintenance costs.
Emergency Safety Features
Manual unlocking capability during power failures allows free arm rotation for emergency evacuation.
Cost-Effective Transportation
Tripod arms are split into three separate pieces to reduce transportation costs, with easy on-site assembly.
Functions & Features
  • Optimized design for limited space environments requiring dual lane traffic flow
  • LED light indicators show passage direction - downward during standby, upward when access is approved
  • Easy integration with third-party access control or ticketing systems via external mounting or built-in options
  • High-quality 304 stainless steel housing for long-lasting vandal resistance
  • Anti-reverse smart locking system prevents unauthorized passage, allowing only one person at a time
  • Configurable power failure mode (locked or unlocked) - confirmation required before ordering
Technical Specifications
Power Supply Input AC100V~240V; 50Hz/60Hz
Power Voltage DC 24V / 30W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30 persons/min each lane
Housing / Arm Material 304 Stainless Steel (brushed finish)
Arm Rotation Angle 90/120 degree optional
Working Environment Indoor and outdoor
Working Temperature -20°C to +70°C
IP Rating IP54
Housing Dimension 2400mm (W) x 1580mm (L) x 2300mm (H)
Net Weight 470kg
