IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition
  • IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition
  • IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition
  • IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition
IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition

IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Input:
AC 220V/ AC110V ± 10%
Frame Material:
SS304 Stainless Steel
Transit Speed:
30~35 Person Per Min
Power Voltage:
DC 24V / 50W
Response Time:
≦0.2s
Passage Width:
≤650mm
Highlight:

RFID Reader Full Height Turnstile

,

Robust Full Height Turnstile

,

IP54 Waterproof Full Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
200 pcs per month
Product Description

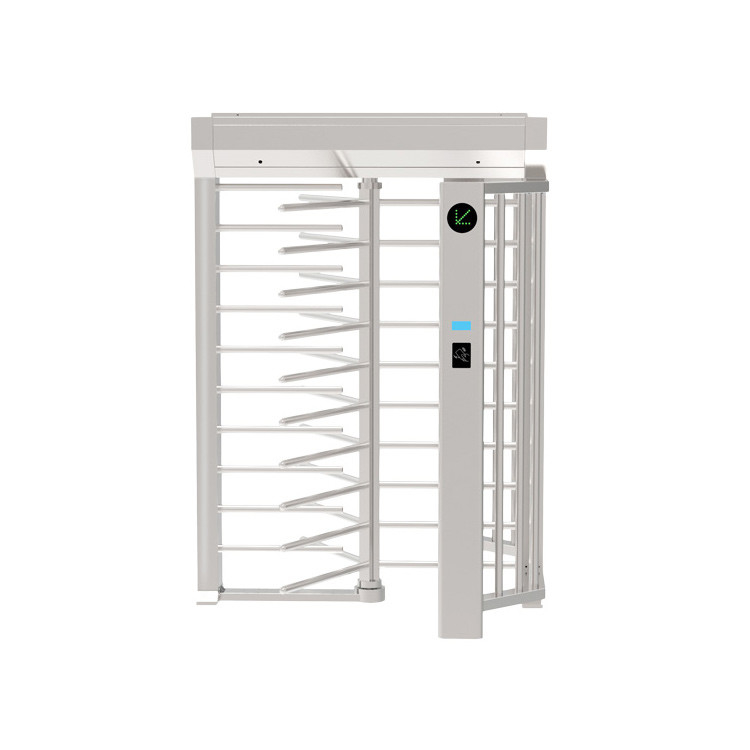

IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition
This semi-automatic stainless steel full-height turnstile provides maximum access security control. Users cannot crawl underneath or climb over to gain unauthorized access to premises. The full-height design effectively controls single-pass throughput each time.
Semi-automatic turnstile operation utilizes a solenoid lock system that controls blocking rotation direction. Built with high-quality materials to withstand years of outdoor usage.
Product Details
A robust and durable gate is essential for outdoor security applications. Intruders may attempt to exploit security vulnerabilities or vandalize gates when unattended. Our solution addresses these concerns without the premium cost of European brands.
Security Enhancement: Single-Level Anti-Reverse Lock
Traditional full-height turnstiles can be compromised by stopping the arm just before locking, allowing reverse rotation for unlimited unauthorized entry. Our SINOMATIC SLAR (single-level anti-reverse) lock design prevents this security loophole.
Enhanced Durability
The integrated heavy-duty shock absorber reduces impact and vibration from rotational momentum during operation, minimizing mechanical wear and lowering maintenance costs.
Emergency Safety Features
Manual unlocking capability during power failures allows free arm rotation for fast emergency evacuation while maintaining security during normal operation.
Cost-Effective Transportation
The tripod arm splits into three separate pieces to reduce transportation costs, with easy on-site reassembly.
Functions & Features
  • 304 stainless steel housing with customizable appearance options
  • Clear access direction indicators with intuitive LED traffic light signals
  • Unique drive system for precise and reliable zero lock/unlock operation
  • Gentle push operation after valid card authentication
  • 90/120 degree rotation per passage
  • Automatic reset function with configurable timeout settings
  • Standard interfaces compatible with various reading/writing equipment
  • Dual-mode power operation: free access during power failure, automatic locking when powered
  • Configurable card reading with memory and memory-less functionality options
Technical Specifications
Power Supply Input AC 220V 50HZ; 110V, 60HZ
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
IP Rating IP 54
Operations time ≥10 million times
IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition 0
