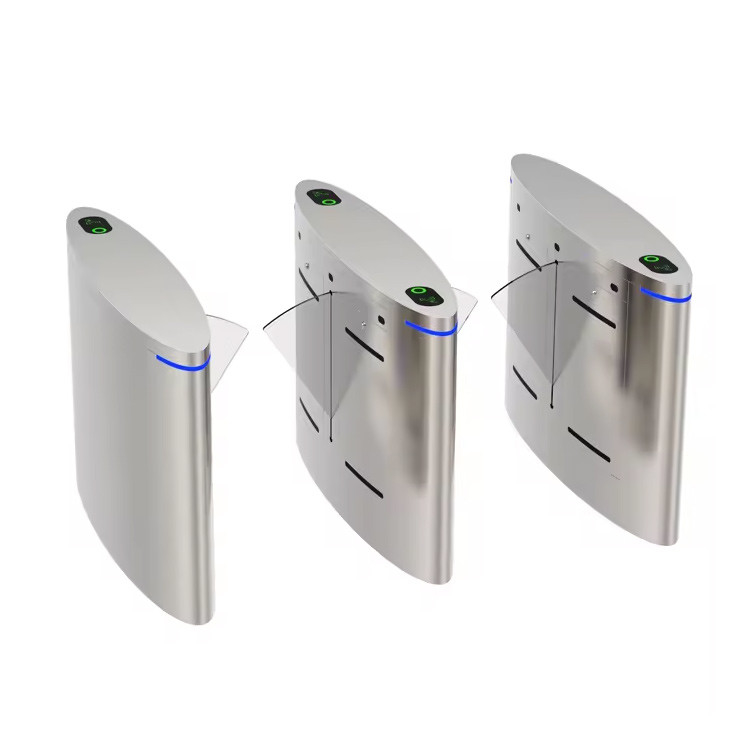

Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance
  • Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance
  • Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance
  • Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance
Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance

Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance

Place of Origin Shenzhen China
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Passing Direction:
Single Directional / Bi-directional
Operating Time:
0.2 Second
Barrier Color:
Clear/red/blue Etc
Input Power:
220V/110V/24V
Passing Speed:
30~40 Person/minute
Passage Width:
550~600mm
Highlight:

Subway Entrance Barrier Gate

,

Metro Entrance Barrier Gate

,

Underground Entrance Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description
Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway / Underground Entrance
Product Description
SINOMATIC automatic flap barrier is engineered to control pedestrian access to restricted areas. Constructed with SS304 stainless steel throughout the casing, it features international standard anti-damp, dust-proof, and water-proof design, making it suitable for both indoor and outdoor installations (with shelter).
Function and Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor stop and reset delay
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function when users fail to pass within prescribed time
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID cards, bar codes, fingerprints, etc.
  • Direction settings for single-direction or bi-directional operation
  • LED direction indicator
  • Automatic opening during power failure and closing when power restores for fire safety compliance
  • Alarm function for illegal intrusion and reverse intrusion detection
  • Optional counter function
  • Infrared photocell support for anti-pinch and reset functions
Technical Specifications
Product Name Flap Barrier Gate
Model SN-FB04
Material Stainless Steel 304 (Cover: 1.5mm Cabinet: 1.2mm)
Size 1200*300*980mm (can be customized)
Passage Width 600mm
Passage Direction Unidirectional/Bi-directional
Pass Rate 30 persons/min
Infrared Sensor 3 pairs
Power Input AC100-240V, 50/60Hz; DC24V
Working Voltage 24V
Working Humidity ≤95%
Working Temperature -30℃ to +70℃
Working Environment Indoor/Outdoor
Communication Interface RS232, RS485, TCP/IP
Access Control System ID/IC card, fingerprint, face recognition, Barcode/QR code, phone app, ESD system, visitor system, etc.
Product Applications
  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites
  • Schools, universities and colleges
  • Sensitive sites: nuclear, pharmaceutical, computer centers
  • Airports
Automatic Pedestrian Barrier Gate Oval Shape For Metro / Subway/ Underground Entrance 0
