Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control
  • Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control
  • Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control
  • Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control
Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control

Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control

Place of Origin Shenzhen China
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Motor Voltage:
24V
Passing Direction:
Single Directional / Bi-directional
Operating Time:
0.2 Second
Open Direction:
Single And Double
Barrier Color:
Clear/red/blue Etc
Input Power:
220V/110V/24V
Highlight:

Mechanism Gate Barrier System

,

Modern Access Control Flap Turnstile

,

Customizable Flap Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

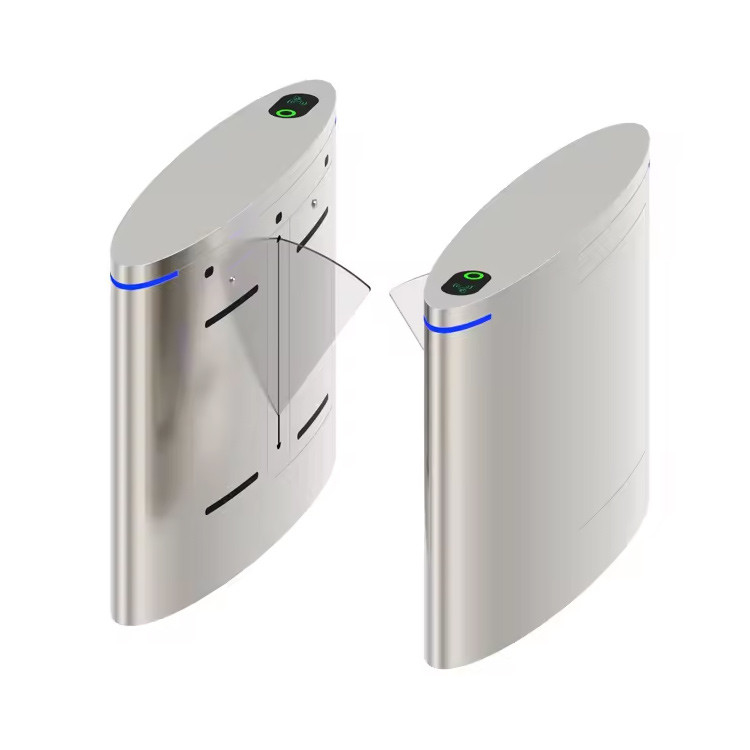

Customizable Flap Turnstile Mechanism Gate Barrier System
SINOMATIC automatic flap barrier is engineered to control pedestrian access to restricted areas. Constructed with SS304 stainless steel throughout the entire case and featuring international standard anti-damp, dust-proof, and water-proof design, this system is suitable for both indoor and outdoor installations (with shelter).
Application Areas
  • Banks and insurance companies
  • Government and institutional establishments
  • Office buildings, registered offices, and administrative sites
  • Schools, universities, and colleges
  • Sensitive facilities: nuclear, pharmaceutical, computer centers
  • Airports
Key Features and Functions
  • Compatible with smart card readers and access controllers for comprehensive access control
  • Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
  • Standard electrical interfaces for easy integration with other read/write devices and remote computer supervision
  • Infrared photocell system with unauthorized entry and tailgating detection alarms, plus anti-strike protection
  • LED direction indicators showing operational status: green arrow for entry permitted, red cross for passage locked
  • Dual input signal capability for turnstile activation via access controller, button, or other equipment
  • Audible sound prompts and information display functionality
  • Automatic flap opening during power interruption with N/C mode recovery after power restoration (optional)
  • Counting function for continuous passage of up to 16 pedestrians with corresponding card reads
  • Reverse passing alarm for unauthorized direction entry after card authentication
  • Integrated face recognition terminal with advanced detection algorithms, high-performance embedded platform, and 200W pixel camera for face detection, tracking, and recognition
Technical Specifications
Product Name Flap Barrier Gate
Model SN-FB04
Material Stainless Steel 304 (Cover: 1.5mm, Cabinet: 1.2mm)
Size 1200×300×980mm
Passage Width 600mm
Passage Direction Unidirectional/Bidirectional
Pass Rate 30 persons/minute
Infrared Sensor 3 pairs
Power Input AC100-240V, 50/60Hz; DC24V
Working Voltage 24V
Working Humidity ≤95%
Working Temperature -30℃ to +70℃
Working Environment Indoor/Outdoor
Communication Interface RS232, RS485, TCP/IP
Access Control System ID/IC card, fingerprint, face recognition, barcode/QR code, phone app, ESD system, visitor system
Customizable Flap Turnstile Mechanism Gate Barrier System For Modern Access Control 0
