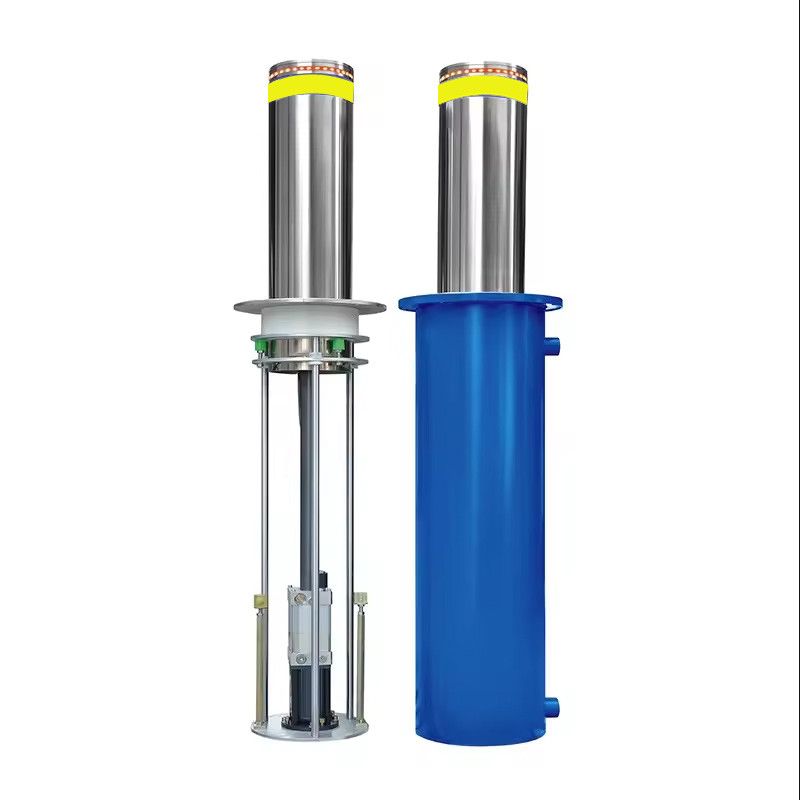

Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height
  • Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height
  • Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height
  • Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height
Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height

Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BO-219
Product Details
System Control:
Hydraulic And Electric Control
Color:
Silver/Black/Red/Blue Etc
Bollard Diameter:
219/273/324mm
Rising Height:
600mm, 800mm, 1000mm
Embedded Cylinder Depth:
800-1300mm(it Depends)
Alert Setting:
LED Light
Highlight:

1000mm Rising Height Bollard

,

Safety Hydraulic Telescopic Bollard

,

Anti-Terrorism Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$350~US$450
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description
Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard
Sinomatic Hydraulic Bollard is an anti-collision safety product with exceptional blocking capability. These automatic bollards are powered by an internal hydraulic system for reliable operation.
Product Operation
When vehicle control or interception is required, the bollard can be raised above ground level via remote control or other methods. Upon reaching the designated blocking height, it automatically stops to provide effective control and interception. When vehicle passage is permitted, the bollard automatically retracts to ground level.
The buried installation method preserves the architectural aesthetics while providing robust security for oil depots, banks, military installations, power stations, and other facilities requiring anti-terrorism interception.
Advanced Features
Superior Corrosion Resistance
Hydraulic system rated IP68 protection, constructed with 304 stainless steel lifting columns and nitriding-treated oil cylinder push rods for enhanced wear and corrosion resistance.
High-Strength Blocking Performance
Capable of withstanding impact energy of 1108kj, equivalent to stopping a 6.8-ton vehicle traveling at 65km/h. The bollard remains fully operational after impact.
Easy Maintenance Design
Modular internal construction allows for simple maintenance through screw removal and component replacement, eliminating the need for ground excavation and reducing maintenance complexity and costs.
Product Specifications
  • System: Electric-hydraulic system
  • Maximum passing pressure: 80T to 120T trucks
  • Power supply: AC220V 50Hz Integrated (AC110V optional)
  • Power: 350W Integrated
  • Rise time: 4.5 seconds
  • Lower time: 3 seconds
  • Working temperature: -30℃ to 75℃
  • Material: 304 stainless steel
  • Rising height: 600mm standard (maximum 1000mm)
  • Bollard thickness: 6mm standard (8mm, 10mm, 15mm, 20mm optional)
  • Diameter: 219mm standard (168mm, 273mm, 324mm optional)
Technical Specifications
Product Name Automatic Bollards
Material 304 Stainless Steel
Product Dimension Ф350 X H800mm
Bollard Diameter 219mm (273mm, 324mm)
Bollard Height 600mm (800mm, 1000mm)
Cylinder Thickness 6mm (8mm, 10mm, 15mm, 20mm)
Movement Principle Hydraulic Driving
Service Life 5 to 10 years
Operating Temperature -35℃ to +75℃
Anti-Terrorism Interception Safety Hydraulic Telescopic Bollard With 1000mm Rising Height 0
Additional Features
High Security & Anti-Collision
Pneumatic air pump in control cabinet provides sustained high-power operation with safety assurance.
Reflective Band Options
Multiple color choices available for glossy reflective bands, clearly visible at night with minimal light.
Material Selection
Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Anti-Skid Flange Design
Unique pattern design compatible with various road surfaces. Built-in PA orientation system.
Top Cap Integration
Simple integration design complements all architectural styles with excellent workmanship for close-range protection.
