SW300DC Double Leaf Automatic Swing Gate Opener WIFI Mobile App Control
  • SW300DC Double Leaf Automatic Swing Gate Opener WIFI Mobile App Control
  • SW300DC Double Leaf Automatic Swing Gate Opener WIFI Mobile App Control
  • SW300DC Double Leaf Automatic Swing Gate Opener WIFI Mobile App Control
SW300DC Double Leaf Automatic Swing Gate Opener WIFI Mobile App Control

SW300DC Double Leaf Automatic Swing Gate Opener WIFI Mobile App Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SW300DC
Product Details
Model Number:
SW300DC
Color:
Black
Application:
Apartment, Warehouse, Workshop, Park
Max. Single-leaf Weight:
300KG
Gate Length:
Max 3 Meters
Max.piston Stroke:
32 Cm
Highlight:

Automatic Swing Gate Opener

,

Double Leaf Swing Gate Opener

,

App Control Swing Gate Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
SW300DC Double Leaf Automatic Swing Gate Opener with WIFI Mobile App Control
The SW300DC swing gate opener is designed for single leaf gates weighing less than 300kg with lengths shorter than 3m. Featuring a planetary transmission system combined with screw rod transmission, this gate opener must be installed inside the enclosure or yard for optimal protection.
Product Advantages
  • DC Motor with backup battery support (DC24V 4.5AH/9.0AH)
  • Optional single/double gate mode configuration
  • No limit switch required - stops upon obstacle detection with gate block
  • Automatic closing function with adjustable timing (0-99 seconds)
  • Smooth operation with slow start and stop functionality, eliminating inertia
  • Manual release design for emergency situations
  • Alarm lamp, photo beam & safety beam interface compatibility
  • Access control system integration for automatic identification and access management
Technical Specifications
Model SW300DC
Power Supply 220V, 50Hz / 110V, 60Hz
Motor Power DC24V/50W
Limit Switch Electronic limit switch
Gate Moving Speed 11-13 m/min
Maximum Loading Weight 300KG per Leaf
Remote Control Distance ≥30m
Remote Control Capacity 45 programmable controls
Package Weight 14kg
Packing List Motor, mounting base, limit magnet (2), limit bracket (2), expansion screw (4), remote control (2), clutch key (2)
Main Features
  • Soft start and slow stop with automatic closing and obstacle detection with automatic reversing
  • Interfaces for GSM, infrared sensor, alarm light, and wall button
  • Backup battery compatibility
  • Solar panel operation support
  • Aluminum shell construction with stainless steel arm
  • Separate control unit for easy installation

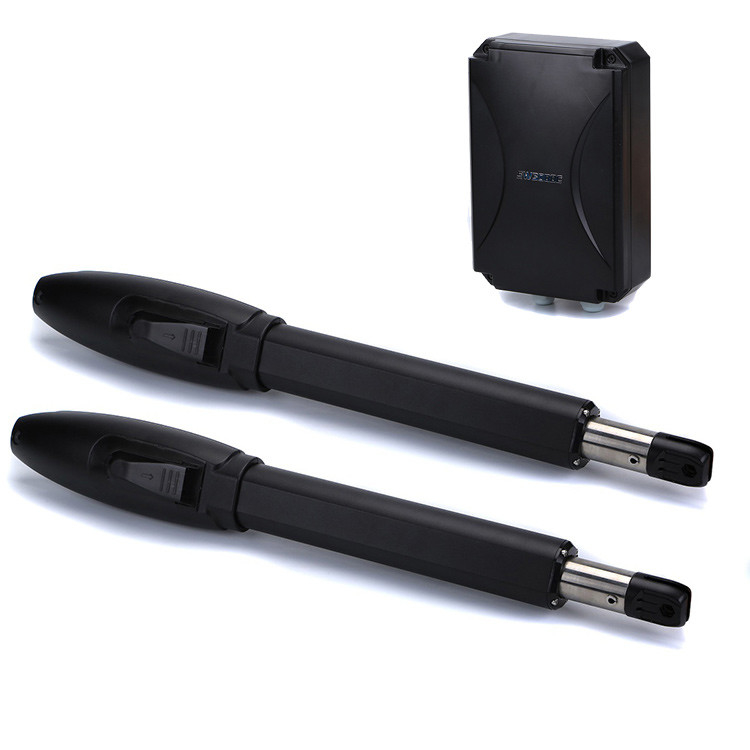

Standard Unit Components
  • SW300DC motor × 2 pieces
  • Control box × 1 piece
  • Control board × 1 piece
  • Remote control × 2 pieces
  • Manual release key × 1 piece
  • User manual × 1 piece
  • Mounting accessories
SW300DC Double Leaf Automatic Swing Gate Opener installation diagram and components
Installation Guidelines
Preparation Before Main Engine Installation
  • Confirm proper gate installation ensuring smooth manual operation and effective safety stopper functionality
  • Install electric lock with 40-50mm clearance between door bottom and ground
  • Without electric lock, maintain ≥20mm clearance between door bottom and ground
  • Recommended mounting height: 300-800mm from ground with reliable fixed points for mounting brackets
Cable Management
Use separate PVC pipes for motor/power cables and control cables to ensure normal operation and protect cables from damage.
Mounting Brackets
For secure motor installation, use expansion screws to firmly fix mounting brackets.
Download SW300DC User Manual with PK400DC PCB
