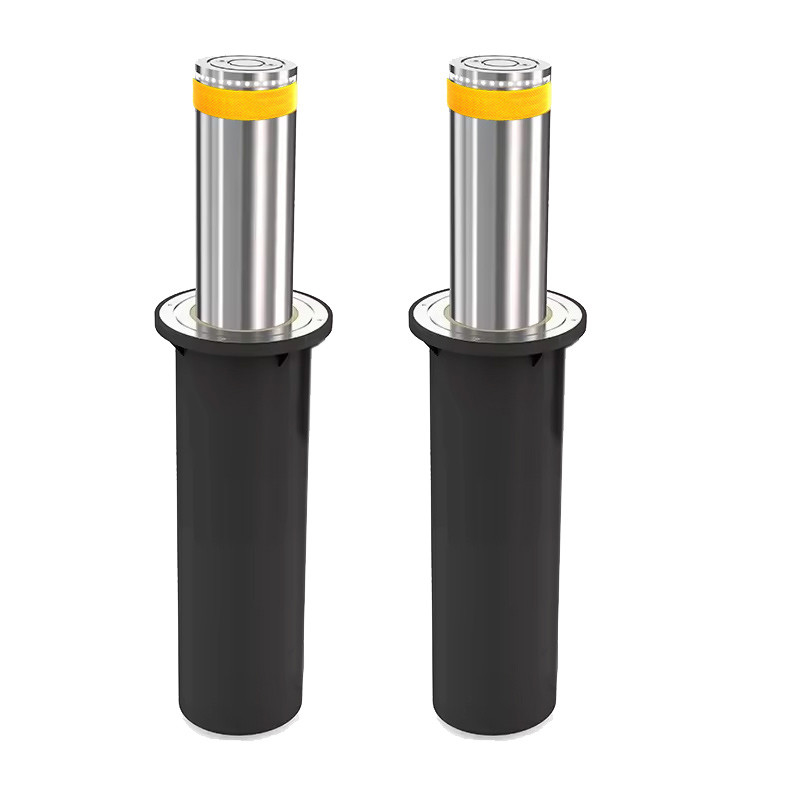

Road Safety Equipments Automatic Hydraulic Bollard System for Pedestrian Walkways

PRODUCT DESCRIPTION

The automatic Bollard is an electro-hydraulic-mechanically operated retractable bollard system. The system can be quickly and easily operated. It is suitable for both security and access control applications.

The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.

Advanced anti-corrosion design: The protection grade of the hydraulic system is IP68, the lifting column is made of 304 stainless steel, and the oil cylinder push rod is treated by nitriding process, which improves its wear resistance and corrosion resistance.

High strength blocking performance: The automatic hydraulic lifting columns have outstanding blocking performance, they can block the impact energy of 1108kj, which is equivalent to blocking the frontal impact of a 6.8-ton vehicle at the speed of 65km/h, stopping the driving of the vehicle, and the lifting column can still be lifted and used normally.

Easy maintenance: The modular design is adopted inside the lifting column. During maintenance, it only needs to remove the screws and replace the accessories, which avoids the problem of repairing the traditional lifting column which needs to be dug out of the ground and re-installed, and reduces the maintenance difficulty and cost.

PRODUCT DETAILS

1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Power supply:AC220V 50Hz Integrated(AC110V optional)
4. Power(w):350W Integrated
5. Up time:4.5S
6. Down time:3S
7. Working temperature:-30℃~75℃
8. Storage Environment:-10℃~65℃(water-proof, damp-proof,dust-proof)
9. Material:304 stainless steel
10. Rising height:600mm standard, Max. can be 1000mm
11. Bollard Thickness: 6mm standard ( 8mm, 10mm, 15mm, 20mm are optional)
12. Diameter:219mm Standard ( 168mm, 273mm, 324mm are optional)
13. Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
14. Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm, Rod diameter:16mm.
15. 6k Mirror tube(optional)
16. LED light (optional)
17. Reflective sticker: 1 or 2 strips
18. Link-control interface
19. In case of a power outage, the bollards can be manually lowered down
20. IP rate: IP68
21. Net Weight:60±KG Integrated
22. In rising and falling,reversible operation is available
23. Device running noise≤60decibel
24. Waterproof integrated hydraulic device drive
25. The hydraulic cylinder is double sealed to ensure a waterproof rating
26. Hydraulic drive comes with hydraulic lock
27. PLC programming command control box (chip control box optional)
28. Solenoid valve voltage 24V
29. Remote control distance 50m(Based on the environment)
30. The control box displays text adjustable (Up, Down, Action, Time control is adjustable)
31. Text display with Chinese and English bilingual langague.
32. PLC built-in encryption system
33. Water immersion performance:48 hours without leakage and working well

TECHNICIAL SPECIFICATIONS

PRODUCTION

Automatic bollard features

High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence

Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.

Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.

Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.

Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.
