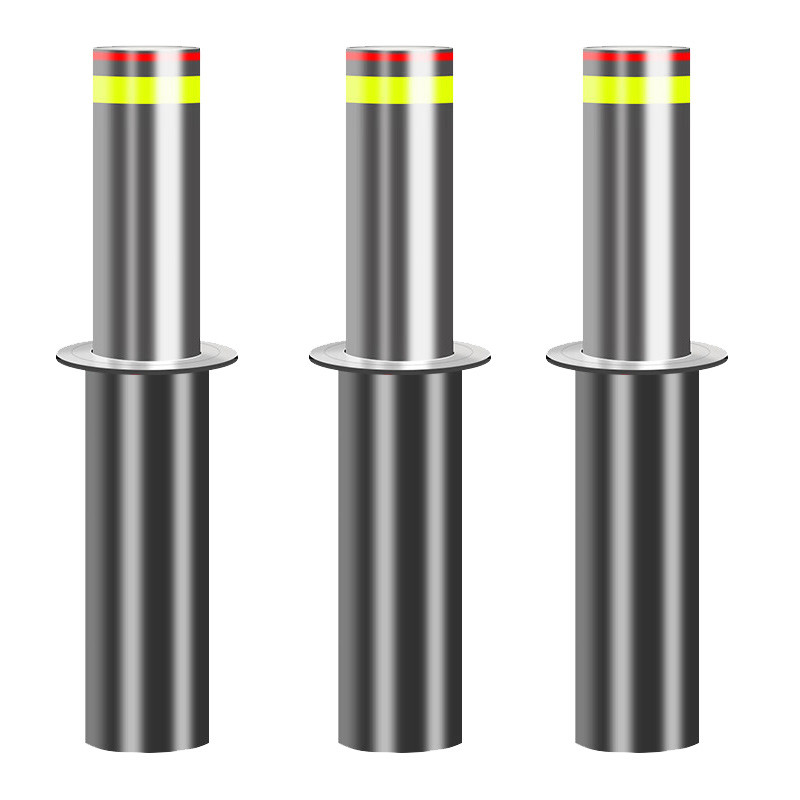

Hydraulic Drive High Security Bollard for Military, Governmental and Commercial Entrances
SINOMATIC BO series hydraulic retractable bollards are engineered for high-security vehicle entrances at military installations, industrial facilities, government buildings, and commercial properties requiring controlled access during specific hours.
The hydraulic drive system features emergency battery backup for operation during power failures. PLC-controlled electronics enable integration with card readers, biometric systems, radio controls, and key switches. Safety accessories including photocells, inductive loop detectors, and warning lights can be seamlessly incorporated.
Working Applications
Parking Lots and Garages
Automatic bollards provide temporary access control for full parking facilities and secure private parking areas for authorized personnel.
Public Facilities
Ideal for parks, museums, and zoos to separate vehicle and pedestrian zones while controlling access during operating hours.
Business Delivery Zones
Secure designated delivery areas with retractable bollards that provide clear access for authorized vehicles.
Emergency Access Lanes
Ensure emergency vehicle access at hospitals, government buildings, and banks while maintaining security protocols.
Private Driveways
Protect residential properties from unauthorized vehicle access and deter vehicle theft with reliable automatic bollards.
Product Specifications
- System: Electric-hydraulic system
- Max passing pressure: 80T to 120T trucks
- Power supply: AC220V 50Hz Integrated (AC110V optional)
- Power: 350W Integrated
- Rise time: 4.5 seconds
- Lower time: 3 seconds
- Working temperature: -30℃ to 75℃
- Material: 304 stainless steel
- Rising height: 600mm standard (up to 1000mm available)
- Bollard thickness: 6mm standard (8mm, 10mm, 15mm, 20mm optional)
- IP rating: IP68 waterproof
- Noise level: ≤60 decibel
Technical Specifications
| Specification |
Details |
| Product Name |
Automatic Bollards |
| Material |
304 Stainless Steel |
| Product Dimension |
Ф350 X H800mm |
| Bollard Diameter |
219mm (273mm, 324mm optional) |
| Bollard Height |
600mm (800mm, 1000mm optional) |
| Cylinder Thickness |
6mm (8mm, 10mm, 15mm, 20mm optional) |
| Movement Principle |
Hydraulic driving |
| Service Life |
5 to 10 years |
Key Features
- High security and anti-collision capability
- Pneumatic air pump provides sustained power
- Electronic control with automatic rise/fall
- High system independence
- Multiple material options: 304/316 stainless steel, carbon steel
- Anti-skid flange with unique pattern design
- Integrated top cap compatible with various architectural styles
About SINOMATIC
Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in intelligent access control products. With nearly 200 patented technologies, our product range includes access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks. Our products serve government buildings, commercial plazas, residential areas, stations, and customs checkpoints worldwide.
SINOMATIC maintains a global presence with service outlets in over 150 countries including the United States, Canada, UK, Germany, Russia, and many others across Europe, Asia, Middle East, and Africa.
