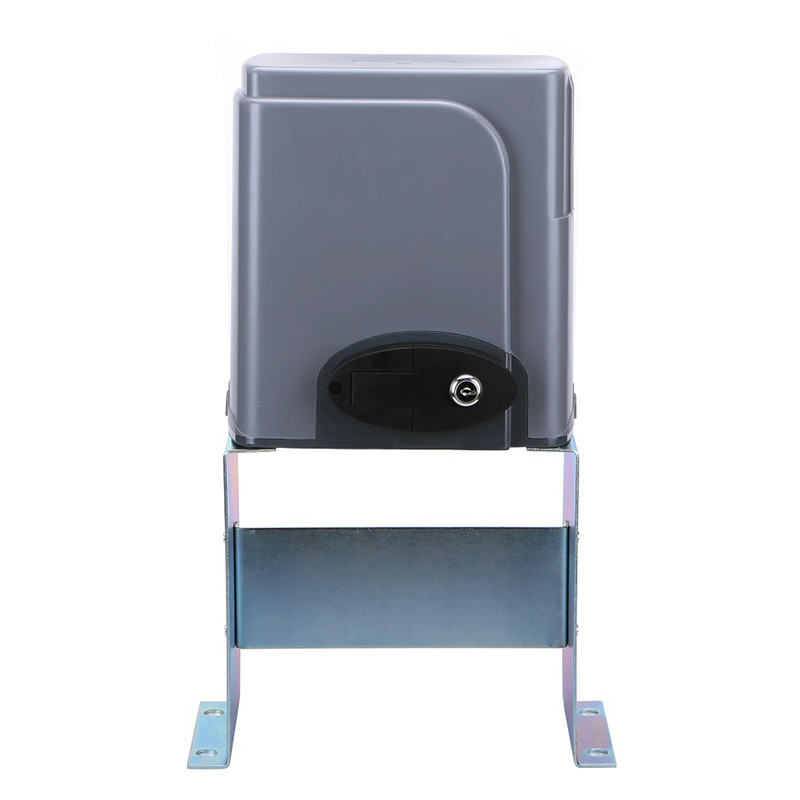

Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
  • Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
  • Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
  • Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply

Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL600ACL
Product Details
Max Gate Weight:
600kg
Power Supply:
AC110V/220V
Motor Power:
280W
Max Gate Length:
8m
Application:
Outdoor
Remote Control Distance:
30M
Highlight:

AC110V/220V Sliding Gates Opener

,

Residential Sliding Gates Opener

,

Chain Drive Sliding Gates Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
10,000 pcs per month
Product Description
SL600ACL Chain Drive Automatic Sliding Gate Opener
Residential sliding gate opener with AC110V/220V power supply, designed for gates up to 600kg and 8 meters in length.
Product Advantages
  • Compact structure with cost-effective design
  • Built-in control board for easy installation
  • Keypad and single button interface options
  • Alarm lamp, photo beam & safety beam interfaces
  • Selectable auto-close function
  • Optional spring limit switch and magnetic limit switch
  • Manual key release for emergency situations
  • Automatic obstacle detection with safety reversal (Smart version)
Main Features
  • AC motor with integrated control unit
  • Keypad/single button control interface
  • Alarm lamp, photo beam and safety beam compatibility
  • Configurable auto-close function
  • Soft start and slow stop operation (Smart version, optional)
  • Auto-reverse safety function during closing (Smart version, optional)
  • Emergency manual key release for power failures
  • Chain driven mechanism with built-in control board
  • RF Hopping Code Technology for secure remote access
  • Handles gates up to 8 meters long and 600kg weight
  • Manual release key for power outages and emergencies
Technical Specifications
Unit Model SL600ACL
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 600KG
Motor Power 280W
Gate Moving Speed 11-13 m/min
Limit Switch Spring (mechanical) / magnetic
Recording of up Remotes 20 pcs / 44 pcs
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 15min
Noise ≤58dB
Work Temperature -20°C~70°C
Gross Weight 16KG
SL600ACL Sliding Gate Opener installation diagram and components
Installation Information
Before You Start
  • SL600ACL Sliding Gate Automation Kit handles gates up to 600kg and 12m length (standard kit includes 6m chain)
  • Gate motion achieved via rotating output sprocket driving chain fitted to moving gate
  • Single press remote control operation for opening and closing with safety features
  • Gate opener must be installed within private property boundaries
Tools Required
  • Tape measure
  • Level
  • 12mm concrete drill and hammer (for expansion screws)
  • Phillips head screwdriver
  • Straight screwdriver
Documentation
Download SL600ACL User Manual
