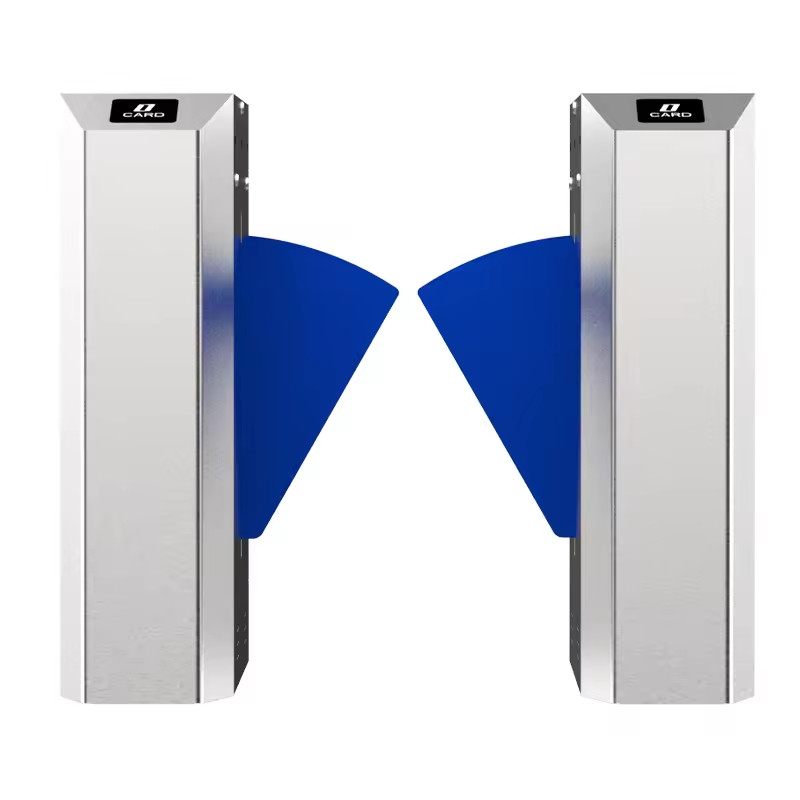

Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier
  • Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier
  • Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier
  • Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier
Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier

Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Size Parameter:
1200 * 300 * 980mm
Motor Voltage:
DC 24V
Passing Direction:
Single Directional / Bi-directional
Power Input:
AC100V~240V; DC24V
Control Signal:
12V Level Signal/Relay Signal
Case Material:
304 Stainless Steel
Highlight:

Ticket System Automatic Pedestrian Access Control

,

DC24V Barrier Pedestrian Access Control

,

Mechanism DC24V Pedestrian Access Control

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description
Ticket System Automatic Pedestrian Access Control DC24V Mechanism Security Gate Barrier
Automatic flap barrier turnstile offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. A direction indicator shows the current access status and guides pedestrians for correct and smooth passage. The flap barrier can be integrated with every access control system, including facial recognition devices, fingerprint scanners, QR readers, and RFID systems.
Access Control Integration
Can be integrated with all kinds of access control systems. Anti-punch feature prevents the barrier from closing if it detects people inside the passageway. Anti-tailgating ensures only one person can pass per authorized card presentation.
Product Advantages
  • Reliable mechanism with powerful BLDC gear motor ensures long-term maintenance-free operation
  • Flap barrier equipped with smart self-diagnosing system
  • Digital control of force and leaf speed combined with safety sensors prevents injury from leaf impact, even during unauthorized passage attempts
  • Sensor system detects passage of persons with luggage or allows free exit without identification
  • Elegant cabinets with integrated LED lighting showing access status and card reader area
  • Same cabinet dimensions for normal (550mm) and wide lane (900mm) configurations
  • Customizable housing design and top lid options
  • Low power consumption
  • Compatible with any type of access control systems
  • Manual leaf opening capability during power failure (fail-safe)
Technical Specifications
Place of OriginChina
Size Parameters1200 × 300 × 980mm (default)
Case Material304 Stainless Steel
Wing MaterialPU Foam Soft Baffle or Acrylic Baffle (optional)
Wing ColorsBlue, Red, Transparent
Channel Width≤ 600mm
Wing Length270mm
Traffic Speed30-35 people/minute
Unlocking Time0.2 seconds
Input Voltage100-240V, 50/60Hz
Drive Voltage24V
Travel DirectionOne-way or Two-way
Light PromptDirectional arrow indication for passage
Opening Signal InputDry contact
Working EnvironmentIndoor and Outdoor (with shelter) -20℃ to 60℃, Relative humidity: ≤90%, non-condensing
Normal Service Life10 million cycles
Main Functions and Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled with built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor stop and delayed reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function cancels authority after prescribed time (default 5 seconds)
  • Gate can be set as normally open or normally closed
  • Compatible with various card readers: IC/ID card readers, bar codes, fingerprints (access controller needed)
  • Configurable as single-direction or bi-directional operation
  • LED direction indicator
  • Automatic opening during power failure and closing when power restored, complying with fire safety requirements
  • Alarm function for illegal intrusion and reverse intrusion
  • Counter function (optional)
  • Support for infrared photocells for anti-pinch and reset functions
Application Areas
  • Banks and insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites
  • Schools, universities and colleges
  • Sensitive sites: military, nuclear, pharmaceutical, computer centers
  • Airports
