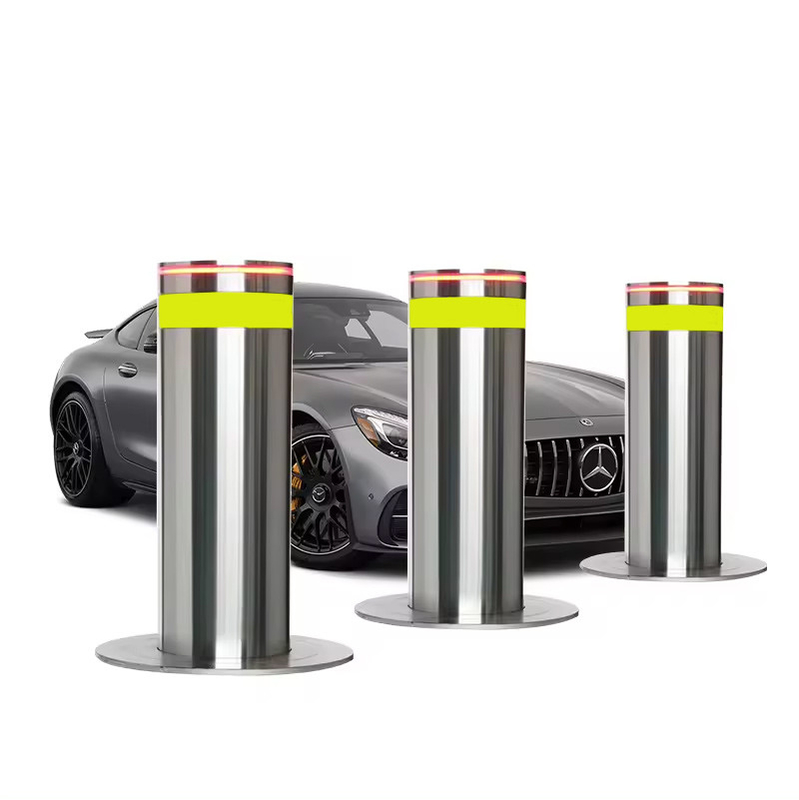

Wide Selection Chinese Made Crash Rated Automatic Retractable Steel Safety Bollards

Automatic retractable bollards provide an ideal safety barrier solution for diverse access control requirements. SINOMATIC serves as your comprehensive source for high-quality, crash-rated automatic bollard systems manufactured in China. We offer an extensive range of stainless steel automatic bollards with various drive styles and mounting configurations, enabling customized solutions for your specific security and traffic management needs.

Automatic bollards are particularly beneficial in locations with changing access requirements. Commercial establishments may retract bollards during peak business hours while maintaining them in raised positions when closed. These systems also effectively manage traffic during special events, including designated bus lane restrictions.

Organizations increasingly prefer bollards over lift gates due to their superior durability and substantial physical barrier capabilities. Additionally, automatic bollards are gaining popularity in residential driveways for their enhanced security advantages.

• Parking Lots and Garages: Effectively manage vehicle access during peak periods and provide secure private parking solutions with on-demand lowering capability.
• Public Facilities: Secure entrances to parks, zoos, museums, and other public spaces during closed hours while allowing vehicle access during operational periods.
• Business Delivery Zones: Reserve parking areas for delivery trucks with retractable bollards that can be lowered when shipments arrive.
• Emergency Access Lanes: Ensure clear access for emergency vehicles at banks, government buildings, and hospitals while maintaining security.
• Private Driveways: Provide enhanced security against unauthorized vehicle access and prevent vehicle theft with convenient automatic operation.

• System: Electric-hydraulic system
• Max passing pressure: 80T to 120T trucks
• Power supply: AC220V 50Hz Integrated (AC110V optional)
• Power: 350W Integrated
• Up time: 4.5 seconds
• Down time: 3 seconds
• Working temperature: -30℃ to 75℃
• Storage Environment: -10℃ to 65℃ (water-proof, damp-proof, dust-proof)
• Material: 304 stainless steel
• Rising height: 600mm standard (Maximum 1000mm)
• Bollard Thickness: 6mm standard (8mm, 10mm, 15mm, 20mm optional)
• Diameter: 219mm Standard (168mm, 273mm, 324mm optional)
• Structure: Load-bearing steel beam column, anti-collision steel beam column, 4 navigation rods
• Integrated electrical mechanism: Stroke 600mm, cylinder outer diameter 60mm, rod diameter: 16mm
• 6k Mirror tube (optional)
• LED light (optional)
• Reflective sticker: 1 or 2 strips
• Link-control interface
• Manual lowering capability during power outages
• IP rating: IP68
• Net Weight: 60±KG Integrated
• Reversible operation during rising and falling
• Device running noise ≤60 decibel
• Waterproof integrated hydraulic device drive
• Double-sealed hydraulic cylinder for waterproof performance
• Hydraulic drive with hydraulic lock
• PLC programming command control box (chip control box optional)
• Solenoid valve voltage: 24V
• Remote control distance: 50m (environment dependent)
• Control box with adjustable text display (Up, Down, Action, Time control adjustable)
• Bilingual text display: Chinese and English
• PLC built-in encryption system
• Water immersion performance: 48 hours without leakage and operational integrity

• High security and anti-collision capability
• Pneumatic air pump in control cabinet provides sustained high power safely
• Electronic control with automatic rise/fall functionality
• High system independence

Multiple color options available for Glossee aveolate reflective band; clearly visible at night with minimal light exposure.

304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.

Anti-skid flange with unique pattern design compatible with various road surface styles. Built-in PA orientation.

Simple integration design compatible with all architectural styles. Excellent workmanship resistant to close attacks.

Founded in 2002, SINOMATIC is a national high-tech enterprise specializing in R&D, production, and sales of intelligent access control products. With nearly 200 patented technologies, our product portfolio includes access control turnstiles, parking barrier gates, automatic gate openers, and anti-terrorism roadblocks suitable for vehicle and personnel access management at government buildings, commercial plazas, residential areas, stations, and customs checkpoints.

SINOMATIC demonstrates strong innovation and R&D capabilities with advanced technology and craftsmanship, leading the industry into the intelligent variable speed interconnection era. As an innovative enterprise, we maintain commitment to building efficient R&D teams to continuously advance technological and product innovation.

Our products are distributed globally with agency service outlets in over 150 countries and regions including the United States, Canada, UK, France, Germany, Russia, India, Singapore, Malaysia, Indonesia, Thailand, Turkey, Israel, UAE, Saudi Arabia, South Africa, Nigeria, and Kenya.

With superior product quality and high-quality after-sales service, "SINOMATIC" has become a world-renowned brand in access control products. We remain dedicated to forging ahead, crafting every product with care, and building trustworthy SINOMATIC quality as a respected Chinese national brand worldwide.
