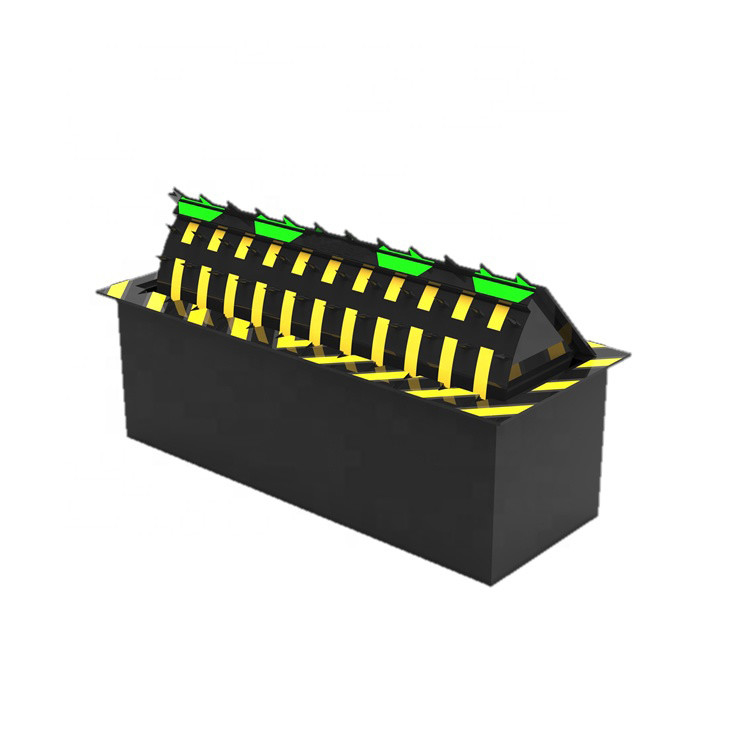

380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier
  • 380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier
  • 380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier
  • 380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier
380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier

380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BL-01
Product Details
Control Voltage:
24V
Power Supply:
3 Phase 380V
Protection Level:
IP68
Starting Time:
≤ 2S
Material:
A3 Steel
Color:
Customizable
Highlight:

110V hydraulic road barrier

,

retractable hydraulic road barrier

,

automatic hydraulic road barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
100 pcs per month
Product Description
Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier
Hydraulic road blockers (also known as anti-terrorism walls) provide high-security vehicle access control. Available in heavy and standard configurations, these barriers prevent unauthorized vehicle entry with exceptional reliability and security. Customizable to meet specific site requirements, they feature emergency release systems for power outages, allowing normal vehicle passage when lowered.
Product Specifications
Control System Electric Hydraulic Control
Voltage 380V (Control Voltage: 24V)
System Power 3.75KW
Minimum Loading 80T
Rising Time 1-3 seconds
Falling Time 1-3 seconds
Length 3-6 meters (Customizable)
Width 1000mm
Height Underground 760mm
Barrier Height 500mm
Spikes φ30mm*90mm (Optional)
Material A3 Steel (Panel/Housing/Spike)
Panel Thickness 16/20/25mm (Optional)
Surface Color Red/Green/Yellow/Black (Customizable)
Anti-rust Treatment 2 Layers Spray Paint
LED Warning Light RGB, Various Dynamic Modes (Optional)
Applications
Hydraulic road blockers are widely deployed at highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial facilities, ports, warehouses, parking lots, and all locations requiring vehicle traffic restriction.
Standard Dimensions
  • L3000×W1000×H760 (Rising Height: 500mm)
  • L3500×W1000×H760 (Rising Height: 500mm)
  • L4000×W1000×H760 (Rising Height: 500mm)
  • L4500×W1000×H760 (Rising Height: 500mm)
  • L5000×W1000×H760 (Rising Height: 500mm)
  • L5500×W1000×H760 (Rising Height: 500mm)
  • L6000×W1000×H760 (Rising Height: 500mm)
Key Features
  • Hydraulic control system with multi-language LCD display
  • Power supply: 380V (control voltage 24V)
  • System power: 3.7KW
  • Pressure capacity: Maximum 120 tons for container trucks
  • Anti-collision rating: K12 (equivalent to 120KM/hour impact resistance)
  • Protection level: IP68 (dustproof and waterproof)
  • Opening/closing time: 3-6 seconds (adjustable)
  • Communication: RS485 ≤ 1200M
  • Elevation range: 450mm-800mm
  • Operating temperature: -45°C to 75°C
  • Storage environment: -10°C to 75°C, rainproof, moisture proof, and dustproof
  • Weight: 2200kg-5500kg (approximately)
Additional Functions
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit coordination
  • Reliable heavy-duty structure with smooth, low-noise operation
  • Reversible operation during rising and falling cycles
  • Hydraulic drive with hydraulic lock mechanism
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system for security
  • Double dynamic double oil pump (2.3ML/time)
  • High-pressure hydraulic hoses with PT international interfaces
380V 220V 110V Electronic Retractable Shallow Mount Automatic Hydraulic Road Barrier 0
