Tyre Killer
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TK02B |
PRODUCT DESCRIPTION

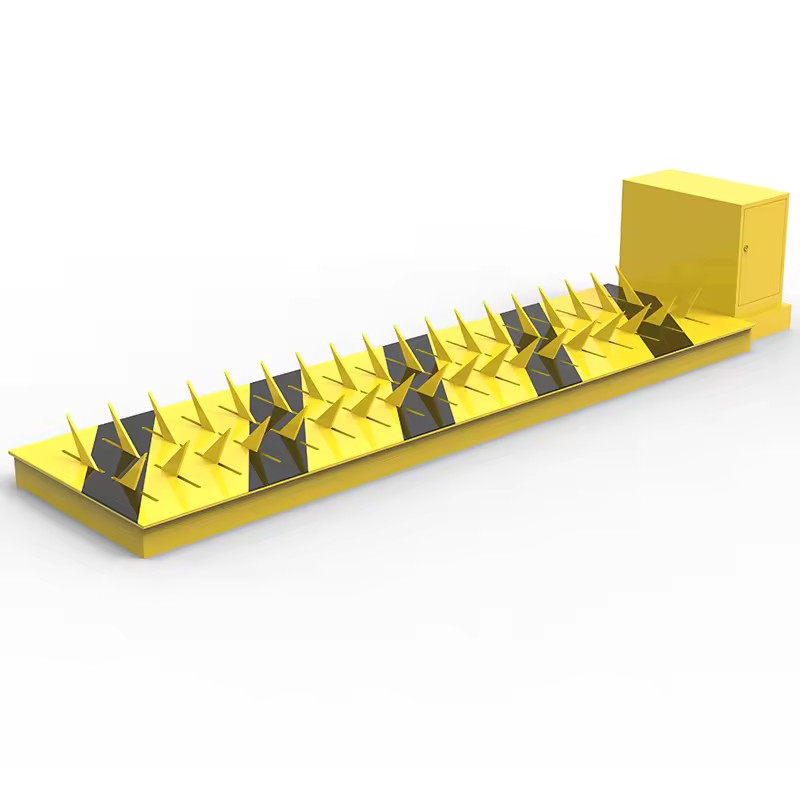

SINOMATIC Tyre Killer SN-TK02B is an electro-mechanically operated heavy duty spike barrier which rises on the ground level by giving a valid input signal and thus prevents unauthorized intrusions at entry/exit points of high security premises. Tyre killers are apt to ensure the safety of workspaces that need high amount of vigilance.
Tyre Killers from SINOMATIC are easy to install and are highly secure vehicle control barriers. They are ideally suited for approach entrances to banks, military areas, airports, dams, power stations, temples, heavy industries. Our tyre killers are designed to puncture tyres and break the axle in case of violent intrusion attempt. Our tyre killers consist of an casing and heavy-duty steel spikes that are determined to destroy tyres, suspension, and axles of a vehicle in case of unauthorized intrusion.
PRODUCT SPECIFICATIONS
|
Place of Origin
|
Shenzhen China
|
|
Material
|
Q235 Carbon Steel(A3 carbon steel)
|
|
Tyre killer length(Intercept Width)
|
1m-6m (customizable)
|
|
Rising Time
|
1S~2S
|
|
Top Plate Thickness
|
10mm(Q235 Material anti-slip decorative pattern board)
|
|
Control system
|
Electric driving
|
|
Mode of Appllication
|
Assembly of Combination Type
|
|
Pressure capacity
|
more than 100 tons of container trucks
|
|
Operating Voltage
|
AC220V 50Hz(110V, 60Hz optional)
|
|
Emergency Manual operation
|
yes
|
|
Working temperature
|
-40℃~+70℃
|
|
Color
|
Standard Yellow/black
|
Feature & functions
1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard A3 carbon steel with strong load-bearing and destructive power.The structure is firm and durable.
2. IP68 military protection standard.
3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and lower cycles, taking much less time and lower level of noise to operate.Typical operating (opening /closing) time is 1-2 seconds.
4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of operation. This is ideal for large car parks or busy sites. Environment protection, low power consumption and high reliability.
5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control, the controller is available to work 30 meters far away from the blocker device(depends on the radio communication environment on site).
6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.
7. Convenient maintenance. It is easy to check, test and fix the problem.
8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can be integrated to the system very easily.
9. It can be installed with other access control elements (for example bollards, road barrier ,turnstiles,fire alarm system,traffic light) in order to achieve an access control check-point at the highest level of security.
10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built in an almost infinite range of thickness and length to suit any roadway or level of security.
FAQ
Q1. What is your terms of payment?
A: T/T, E-checking, West Union, Credit card etc. 50% deposit, and 50% before delivery.
Q2. How about your delivery time?
A: Generally, it takes 5 to 7 days after receiving your advance payment for sameple. The specific delivery time depends on the customized requirements and the order quantity.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: We can supply the sample but need to charge.
Q5.How about your after-sale service and warranty?
A:We provide lifelong after-sale service and technical support, one year warranty. Please always feel free to contact us if you meet any problems
Q6.How to install and maintain the equipment?
A:Our professional engineer will help provide draft construction design according to your specific on site condition. Related installation video show can also be provided.
