Tyre Killer
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TK01U |
PRODUCT DESCRIPTION

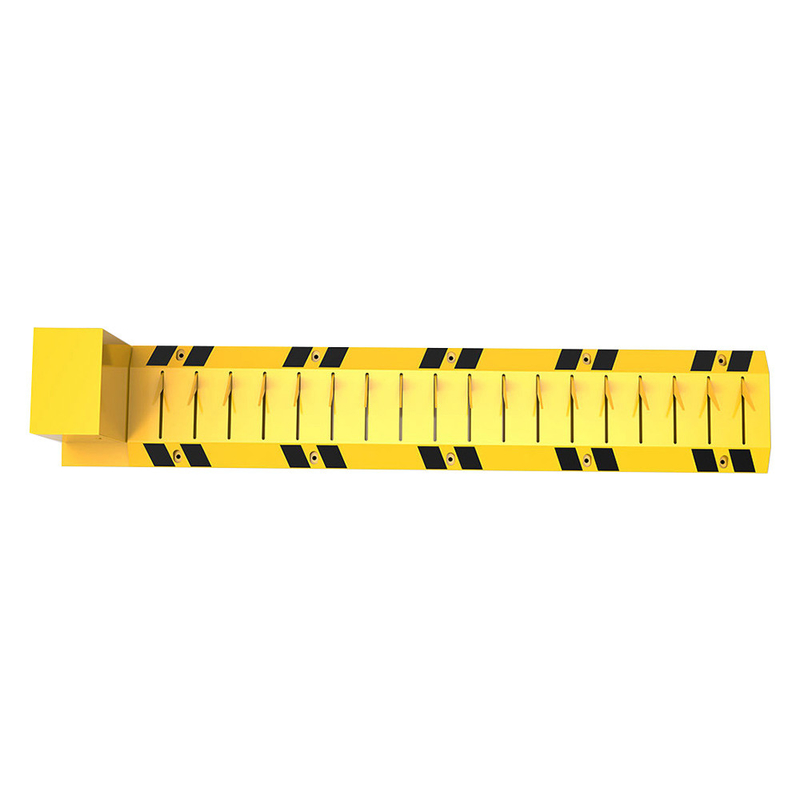

The tyre-killer is made of A3 steel and steel blade(Shape looks like speed bump). It adopts the mechanical and electrical
integration remote control device,easily operated,safe and reliable.It is advanced equipment to intercept forbidden vehicles and terrorist vehicles.
SINOMATIC electromechanical tyre killers are controlled by a PLC. Open/close function can be achieved by every kind of card readers, biometric readers like fingerprint etc, radio control on/off switch or key switch etc. Besides, safety accessories like loop detectors, photocells, flashing lights or red/green light can be integrated to the control electronics very easily.
Feature & functions
1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard A3 carbon steel with strong load-bearing and destructive power.The structure is firm and durable.
2. IP68 military protection standard.
3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and lower cycles, taking much less time and lower level of noise to operate.Typical operating (opening /closing) time is 1-2 seconds.
4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of operation. This is ideal for large car parks or busy sites. Environment protection, low power consumption and high reliability.
5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control, the controller is available to work 30 meters far away from the blocker device(depends on the radio communication environment on site).
6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.
7. Convenient maintenance. It is easy to check, test and fix the problem.
8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can be integrated to the system very easily.
9. It can be installed with other access control elements (for example bollards, road barrier ,turnstiles,fire alarm system,traffic light) in order to achieve an access control check-point at the highest level of security.
10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built in an almost infinite range of thickness and length to suit any roadway or level of security.
SPECIFICATIONS
| ITEM | SPECIFICATIONS |
|---|---|
| Application range | Intersection safe protection in main area |
| Material | Q235 steel/A3 steel |
| Surface treatment | Paint with reflective stripe |
| IP | IP68 |
| Standard color | Black and yellow(default) |
| Length | 1m to 6m |
| Width | 520mm |
| Height from ground | 70 to 90mm |
| Max weight capacity | 80T |
| Blade height | 150mm |
| Blade thickness | 10mm |
| Operation mode | Electromechanical |
| Working environment | -40℃~+75℃ |
| Control mode | Short range wireless remote control/drive-by-wire |
| Control distance | ≤100M |
| Up/Down speed | 1s to 2s |
| Voltage | 220V/110V |
FAQ
Q1. What is your terms of payment?
A: T/T, E-checking, West Union, Credit card etc. 50% deposit, and 50% before delivery.
Q2. How about your delivery time?
A: Generally, it takes 5 to 7 days after receiving your advance payment for sameple. The specific delivery time depends on the customized requirements and the order quantity.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: We can supply the sample but need to charge.
Q5.How about your after-sale service and warranty?
A:We provide lifelong after-sale service and technical support, one year warranty. Please always feel free to contact us if you meet any problems
Q6.How to install and maintain the equipment?
A:Our professional engineer will help provide draft construction design according to your specific on site condition. Related installation video show can also be provided.
