RS485 Port Bluetooth Interface Online Debugging Vehicle People Detector Sensor

Product description

1) Can replace loop detector completely- no wiring layout, save time and cost.

2) Simple use & parameters setting- just need a cellphone, wireless connecting and debugging.

3) Robust performance - work in range of 79Ghz without effects from any climatic environment. IP66 waterproof.

4) Effectively detect - can detect vehicles and humans to avoid any hitting.

5) High quality material: Imported chips & IG components

6) Straight arm use only!!!

Why choose 79GHz mmWave barrier radar detector?(Compared to the traditional barrier gate loop detector)

1) Can replace loop detector completely; no surfacing work necessary.no wiring layout, save time and cost.

2) Easy installation in barrier gate housing due to the compact design, easy parameters setting; Adjustable distance from 1 to 6m.

3) Work in range of 79Ghz without effects from any climatic environment.

4) Can effectively distinguish vehicles and humans to avoid any hitting.

5) Can be used for trigger detection, e.g. trigger camera to capture the picture.(trigger type radar)

6) Can be used to trigger the alarm in the warning zone.(trigger type radar)

7)Bluetooth Upgrade or debugging.Simple control of barrier systems.

8) Robust sensors with long service life. Protection class IP66.

9) More compact size and more higher resolution compared with 24Ghz radar sensor, better distinguish and judge whether the car is following and whether it is within the set detection range.

More convenient features

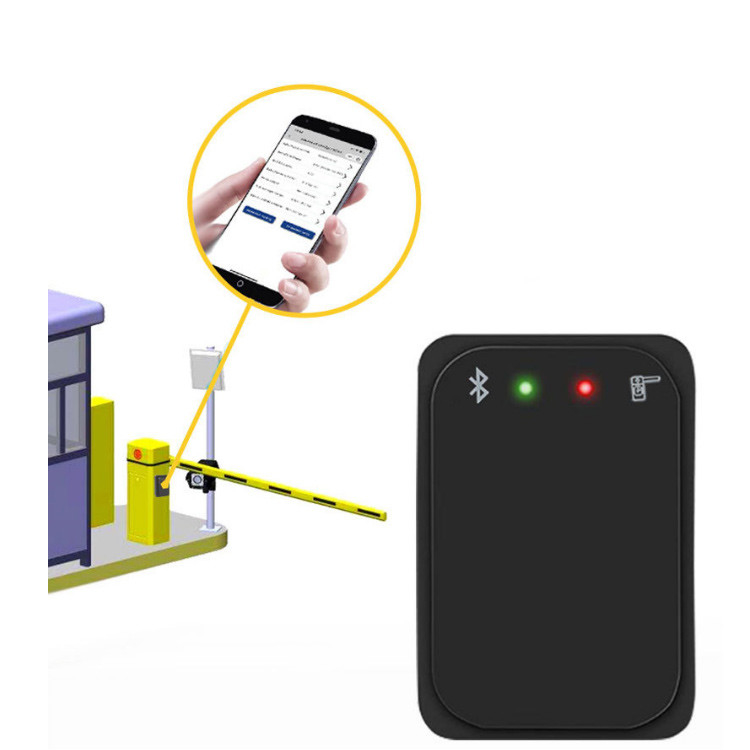

Mobile APP debugging
Suitable for all boom types
No need to cut the road and bury the coil during installation

PRODUCT SPECIFICATIONS

MAIN FEATURES

LED indicators: There are two LED indicators on the surface of the front of radar. The red LED is the power state lamp which will stay on when the power supply is turned on. The green LED is the operating status lamp which will be automatically trigger on when objects detected in the access area and it goes off when there is no objects.

Detection Zone configuration: The default detection Zone of the radar is 3 meters forward times 0.5 meters on the left and right sides. Different detection areas can be configured via mobile APP or debugging software running on uphost computer.

Configuration parameters saving and reload: Configuration such as detection area could be automatically saved, and the latest configuration parameters after power failure and restart will be reloaded

Firmware upgrade: The firmware can be upgraded online through RS-485 or APP interface with host computer without taking off the cover board and the new firmware can take effect just by restarting the power of radar

Stable performance: Millimeter wave radar sensing capablity stay nearly the same under different light illuminations, climates such as rain, fog or snow and dust.
