79GHz Frequency Millimeter Wave Antenna Parking Barriers Anti-Smashing Radar Detector
Anti-crash Radar for Safer Parking Management
- High detection accuracy with centimeter-level precision
- Pedestrian detection capability to prevent accidents
- Vehicle driving direction determination
- High detection probability exceeding 99.9% for vehicles
- Flexible detection area configuration
- Expandable functions including differentiated model recognition
- Target height measurement to reduce false triggers
Product Function
This barrier gate control radar is specifically developed for entrance and exit management of parking lots and underground garages. By cooperating with the main control board of the gate control system, it precisely controls the rising and falling of barrier booms, effectively preventing accidental injuries to vehicles or pedestrians within the radar field of view, and enabling intelligent anti-smashing protection.
The radar employs a highly integrated RF chip SOC solution, featuring compact size, cost-effectiveness, all-weather operation capability, high detection sensitivity, precision accuracy, easy installation and debugging, along with excellent stability and reliability.
Operating at 79GHz frequency with Linear Frequency Modulation and Continuous Waveform technology, the radar achieves up to 4GHz of available bandwidth. The MIMO array antenna design provides superior angular resolution and high angle measurement accuracy.
This product accurately identifies and distinguishes between pedestrians, vehicles, and other targets passing through the barrier boom area, effectively preventing accidents involving vehicle damage, personal injury, or improper boom operation.
Product Advantages
- High detection accuracy with centimeter-level precision
- Pedestrian detection capability to prevent accidents
- Vehicle driving direction determination
- High detection probability exceeding 99.9% for vehicles
- Flexible detection area configuration
- Expandable functions including differentiated model recognition
- Target height measurement to reduce false triggers
Convenience Features

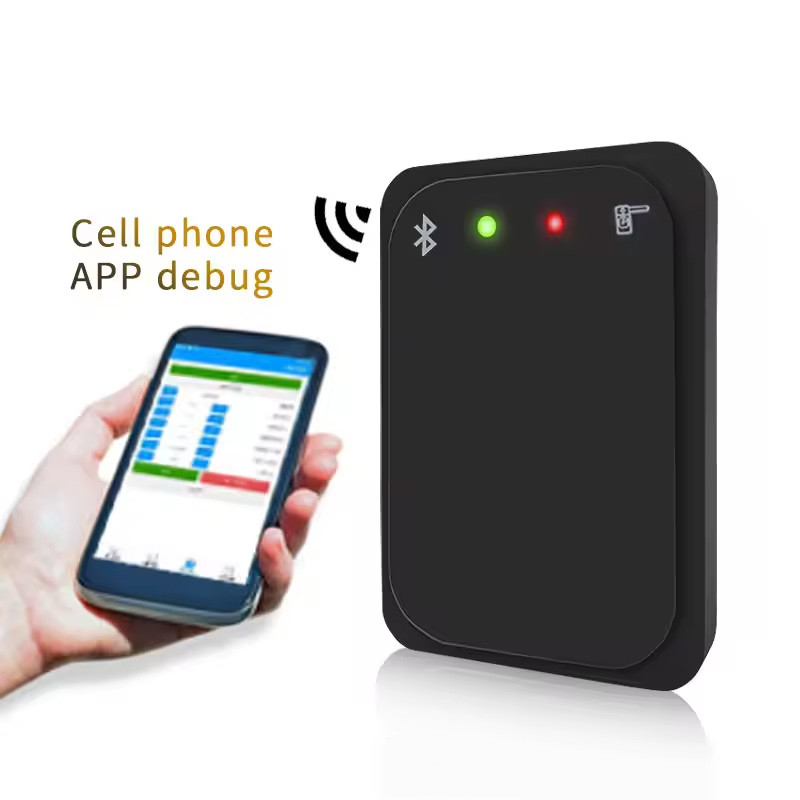

- Mobile APP debugging capability
- Compatibility with all boom types
- No road cutting or coil burial required during installation
Product Specifications
| Place of Origin |
China |
| Province |
Guangdong |
| Brand Name |
SINOMATIC |
| Product Name |
79GHz Anti-smashing Radar |
| Connection Interface |
RS485/Bluetooth |
| Technology |
Millimeter Wave Radar |
| Working Frequency |
77-81GHz |
| Detection Scope |
Up to 6 meters |
| Working Voltage |
10-16V |
| Description |
Easy installation, Vehicle detection radar sensor |
| Operating Temperature |
-40℃ to 85℃ |
| Average Power Consumption |
< 2.5W |
| Waterproof Class |
IP67 |
Main Features
LED Indicators
Two LED indicators are located on the front surface of the radar. The red LED serves as the power status indicator, remaining illuminated when power is supplied. The green LED indicates operating status, automatically triggering when objects are detected in the access area and turning off when no objects are present.
Detection Zone Configuration
The default detection zone spans 3 meters forward with 0.5 meters coverage on both left and right sides. Different detection areas can be configured via mobile APP or debugging software running on a host computer.
Configuration Parameters Saving and Reload
Detection area configurations are automatically saved, and the latest parameters are reloaded after power failure and restart.
Firmware Upgrade
Firmware can be upgraded online through RS-485 or APP interface with a host computer without removing the cover board. New firmware takes effect after restarting the radar power.
Stable Performance
Millimeter wave radar sensing capability remains consistent under varying light conditions, weather elements including rain, fog, snow, and dust environments.
