Semi-Auto Tripod Turnstile Gate Pedestrian Access Control Reader 0.3S Response Time
  • Semi-Auto Tripod Turnstile Gate Pedestrian Access Control Reader 0.3S Response Time
  • Semi-Auto Tripod Turnstile Gate Pedestrian Access Control Reader 0.3S Response Time

Semi-Auto Tripod Turnstile Gate Pedestrian Access Control Reader 0.3S Response Time

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT-M12
Product Details
Control Voltage:
Control Signal:
Dry Contact/ Relay
Pass Speed:
30 Person Per Minute
Working Environment:
Indoor/ Outdoor
Housing / Arm:
304 Stainless Steel
Response Time:
High Light:

Semi-Auto Tripod Turnstile Gate


Access Control Tripod Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, Paypal
Supply Ability
1,000 pcs per month
Product Description

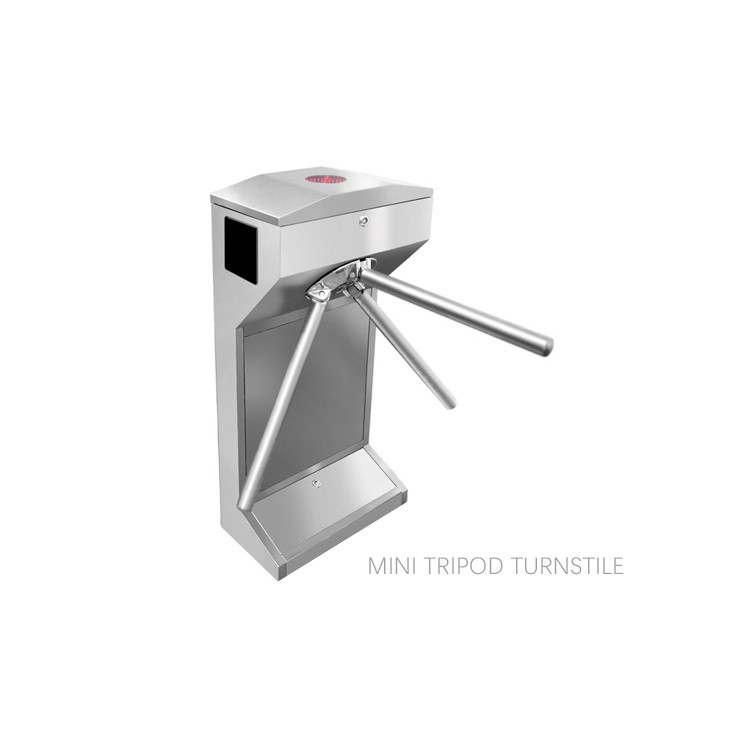

SN-TT-M12 semi-auto mini tripod turnstile is a type of pedestrian gate typically installed at the entrance with an access control reader to restrict unauthorized access while maintaining a welcoming atmosphere. No luggage will be allowed to pass through. SN-TT-M12 offer the smallest size best anti-tailgating among all pedestrian gate.


Tailgating is a common problem in other brand turnstiles where multiple users follow through the turnstile with a single valid card. How can you solve this security loophole at the entrance to avoid defeating the purpose of installing a turnstile?


SN-TT-M12 can minimize this problem with our smart lock DLAR (Dual Level Anti Reverse) technology and SPT alarm. DLAR can ensure 1 card can only allow 1 person to pass through at a time. SPT alarm is a Single Pass Timer to ensure each person will not have extra time to attempt tailgating.




SINOMATIC SN-TT-M12 is suitable for indoor and also suitable to be installed outdoor or near sea side. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, stadium, game park, banks and etc.




Description Parameter
Power Supply Input AC220/110V (± 10%)
Power Voltage 24 V DC
Power Consumption During Idle

AC : 0.07 Amp

DC : 0.16 Amp

Power Consumption During operation

AC : 0.02 Amp

DC : 0.72 Amp

Passage width 60 cm
Response Time 0.3 second
Pass Speed 30 person per minute
Housing / Arm 304 Stainless Steel
Internal Mechanism Mild Steel
Arm Disc Alloy chromed
Working temperature -25℃- 60℃




1. Tripod security gate is a compact and cost-effective entrance solution.

2. Tripod security gate has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, durable.

3. Tripod security turnstile can be mounted for both indoor and outdoor locations. The IP rate is 44

4. It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer).

5. This model of Tripod security gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.

6. Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life

7. The mechanism is mold design. All the components are precise. It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.

8. The design of the tripod security turnstile makes only one person pass at one time.


9. Single-directional or Bi-directional is supported.


10. LED directional indicator light on top of the housing

11. Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.

12. When power off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.



Recommended usage capacity is 10,000 rotations per day. Continuously exceeding this limitation may cause a few movable components to experience faster wear and tear than normal rate. Serviceable internal parts are as follows:

a) Solenoid lock

b) Roller bearing and spring

c) Shock absorber

d) Limit switch


Semi-Auto Tripod Turnstile Gate Pedestrian Access Control Reader 0.3S Response Time 0
