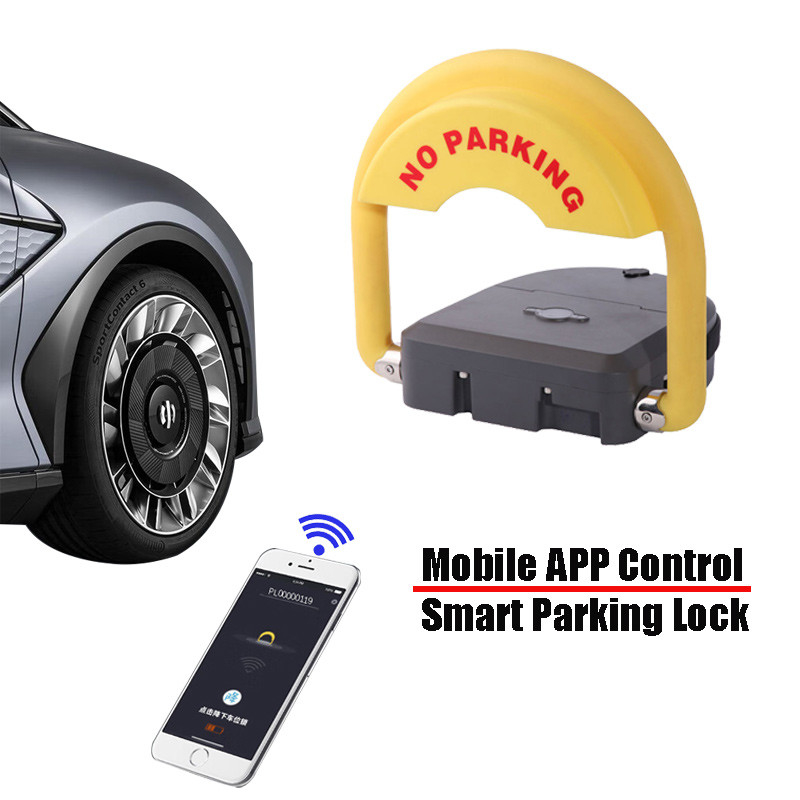

Mobile App Control Automatic Parking Lock
DC 12V Bluetooth Gateway with 4G SIM Card Connectivity
Product Overview
Automatic parking lock designed for all types of parking spaces. This security solution protects your parking space by standing guard while you and your vehicle are away. You can feel confident that no unauthorized vehicles can occupy your space and cause inconvenience.
Technical Specifications
| Specification |
Details |
| Supply Voltage |
DC 12V |
| Dimension |
357×370×82.5mm |
| Current |
0.4A |
| Running Time |
4s~6s |
| Arm Up Height |
340mm |
| Arm Down Height |
82.5mm |
| Working Temperature |
-30°C ~ +55°C |
| Remote Distance |
≤15M |
| Weight Bearing |
Max 8 tons |
| IP Rating |
IP68 |
Key Features & Benefits
Energy-saving: High-capacity battery provides up to six months of operation on a single charge.
Hermetic Design: IP68 rated cabinet ensures complete waterproof and dustproof protection.
Auto-repositioning: Arm automatically returns to vertical position when forced horizontally, unless controlled remotely.
Noise-free Operation: Bearing transmission motor design ensures quiet performance with minimal friction.
Easy Installation: Four pre-drilled holes at the bottom facilitate simple setup.
Safety Features: Anti-disconnect power connection design prevents short circuits and ensures safe battery installation.
Durable Construction: Die-cast zinc alloy cabinet with varnish coating provides weather resistance; fiber-reinforced nylon arm withstands vehicle pressure without deformation.
Emergency Manual Operation: Manual override available during power failure or system malfunction.
Dark Indicator: Red LED indicators at both ends provide visibility in low-light conditions for safety.
Charge Reminder: Internal alert system notifies when battery requires recharging.
Burglarproof Design: Internal mounting bolts require key access for security.
Waterproof System: Sealed control system and external connections provide complete water protection.
Installation Guidelines
Installation Spot: Position at the center of the parking space for optimal performance.
Installation Ground: Install on dry, smooth concrete surface with minimal radio signal interference.
Installation Steps:
- Drill four 10×5mm holes in the ground
- Use provided expansion bolts to secure the unit
- Follow included drawings for proper positioning
- Complete installation with cover placement
Ordering & Production Details
| Detail |
Information |
| Minimum Order Quantity |
1 set |
| Shipping Ports |
Shenzhen, Guangzhou and others |
| Payment Terms |
T/T, Western Union, Credit Card, Ali Pay |
| Production Capacity |
3000 Sets/Month |
| Lead Time |
5 days |
| Package |
Carton box |
Frequently Asked Questions
How many models of parking lock do you have?
New Zinc-alloy Parking Lock model, Solar Parking Lock model, Common parking lock.
How many remote controls are included with each parking lock?
2 pieces
What is the waterproof grade?
IP68
Can express delivery be used for parking lock shipment?
Yes, but batteries must be removed due to shipping restrictions.
What is your warranty policy?
1-year time warranty.
