Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE |
Model Number | ITS-AX2 |
Product performance description

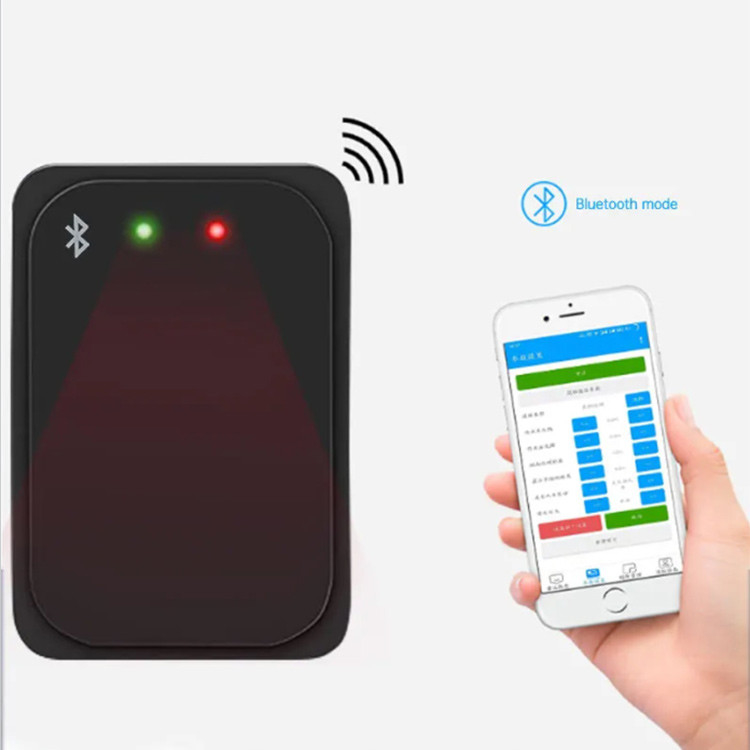

79G millimeter wave radar is a more intelligent detection device developed for parking lot. It does not need complex wiring construction work, but only needs to be drilled and installed on the landing bar. It can adjust the trigger range and Angle through Bluetooth connection to the mobile APP, and can learn the surrounding environment, identify obstacles, explore and detect.
79G millimeter wave radar adopts waterproof rubber seal ring, excellent waterproof effect, easily adapt to all kinds of bad weather.
Loop detection can only detect large devices such as cars and trucks through magnetic fields, while 79G millimeter wave radar is better because it can detect objects such as pedestrians, children and motorcycles.
The radar mapping range can be changed and adjusted anytime and anywhere through the small program of Bluetooth APP. There is no need to worry about the problem of unable to adjust the equipment status after construction
Anti-crash radar, make parking management safer
1. High detection accuracy, error of up to centimeters .
2. It can detect pedestrians and avoid hitting people.
3. Driving direction can be determined.
4. High detection probability, more than 99.9% of the car.
5. The detection area can be set flexibly.
6. Powerful functions such as differentiated models can be expanded.
7. Can measure the target height information to reduce the virtual scene.
More convenient features
Mobile APP debugging
Suitable for all boom types
No need to cut the road and bury the coil during installation
PRODUCT SPECIFICATIONS
Place of Origin | China |
Province | Guangdong |
Brand Name | SINOMATIC |
Product name | 79Ghz Anti-smashing radar |
Connection Interface | RS485/Bluetooth |
Theory | Millimeter wave radar |
Working frequency | 77~81GHz |
Detection scope | up to 6 m |
Working voltage | 10-16V |
Description | Easy installation, Vehicle detection radar sensor |
Operating temperature | -40℃-85℃ |
Average power consumption | < 2.5W |
Waterproof class | IP67 |
MAIN FEATURES
LED indicators: There are two LED indicators on the surface of the front of radar. The red LED is the power state lamp which will stay on when the power supply is turned on. The green LED is the operating status lamp which will be automatically trigger on when objects detected in the access area and it goes off when there is no objects.
Detection Zone configuration: The default detection Zone of the radar is 3 meters forward times 0.5 meters on the left and right sides. Different detection areas can be configured via mobile APP or debugging software running on uphost computer.
onfiguration parameters saving and reload: Configuration such as detection area could be automatically saved, and the latest configuration parameters after power failure and restart will be reloaded
Firmware upgrade: The firmware can be upgraded online through RS-485 or APP interface with host computer without taking off the cover board and the new firmware can take effect just by restarting the power of radar
Stable performance: Millimeter wave radar sensing capablity stay nearly the same under different light illuminations, climates such as rain, fog or snow and dust.
