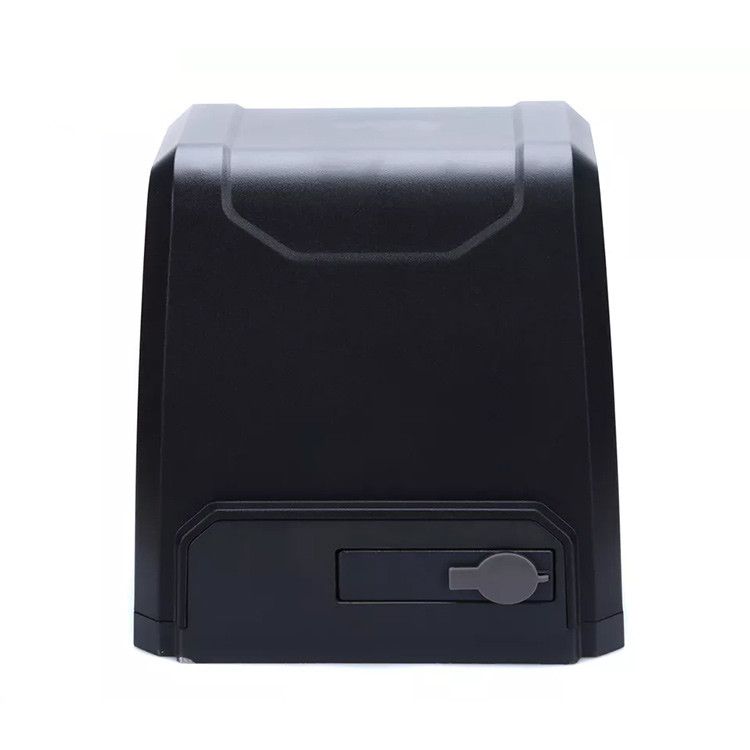

2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator
  • 2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator
  • 2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator
  • 2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator
2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator

2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL2000AC
Product Details
Model:
SL2000AC
Motor Power:
750W
Power Supply:
220V/110V (±10%)
Color:
Grey Or Black
Limit Switch:
Spring Or Magnetic
Work Temperature:
-20°C~70°C
Soft Start:
Supported
Soft Stop:
-20°C~70°C
Highlight:

Heavy Duty AC Motor 750W

,

Automatic Sliding Gate Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator
The SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener is engineered for commercial and industrial applications, capable of handling gate weights up to 800/1000/1500/2000kg with operating distances up to 12 meters.
Gate movement is achieved through the rotating output gear of the gate opener driving the gear rack (sold separately) attached to the moving gate.
Main Features
  • AC motor with integrated control unit
  • Keypad and single button interface options
  • Alarm lamp, photo beam, and safety beam interfaces
  • Configurable auto-close function
  • Soft start and slow stop capabilities (smart version, optional)
  • Auto-reverse safety feature when encountering obstacles during closing (smart version, optional)
  • Manual key release for emergency power failure situations
  • Gear-driven mechanism with built-in control board
  • RF Hopping Code Technology for enhanced security
  • Manual release key operation during power outages
  • 4-button remote control for open/close/stop functions
  • Expandable system supporting up to 25 additional remotes
Product Advantages
  • Compatible with multiple access control systems including infrared sensors, remote controls, face recognition, card readers, and Bluetooth
  • Adjustable holding time, speed, and strength parameters
  • Resistance reversal function with optional infrared secondary protection
  • Fire fighting linkage capability
Technical Specifications
Type SL800AC SL1000AC SL1500AC SL2000AC
Power Supply 220V/50Hz; 110V/60Hz
Max. Gate Weight 800Kg 1000KG 1500Kg 2000KG
Motor Power 370W 400W 550W 750W
Gate Moving Speed 11-13 m/min
Limit Switch Spring (mechanical) / magnetic
Recording of up Remotes Standard control board: 25; Intelligent control board: 40
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 20min
Noise ≤58dB
Work Temperature -20°C~70°C
Product Applications
Ideal for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, and other facilities requiring contactless automatic door operation.
Product Installation
The SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is designed for gates weighing less than 800kg/1000kg/1500kg/2000kg with sliding lengths under 12 meters. The drive system utilizes rack and gear transmission. For optimal protection, the gate opener must be installed inside the enclosure or yard.
Installation Procedures
Preparation Work Before Installation
Ensure the sliding gate is properly installed, the gate rail is level, and the gate moves smoothly manually before proceeding with gate opener installation.
Cable Installation
For reliable operation and cable protection, bury the motor & power cable and controlling cable separately using two PVC tubes.
Concrete Pedestal
Precast a concrete pedestal measuring 500mm x 300mm with a depth of 250mm to securely mount the gate opener. Verify the distance between the gate and gate opener is appropriate before casting the pedestal.
Main Engine Installation
a) Remove the plastic housing from the main engine before installation and store all fasteners securely
b) Prepare power lines for connecting the mounting plate to the main engine (minimum 3-core cable with cross-sectional area over 1.5mm²)
c) Unlock the main engine before installation by removing the rubber key cover, inserting the key, and opening the manual release bar until it rotates 90°
2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator 0 2000KG Heavy Duty AC Motor 750W Automatic Sliding Gate Operator 1
For complete installation instructions and operational details, download the comprehensive user manual:
Download SL800,1000,1500,2000AC User Manual
