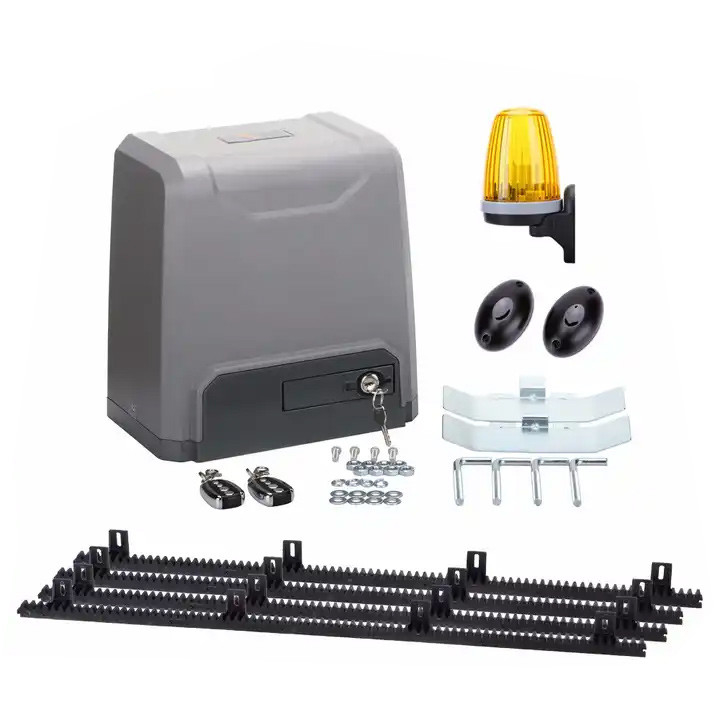

2000kg 750W Sliding Gate Operator with Magnetic Spring Limit Switch
2000kg 750W Grey Black Color Magnetic Spring Limit Switch Gear Driving Sliding Gate Operator Opener
Product Overview
The SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener is engineered for commercial and industrial applications, capable of handling gate weights up to 800/1000/1500/2000kg with an operating distance of up to 12 meters.
Main Features
- AC motor with integrated control unit
- Keypad and single button interface options
- Alarm lamp, photo beam and safety beam interfaces
- Configurable auto-close function
- Soft start and slow stop capabilities (smart version, optional)
- Auto-reverse safety feature when encountering obstacles (smart version, optional)
- Manual key release for emergency power failure situations
- Gear driven mechanism with built-in control board
- RF Hopping Code Technology for enhanced security
- Emergency manual release key operation
- 4-button remote control for open/close/stop functions
- Supports up to 25 additional remote controls
Key Advantages
- Compatible with multiple access control systems including infrared sensors, remote controls, face recognition, card readers, and mobile Bluetooth
- Adjustable holding time, speed, and force parameters
- Obstacle detection with optional infrared secondary protection
- Fire fighting linkage capability
Technical Specifications
| Model |
SL2000AC |
| Driven Mode |
Gear |
| Opening Speed |
13m/min |
| Motor Power |
750W |
| Remote Control Mode |
Single button |
| Output Torque |
22N.m |
| Work Duty |
S2 20min |
| Limit Switch |
Magnetic or spring limit switch |
| Max. Gate Weight |
2000KG |
| Remote Control Range |
≥30M |
| Remote Controls Capacity |
Max. 25 remote transmitters |
| Frequency |
433.92Hz |
| Noise (No Load) |
≤58dB |
| Output Shaft Height |
50mm |
| Working Temperature |
-20℃~70℃ |
| Power Supply |
220V/50Hz (Optional: 110V/60Hz) |
| Package Weight |
17.5KG |
| Standard Configuration |
1 motor, 1 built-in control board, 2 remote controls, 2 keys |
| Optional Accessories |
Photocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button |
Related Models
Soft Start Soft Close Sliding Gate Opener
Applicable swing door: 600kg, 800kg, 1000kg, 1500kg, 2000kg
Remote control distance: 30m
Gate moving speed: 11-13m/min
Working temperature: -20℃~+70℃
Warranty: 2 years
Motor voltage: 220V,50Hz/110V,60Hz
Power: 150W-750W 600KG-2000KG
Applications
Ideal for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, and more. Enables contactless automatic door opening and closing operations.
Installation Requirements
The SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is designed for gates weighing less than 800kg/1000kg/1500kg/2000kg with a sliding distance under 12 meters. The drive system utilizes rack and gear transmission. This unit must be installed inside the enclosure or yard for optimal protection.
Installation Procedures
Pre-Installation Preparation: Ensure the sliding gate is properly installed, the gate rail is level, and the gate moves smoothly manually before installing the opener.
Cable Installation: For optimal performance and cable protection, bury the motor & power cable and controlling cable separately using two PVC tubes.
Concrete Pedestal: Precast a concrete pedestal measuring 500mm x 300mm with a depth of 250mm to securely install the gate opener. Verify appropriate distance between the gate and opener before casting.
Main Unit Installation: Remove plastic housing before installation; prepare appropriate power lines (minimum 3 cores, 1.5mm² cross-section); unlock main unit using manual release key before installation.
Complete Documentation: For comprehensive installation and operation details, download the complete user manual.
Download SL800,1000,1500,2000AC User Manual (PDF)
