Barrier Gate Anti Smash Radar Detector Sensor Vehicle Human Detection

Advanced Nice Barrier Gate Vehicle Human Detection Anti-Smash Radar Detector Sensor

PRODUCT DESCRIPTION

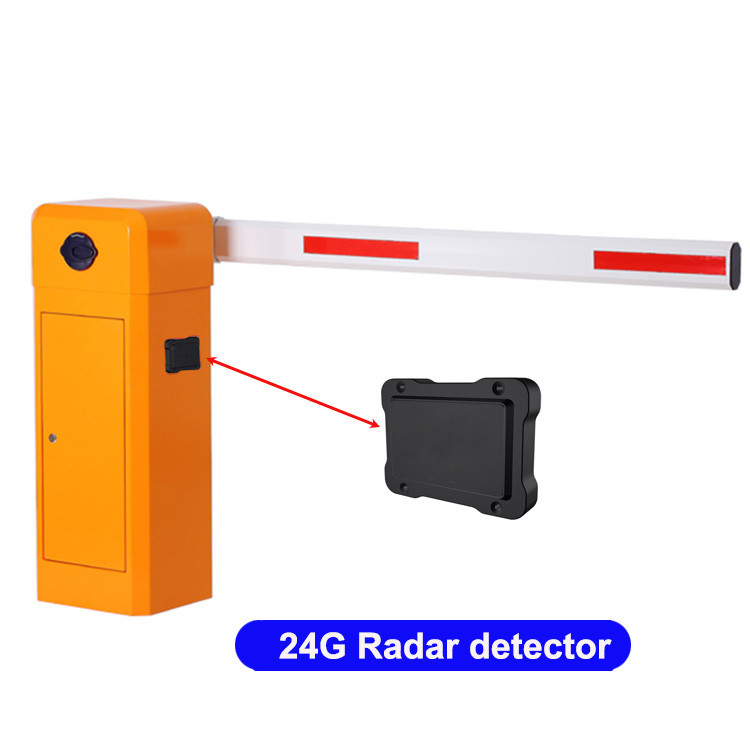

Shenzhen Sinomatic 24Ghz Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band. The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing on the target's reflected echoes to achieve fast target Detection.

The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.

The equipment can work continuously day and night under the specified conditions, and the Mean Time between Failure (MTBF) meets: MTBF≧15000 h.

PRODUCT SPECIFICATIONS

2.1 Specifications
* Center Frequency: 24 GHz;
* Vertical Detecting Width: 43°;
* Horizontal Detecting Width: 11°;
* Coverage Range: 0 m～6 m;
* Distance Adjustment Range: 2.0 m～6 m (8 levels);
* Response Time: 100ms;
* Signal Output: switching value.

2.2 Detection Accuracy
* Vehicle Inspection Miss Rate: 0.1%;
* Pedestrian Detection Miss Rate: 0.1%;
* False Detection Rate: 0.05%.

2.3 Mechanical Properties
* Dimensions: 105 mm×78 mm×26 mm;
* Weight: 85g;
* Waterproof: IP65
* Supply Voltage Range: DC 6V～18V
* Supply Current: less than 90 mA/12V.
* Operating temperature: -40℃～+85℃;
* Humidity: relative humidity 99% at 25℃.

Key Features

a) Blind Zone without Detection Distance
b) All-weather Work
c) Detection Accuracy
d) Work Reliability
e) Installation Flexibility
f) Low Cost to Install and Maintain
g) Convenient Power Supply
h) Use Environment Adaptability

Installation Instructions

a) According to the application type of straight pole or billboard barrier, determine the installation direction of radar detector ;

b) Drill 4 screw holes with a diameter of Φ4.8 and a cable hole with a diameter of Φ5.5 on the mounting plate of the radar detect

c) After the cable is covered with a sealing ring, it is connected to the body of the barrier gate cabinet through the cable hole, and 4 screws are inserted into the fixing hole of the radar and the sealing ring is covered, and then the radar is connected to the mounting plateP a g e | - 8 -
in turn;

d) Put washers and fixing nuts on the four connecting screws in order and tighten them to ensure that the radar is fixed reliably. For straight boom barrier and barriers with billboards/fences, the installation method of the barrier radar is different.
