Tripod Turnstile Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TT02 |

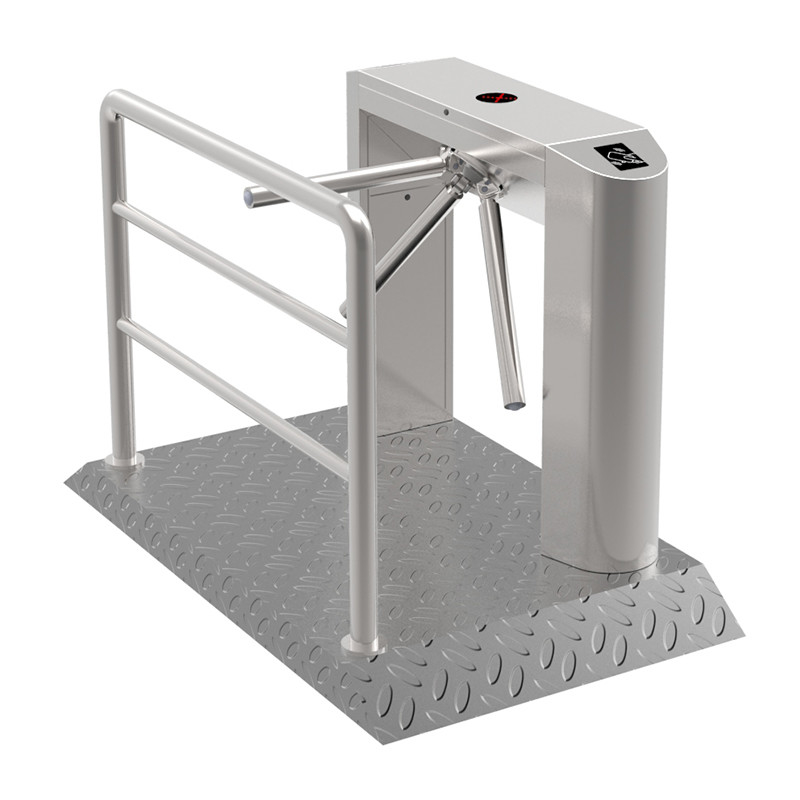

Portable Aluminum Base Plate Pedestrian Access Control RFID reader Automatic Tripod Tunrstile
Product description
Tripod turnstile gates offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.
The tripod turnstile drop arm turnstile is an attractive tripod turnstile gate that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
TECHNICIAL SPECIFICATIONS
| Model | SN-TT02 |
| Brand | SINOMATIC |
| Size/Stick length | 1200*280*980(mm)/free of case 510(mm) |
| Arm length | 500mm(norm) |
| Material | SUS304 thickness(1.2mm) |
| Input Voltage | 110V/220V ±10% |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 50kg |
| Traffic speed | 30 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤600mm |
| Operating temperature | -30℃—+70℃ |
| Communication interface | Dry contact |
| Working environment | indoor and outdoor |
MAIN FUNCTIONS AND FEATURES
1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and
reduce maintenance cost.
2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will
auto-rotate back to the current idle position.
3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed
lightly to rotate therefore even elderly or children are able to use the turnstile.
4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid
tampering.
5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.
(Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact
when running.
9. Auto-reposition function: After card read, passengers don't pass within regulated time period, turnstile will be
locked automatically
10. When power off, arm will be dropped automatically
