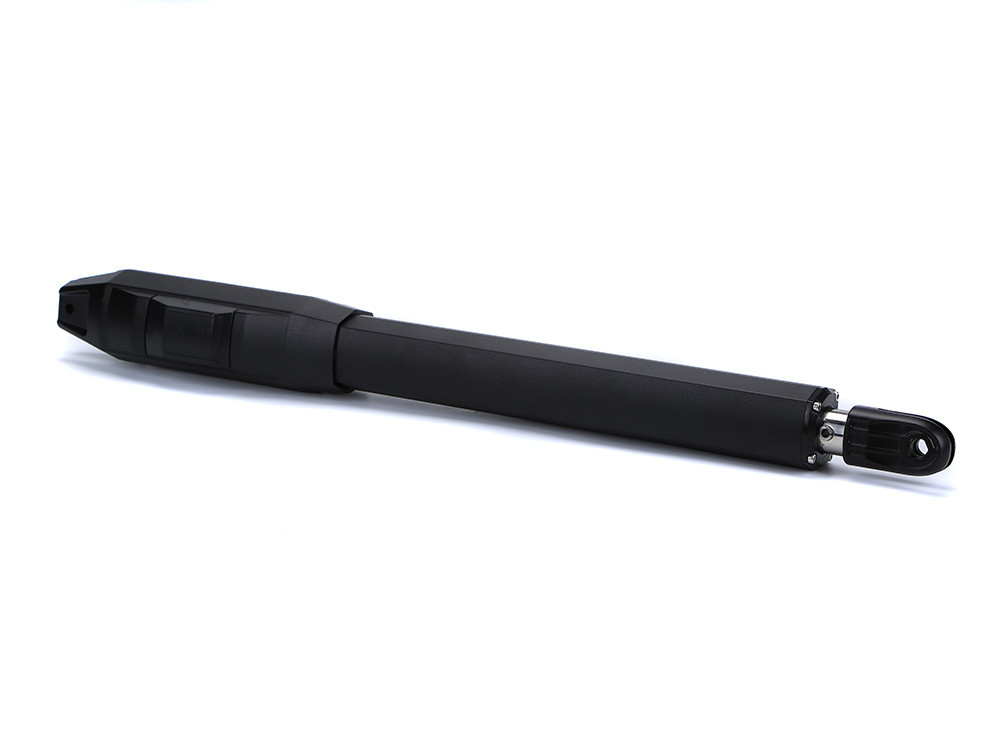

30m Remote Control Distance Storage Battery Optional Automatic Swing Gate Opener
PRODUCT DESCRIPTION
SW200DC swing gate opener is applicable to single leaf gate weight less than 200kg, and the length shorter than 2m. The drive mode adopts planetary transmission to combine with the screw rod transmission. This gate opener must be installed inside the enclosure or yard for protection.
TECHNICIAL SPECIFICATIONS
Model SW200DC
Power supply 220V/50Hz;110V/60Hz
Motor power 30W
Gate moving speed 18~22s/ 90° Max.single-leaf weight 200kg
Max.single-leaf length 2M
Max.force 2200N
Max.piston stroke 32cm
Remote control distance 30m
Remote control mode Single/Four button mode
Storage battery (optional) DC24V(4.5Ah or 9Ah)
Noise ≤58dB
Recording of up remote controls 32pcs
Remote frequency 433.92 MHz
Working temperature -20°C - +70°C
Package weight 10kg
| Unit Model | SW200DC |
| Power Supply | AC220V/50Hz |
| Maximum Loading weight | 200kg/Leaf |
| Motor Power | DC24V/40W |
| Driving Method | Screw driving piston type |
| Limit switch | Stop block |
| Gate Moving Speed | 2cm/s |
| Max. Single-Leaf Length | 2m |
| Remote control Range | ≥30m |
| Recording of Up Remotes | 32 |
| Remote Frequency | 433.92MHz |
| Work Duty | S2 30min |
| Working Temperature | -20℃~70℃ |
DETAILED PRODUCT DESCRIPTION
MAIN FEATURES
1.Soft start slow stop, automatic close, obstacle detection by automatic reversng.
2.Interface for GSM, infrared sensor, alarm light, wall button.
3.Back up battery is available.
4.Works with solar panel.
5.Shell material is aluminum, arm is stainless steel.
6.Separate control unit, easy to install.
Installation Steps
Preparation Before Main Engine Installation
a) Before installing the door opener, please confirm the correct installation of the door to ensure that the door can be easily manually operated, and the door safety stopper can effectively prevent the door to continue moving.
b) Install the electric lock, the distance between the door bottom and ground should be 40-50mm. If not install the electric lock, the distance between door bottom and ground should be ≥20mm;
c) The main engine recommended mounting height is about 300 ~ 800mm from the ground, and make sure there are reliable fixed points for mounting brackets.
Cable
In order to ensure the normal operation of the door opener and protect the cable from damage, please use PVC pipe laying motor, power cable, and control cables, and separate two PVC pipes to lay (motor and power cable) and (control cable), respectively.
Mounting brackets
In order to install the main motors firmly, recommend to use the expansion screws to fix the mounting brackets.
