200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
  • 200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
  • 200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
  • 200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz
200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz

200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW200DC
Product Details
Motor Power:
40W
Maximum Loading Weight:
200kg/Leaf
Driving Method:
Screw Driving Piston Type
Limit Switch:
Stop Block
Gate Moving Speed:
2cm/s
Color:
Black
Highlight:

200kg / Leaf Swing Gate Motor

,

433.92MHz Swing Gate Motor

,

Screw Driving Swing Gate Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
200kg Per Leaf Swing Gate Motor - 2cm Per Second with Rolling Code 433.92MHz
The SW200DC swing gate opener is designed for single leaf gates weighing less than 200kg with a maximum length of 2 meters. Featuring planetary transmission combined with screw rod transmission, this motor must be installed inside an enclosure or yard for optimal protection.
Technical Specifications
Unit ModelSW200DC
Power SupplyAC220V/50Hz
Maximum Loading Weight200kg/Leaf
Motor PowerDC24V/40W
Driving MethodScrew driving piston type
Limit SwitchStop block
Gate Moving Speed2cm/s
Max. Single-Leaf Length2m
Remote Control Range≥30m
Recording of Up Remotes32
Remote Frequency433.92MHz
Work DutyS2 30min
Working Temperature-20℃~70℃
Product Features
  • DC Motor with backup battery support (DC24V 4.5AH/9.0AH)
  • Optional single/double gate mode configuration
  • No limit switch - stops upon obstacle detection with gate block
  • Automatic closing function with adjustable timing (0-99 seconds)
  • Slow start and stop for smooth operation without inertia
  • Manual release design for emergency situations
  • Alarm lamp, photo beam & safety beam interface compatibility
  • Access control system integration for automatic identification
Key Advantages
  • Soft start and slow stop with automatic obstacle detection and reversing
  • Interfaces for GSM, infrared sensor, alarm light, and wall button
  • Backup battery compatibility
  • Solar panel operation capability
  • Durable aluminum shell with stainless steel arm construction
  • Separate control unit for easy installation and maintenance

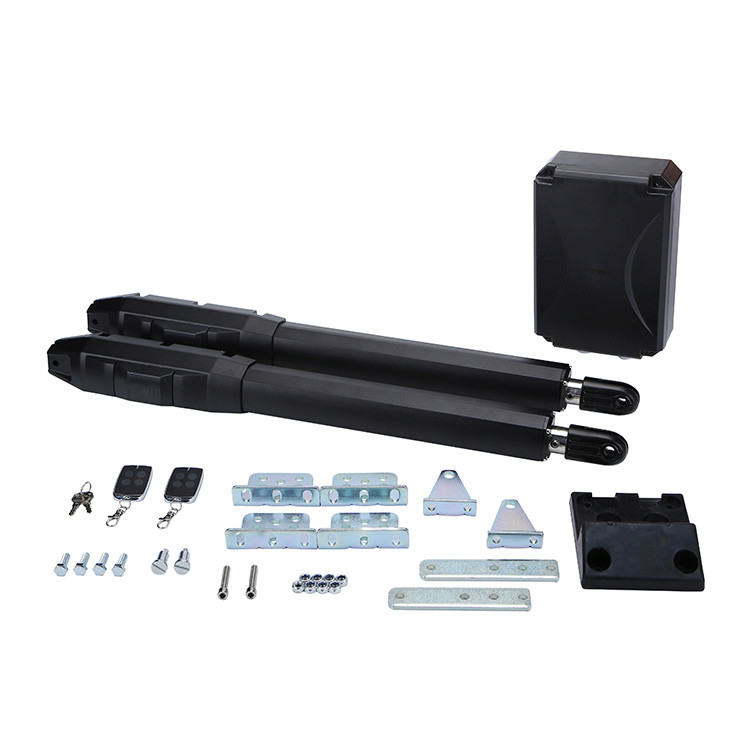

Standard Unit Components
  • Motor × 2 pieces
  • Control box × 1 piece
  • Control board × 1 piece
  • Remote control × 2 pieces
  • Manual release key × 1 piece
  • User manual × 1 piece
  • Complete mounting accessories
200kg / Leaf Swing Gate Motor 2cm Per Second Rolling Code 433.92MHz 0
Installation Guide
Preparation Before Main Engine Installation
a) Before installing the door opener, confirm proper gate installation to ensure smooth manual operation and effective safety stopper functionality.
b) For electric lock installation, maintain 40-50mm clearance between door bottom and ground. Without electric lock, clearance should be ≥20mm.
c) Recommended mounting height for main engine is 300-800mm from ground level with reliable fixed points for mounting brackets.
Cable Installation
Use separate PVC pipes for motor/power cables and control cables to ensure normal operation and protect against damage.
Mounting Brackets
For secure motor installation, use expansion screws to firmly fix mounting brackets in place.
