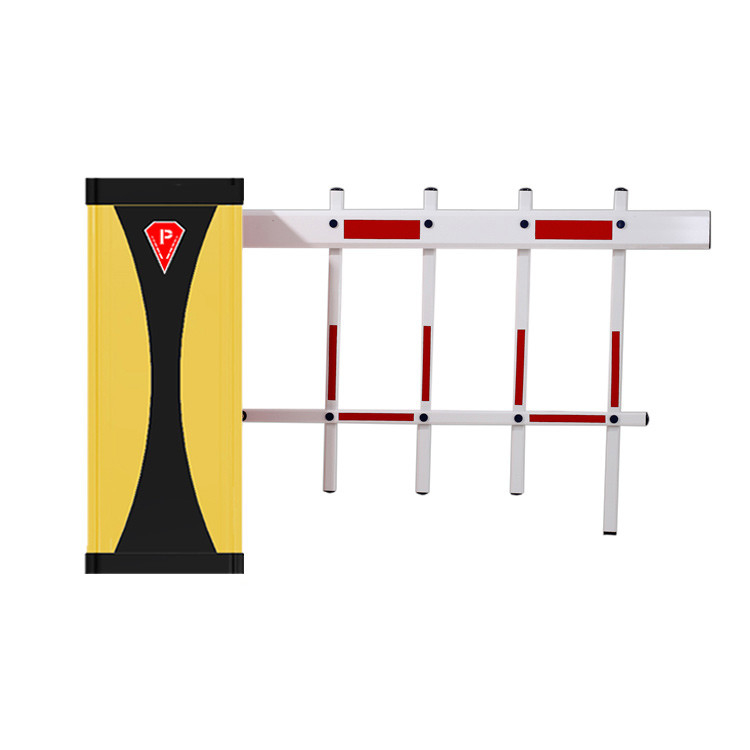

Automatic LED Boom Barrier Gate System Speed Adjustable For Car Parking System

Automatic Electratic Servo Motor Speed Adjustable Car Parking System LED Boom Barrier Gate System

GENERAL DESCRIPTION
SINOMATIC K10 DC brushless servo motor barrier gate, the newly design, maintenance with exclusive Micro-drive unit offers 100% more torque, 100% duty, are the fastest toll barrier gates available with an openning time as fast as 0.6 seconds. Opening speed is adjustable from 0.6s/0.9s to 6s or more.

This barrier redefines performance in non-stop toll applications. It's the ideal solution for very high frequented toll stations providing great reliability and sustainability as well as comprehensive functionality. This barrier use innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality and reliability for years to come.

PRODUCT SPECIFICATIONS


 MULTIPLE INTERFACES

* Wire Control Signal Input(open & close & stop)

*Infrared Photocells

*Loop Detector

* R&G Light signal (Up&Down Limit signal output optional),

*can use for counting purpose also

*Arm Presence Detection(Optional)

* RS485 Communication(Optional)

* More If Required

TECHNICIAL SPECIFICATIONS

PACKING DETAILS

ADVANTAGES FUNCTION AND FEATURES

1. NO SENSOR & LIMIT SWITCH

Innovative design which doesn’t need any sensor and limit switch.All control by Micro drive unit precisely. Four main parts only, mechanical, motor, control unit, power supply.

2. MAINTENENCE FREE

DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long term usage. And no other smaller parts need to be maintain too.

3. 24/7 CONTINUOUS OPERATION

With a very smooth and quiet motorized drive mechanism, Open and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.

4. SPEED ADJUSTABLE

Our DC servo barrier gate allows you to set opening and closing speed according to requirements. Shorter arm, the faster speed can be set.

5. EASY INTEGRATION

Access Reader or Push button or remote controller can be used to trigger the barrier gate to open via a simply dry contact signal. After delay timer elapsed, barrier gate will close automatically by itself in a certain time(optional function)

6. USER FRIENDLY

Motorized arms provide comfortable passage while maintaining a high level and high density of car flow management, such as in toll gate.

7. EASY INTEGRATION

Access Reader or Push button or remote controller can be used to trigger the barrier gate to open via a simply dry contact signal.After delay timer elapsed, barrier gate will close automatically by itself in a certain time(optional function)

8. AUTO-RECOVERY

When power off, barrier arm can be lifted up by manual for a freeexit. When power supply is restored, Barrier gate will automatically return to close position.

9. Auto Testing Mode

Control board can set auto testing mode

Boom horizontal and vertical fine adjustment
1 Horizontal adjustment: Power off first. And loosen the two screws on balance rotating arm a little but not totally loosed, then rotate barrier arm to
make the active swing arm to mechanical limit position. In this situation, keep the arm in horizontal status, and fasten the two screws on balance rotating arm.

2 Vertical adjustment
After the above1 finished, power on(make sure arm installed), after system started, press ‘UP’ button to check the vertical position. If not, please
follow menu settings to adjust DP10. For example, barrier arm not full 90 degrees open, increase the value of DP10. If open more than 90
degrees, decrease the value of DP10 too, setting details please refer to appendix VI.
