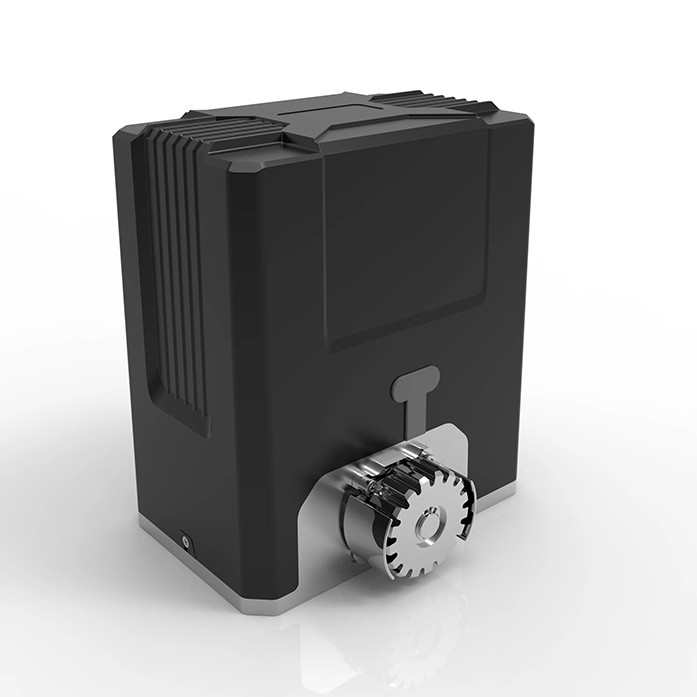

AC220V 110V Gear Drive Automatic Sliding Gate Opener / Sliding Gate Motor
PY500AC gate opener designed for commercial and industrial use, supporting gates up to 600 kg with operating distances up to 12 meters.
Technical Specifications
| Model | PY500AC |
| Power Supply | 220V/50Hz; 110V/60Hz |
| Max. Gate Weight | 600KG |
| Motor Power | 280W |
| Gate Moving Speed | 11-13 m/min |
| Limit Switch | Spring (mechanical) / magnetic |
| Recording of up Remotes | 20 pcs / 44 pcs |
| Decoding / Frequency | Rolling code / 433.92MHz |
| Work Duty | S2 20min |
| Noise | ≤58dB |
| Work Temperature | -20°C~70°C |
Main Features
- AC motor with built-in control unit
- Keypad / single button interface
- Alarm lamp, photo beam & safety beam interface
- User-selectable auto-close function
- Soft start and slow stop (Smart version)
- Auto-reverse function when hitting obstacle during closing (Smart version)
- Manual key release design for emergency purposes
Standard Unit Includes
- Gate Motor
- Control board & box
- 2 remote controls
- Manual release key
- User manual
- Bolts & nuts
Additional Functions & Features
- Oil lubrication, heavy-duty construction
- Compact structure, cost-effective design
- Built-in control board or separate control box options
- Optional spring limit switch and magnetic limit switch
- Automatic stop when hitting obstacle during opening
- Complete installation accessories
Optional Accessories
- Metal Gear Rack & Nylon Gear Rack (order according to gate length)
- Photo beam sensor
- Keypad systems
- Push button
- Warning light
About Our Company
SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen China, is a high-tech enterprise integrating R&D, production and sales. Our main product lines include: Pedestrian access control turnstiles, Vehicle barrier gates, hydraulic road bollards and blockers, and Automatic gate operators. Our products are widely used in places requiring access control, such as government facilities, military installations, schools, hospitals, airports, terminals, tourist attractions, and parking lots. We have exported our products to over 100 countries including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, and Kenya. We focus on stable function and excellent performance in product R&D, while offering affordable pricing to customers. Our goal is to establish win-win situations and long-term cooperation relationships with all customers and partners.
Important Safety Information
Instructions must be read before installation. Please follow these instructions carefully, as incorrect installation could affect gate operation. When mounting and positioning this product, ensure the power cable is unplugged. The motor cover will need to be removed to mount the motor to the mounting plate or directly to the concrete footing. Any changes to the settings on this product can only be made by a licensed electrician. This product is only powered by AC110V/220V power supply; DC backup battery or solar power is not compatible.
