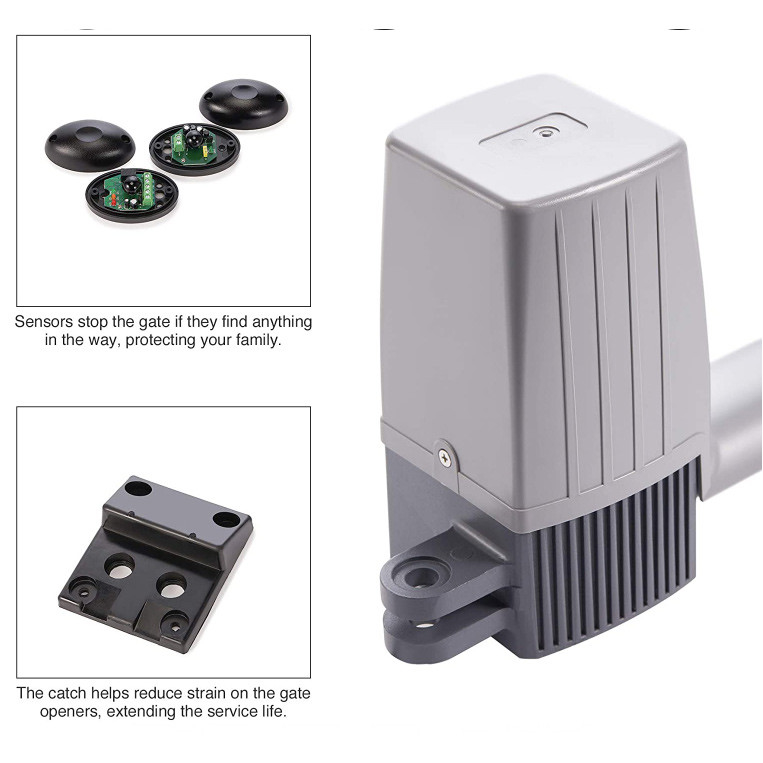

Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware
  • Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware
  • Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware
  • Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware
Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware

Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PK300DC
Product Details
Max Gate Weight:
300 KG
Max Gate Length:
2.5 Meters
Motor Power:
DC24V,80W
Limit Switch:
Stop Block
Max Force:
1500N
Package Weight:
16KG
Highlight:

Automatic Swing Double Gate Operators

,

80W Swing Double Gate Operators

,

2.5 Meters Swing Gate Operators

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware
Wifi Control Solar Kit Automatic Double Gate Operators Complete Hardware Kit for Swing Gates
Product Specifications
Unit Model PK300DC PK350DC
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 300KG / Leaf
Max. Gate Length 2.5 m / Leaf 3.0 m / Leaf
Motor Power DC24V,80W
Gate Moving Speed 20 second per 90 angle
Limit Switch Stop Block
Recording of up Remotes 25
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 30min
Noise ≤60dB
Work Temperature -20°C~70°C
Gross Weight 16 KG 19 KG
Product Features
  • Push rod 24V DC electronic swing arm gate opener
  • Soft start slow stop function
  • Obstacle detection in opening and closing
  • Automatic close function, time is adjustable
  • Over-current function meet European safety requirements
  • Safe design to prevent PCB burned for wrong wiring connection
  • Support GSM, solar system, photocell, alarm lamp, electronic lock
  • You can add up to 23 extra remotes that can control this system
  • In case of a power outage or an emergency you may also use manual release bar
Detailed Product Description
The PK300DC/PK350DC gate opener is designed for residential courtyard swing gate use, supporting gate leaf weight up to 300 Kg and width up to 2.5m/3m. Features DC motor, compact structure, smooth operation and low noise.
Key Capabilities
  • Optional stroke length: 29 cm and 49 cm
  • Separately control box
  • Keypad / single button interface
  • Alarm lamp, Photo beam & safety beam interface
  • User-selectable auto-close function
  • Mechanical stops inside opener eliminate ground stops
  • Adjustable fixing limit block
  • Manual key release design for emergency purposes
  • Automatic stop when hitting obstacle during opening
  • Auto-reverse when hitting obstacle during closing
Product Application
A variety of public access doors, campuses, factories, office buildings, shopping malls, parking lots, etc. Realize contactless automatic door opening and closing.
Installation Requirements
PK300DC/PK350DC swing gate opener is applicable to single leaf gate weight less than 300kg, and length of the single leaf swing gate should be less than 2.5m/3m. The drive mode adopts the worm and worm gear to combine the screw rod transmission. This gate opener must be installed inside the enclosure or yard for protection.
Installation Steps
Preparation Before Main Engine Installation:
  • Confirm correct installation of the door to ensure easy manual operation
  • Ensure door safety stopper effectively prevents door from continuing movement
  • Install electric lock with 40-50mm distance between door bottom and ground
  • Without electric lock, maintain ≥20mm distance between door bottom and ground
  • Main engine mounting height: 300-800mm from ground
  • Ensure reliable fixed points for mounting brackets
Cable Installation
Use PVC pipe for motor, power cable, and control cables. Separate two PVC pipes for (motor and power cable) and (control cable) respectively.
Mounting Brackets
Use expansion screws to fix mounting brackets for secure installation.
Automatic Swing Double Gate Operators Wifi Control Solar Kit Complete Hardware 0
For more details, please refer to the attached user manual:
PK300DC PK350DC User Manual (IDE200).pdf
Support & Warranty
Warranty: 1 year
After-sale Service: Online technical support, Onsite Installation, Free spare parts, Other
Project Solution Capability: total solution for projects, Others
Application: Villa
