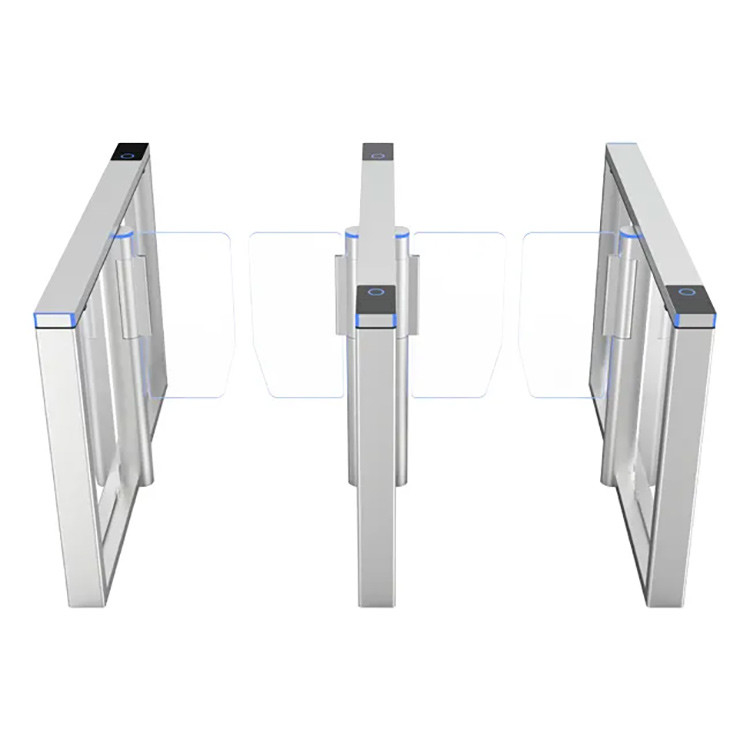

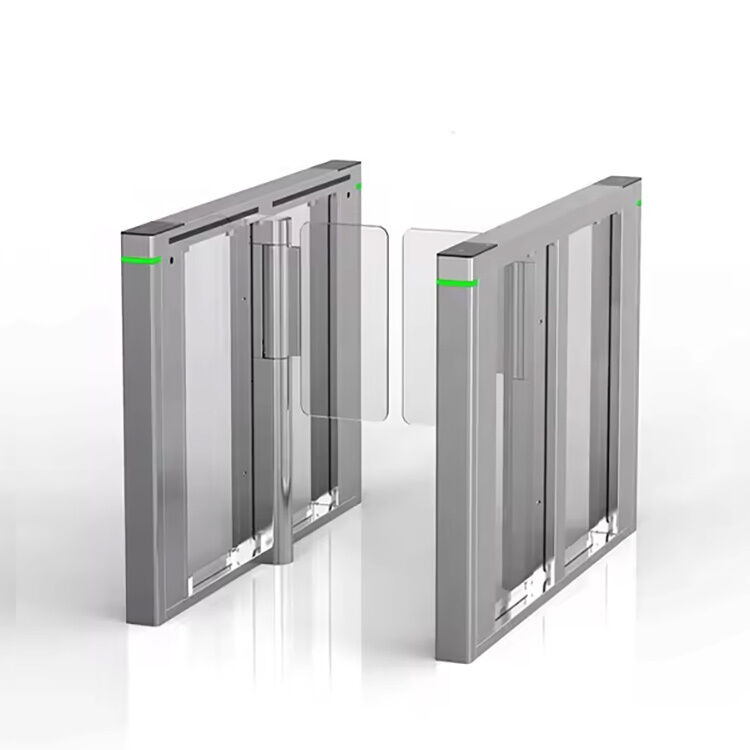

7-inch Touch Screen High Speed Gate Turnstile with Face Recognition RFID QR Code Reader
Aluminum Alloy Stainless Steel Luxury High Speed Gate Turnstile with advanced access control technology.
Product Overview
SINOMATIC speed gate turnstile features high-quality DC brushless/servo motor configuration and advanced control system for precise control, stable performance, and maintenance-free operation.
This stainless steel swing turnstile combines innovative design with high quality and fast controlling for entry and exit management. Compatible with RFID, barcode, fingerprint, or facial verification devices. Data transfers via TCP/IP or RS-485 communication protocols.
Ideal for managing people's entry and exit in schools, offices, gyms, residential buildings, supermarkets, and various other facilities.
Applications
As a high-performance barrier turnstile gate, the high speed gate can be deployed in multiple locations including office buildings, libraries, airports, and other facilities requiring secure access control.
The swing barrier gate is designed to handle high volume and demanding conditions while maintaining an attractive appearance. The compact design facilitates multiple lane setups, with various shapes and colors available to match your lobby design or branding requirements.
Technical Specifications
| Material | SS304, Acrylic |
| Finishing | Light wire drawing |
| Barrier Material | Acrylic (clear or with color) |
| Input Voltage | AC100V~240V, DC24V |
| MCBF | 5 Million/time |
| Traffic Speed | 30~40 Persons/min |
| Flap Opening/Closing Time | Adjustable |
| Maximum Passage Width | 500-1000mm |
| Control Signal | Relay switch signal/Dry contact signal |
| Swing Arm Drive Angle | 180 degree |
| Communication interface | RS485, TCP/IP |
| Drive Motor | DC brushless motor |
| Running Mode | Full-auto |
| Pass | Uni-/Bi-direction pass adjustable |
| IP Grade | IP65 |
| Dimension | L1200*W180*H1000mm |
| Operating Humidity | ≤90% |
| Operating Temperature | -40℃~+70℃ |
| Working Environment | Indoor and outdoor (with a tent over) |
Optional & Customized Functions
- Alternative Materials, Finished and Custom Design
- LED Counter function
- Audio and visual alarm for invalid entry/exit and tailgating
- Remote Controlled Button
- Extra add sensors transmitter and receiver type
- Infrared sensors reset function
- Access Control System Integration
- Camera System Integration
- Thermostat System Integration
- Card Reader mounting options: surface mounted or flush mounted
- Stroboscopic alarm light prompt function for fast failure identification
Main Features
- DC brush-less motor supporting at least 5 million normal passages
- Multiple pairs of infrared detection sensors with anti-tailing tracking control technology
- Integrated voice module with customizable broadcast content
- LED indicators for traffic direction and status display
- Anti-shock function with automatic door wing locking during intrusion
- Self-test, self-diagnosis, and automatic alarm functions including illegal intrusion, reverse intrusion, and trailing alarms
- Automatic reset function with configurable transit time
- Flexible configuration of access status (controlled, free traffic, no traffic)
- Memory mode for continuous and fast traffic
- Standard electrical interface for integration with various readers and writers
- Passenger counting with LED display (Optional)
- Direction display for passenger guidance
- Card-reading with or without memory function
- Population control through access controller software
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor, maintenance-free operation throughout product life, no attrition, low noise, and high intelligence.
What is your flap gates opening and closing time?
≤ 0.4 seconds
What is the Swing barrier gate working environment?
Suitable for both indoor and outdoor use (with shelter protection).
Can I customize it?
Yes, we welcome customization requests. As the manufacturer, we support OEM arrangements.
What's your warranty?
1-year time warranty.
