RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet
  • RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet
  • RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet
  • RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet
  • RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet
RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet

RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG02
Product Details
Barrier Material:
Acrylic (color Optional)
Normal Running Life:
＞ 5 Million Times
Motor:
24V/40W DC Motor
Passage Width:
500mm To 1000mm
Cabinet Material:
SS304/SS316/Mild Steel With Painting
Warning Light:
RGB
Highlight:

RBG Warning Light Swing Barrier Gate

,

304 Stainless Steel Swing Barrier Gate

,

500mm Cabinet Speed Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
Supply Ability
500 pcs per month
Product Description

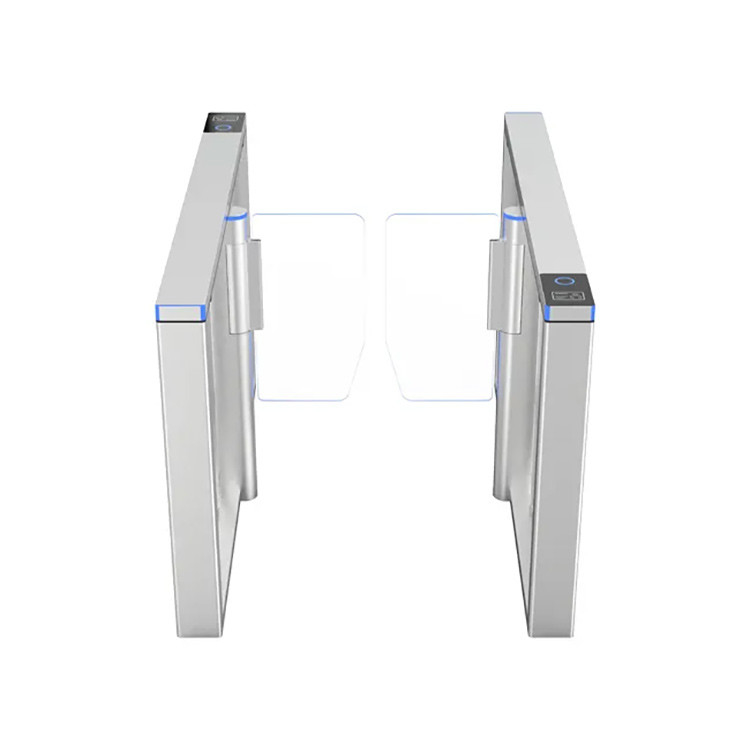

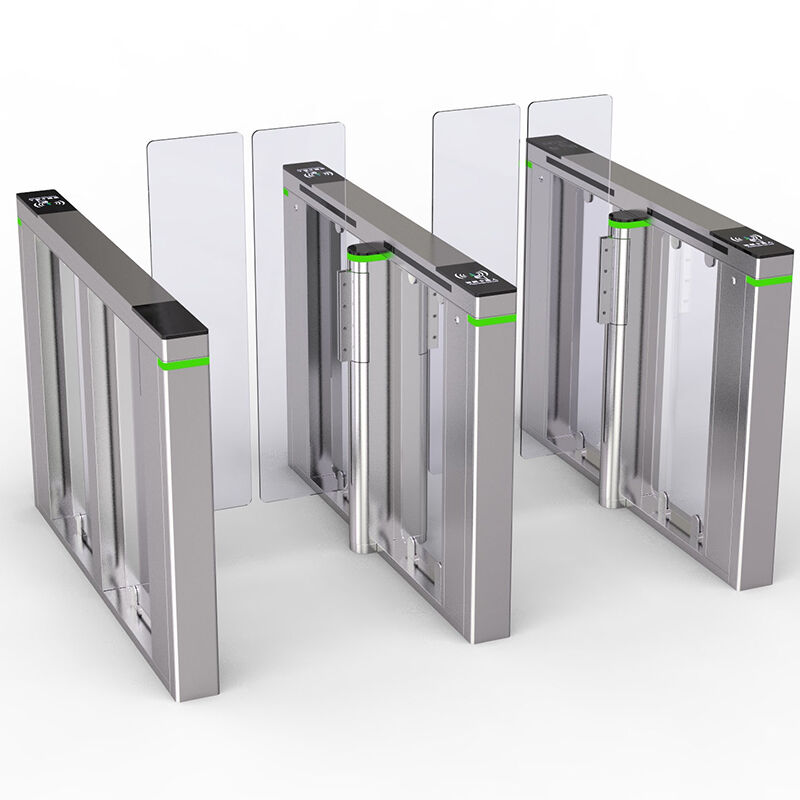

RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet
Product Overview
SINOMATIC speed gate turnstile features high-quality DC brushless/servo motor configuration and advanced control system for precise control, stable performance, and maintenance-free operation.
This stainless steel swing turnstile offers innovative design, superior quality, and fast control for entry and exit management. Compatible with RFID, barcode, fingerprint, or facial verification devices. Data transmission via TCP/IP or RS-485.
Ideal for managing personnel entry and exit in schools, offices, gyms, residential buildings, supermarkets, and various facilities.
Technical Specifications
Specification Details
Material SS304, Acrylic
Finishing Light wire drawing
Barrier Material Acrylic glass
Input Voltage AC100V~240V, DC24V
MCBF 5 Million/time
Traffic Speed 30~40 Persons/min
Flap Opening/Closing Time Adjustable
Maximum Passage Width 500-1000mm
Control Signal Relay switch signal/Dry contact signal
Swing Arm Drive Angle 180 degree
Communication interface RS485, TCP/IP
Drive Motor DC brushless motor
Running Mode Full-auto
Pass Uni-/Bi-direction pass adjustable
IP Grade IP65
Dimension L1200*W180*H1000mm
Operating Humidity ≤90%
Operating Temperature -40℃~+70℃
Working Environment Indoor and outdoor (with a tent over)
Optional & Customized Functions
Feature Description
Alternative Materials & Finishes Custom design options available
LED Counter Function Usage tracking and counting
Audio and Visual Alarm Alerts for invalid entry, exit, and tailgating
Remote Controlled Button Wireless control capability
Extra Sensors Transmitter and receiver type sensors
Infrared Sensors Reset Automatic reset functionality
System Integration Access control, camera, and thermostat systems
Card Reader Mounting Surface or flush mounting options
Stroboscopic Alarm Light Quick identification of failure units for administrators
Main Functions and Features
  • DC brushless motor supporting at least 5 million normal passages
  • Multiple infrared detection sensors with anti-tailing tracking control technology
  • Integrated voice module with customizable broadcast content
  • LED indicators for traffic direction and status display
  • Anti-shock function with automatic door wing locking during intrusion
  • Self-test, self-diagnosis, and automatic alarm functions
  • Automatic reset function for unused permissions
  • Flexible configuration of access status (controlled, free traffic, no traffic)
  • Memory mode for continuous and fast traffic flow
RBG Warning Light Swing Barrier Gate High Speed 304 Stainless Steel Square Cabinet 0
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor, no maintenance throughout life, no attrition, low noise, high intelligence.
What is your flap gate's opening and closing time?
≤0.4 seconds
What is the swing barrier gate working environment?
They can be used indoor and outdoor (with shelter)
Can I customize it?
Yes, welcome. We are the manufacturer and welcome OEM orders.
What's your warranty?
1 year time warranty.
